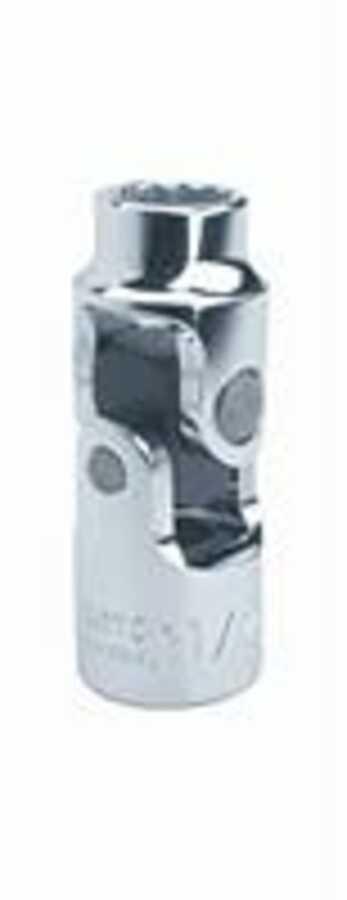

1/2" Drive 5/8" 12-Point Universal Hand Socket

Stanley Proto Industrial Tools | 1/2" Drive 5/8" 12-Point Universal Hand Socket | J5477A | J5477A - 1/2" Drive 5/8" 12-Point Universal Hand Socket

Features and Benefits

  • Replaces J5477.
  • Employs a pin system (versus screw) which connects the central block to the driving end and open end upgrading overall performance.
  • Universal sockets permit turning at an angle up to 65° where obstructions may prevent a straight application.
  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Applications

  • Automotive
  • Industrial
  • Construction
  • MRO

Benefits

  • High performance drive configuration
  • Quick and easy socket engagement
  • Minimizes fastener rounding
  • Extends fastener life
  • Minimizes slippage

Specifications

  • Weight: 0.27 lbs, 0.12 kilos
  • Bolt Clearance Depth (E): 1/2"
  • Drive End Outside Diameter (C): 15/16"
  • Drive Type: 1/2"
  • Nut End Hex Depth (D): 29/64"
  • Nut End Outside Diameter (B): 15/16"
  • Socket Length (L): 2-21/32"
  • Socket Size: 5/8"
  • Socket Type: 12-Point
  • Specifications: ASME: ASME B107.1
    AS: AS954E S3.8.1

Warranty

  • Standard 1-year warranty

Stanley Proto Industrial Tools PO J5477A - 1/2" Drive 5/8" 12-Point Universal Hand Socket POJ5477A

Usually In Stock
Usually ships in 24-48 hours
Manufacturer Direct

$44.18
