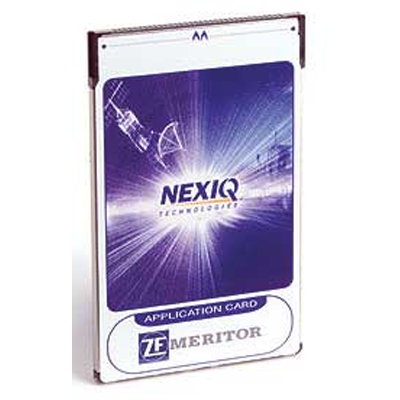

Application Card for Meritor Wabco ABS w/ PLC

The Meritor WABCO application software provides the technician with functions necessary to service the tractor and trailer ABS brake systems. To address advanced capabilities provided by Meritor WABCO, the MPC uses PCMCIA cards. The card is plugged into the back of the unit, and provides additional functions unique to Meritor WABCO. The following list contains all of the features and functions available with this card.

For use on the MPC, Pro-Link Plus and Pro-Link Graphiq.

Systems Covered:

• Meritor WABCO non-D
• D and E Tractor ABS
• Easy-Stop and Enhanced Easy-Stop trailer ABS

Features:

• Diagnostic data list.
• PLC test application.
• Read and clear fault codes.
• Component tests.
• Vehicle voltages.
• ABS valves.
• ATC valves.
• ABS/ATC lamps.
• Sensors
• Engine data link
• Retarder relay
• Retarder data link
• System setup

Includes:

• Application Card
• Manual

Power Line Carrier (PLC) Test Application* for Trailer ABS

• Effective March 2001, a Federal Government mandate required that heavy-duty trucks have an in-cab trailer ABS warning lamp. Using a new SAE standard called PLC communication, the change requires trailer ABS ECU's to communicate with the tractor ECU via the J560 power line to activate the warning lamp.
• Test tractor and trailer coupled or trailer independently for MID messages.

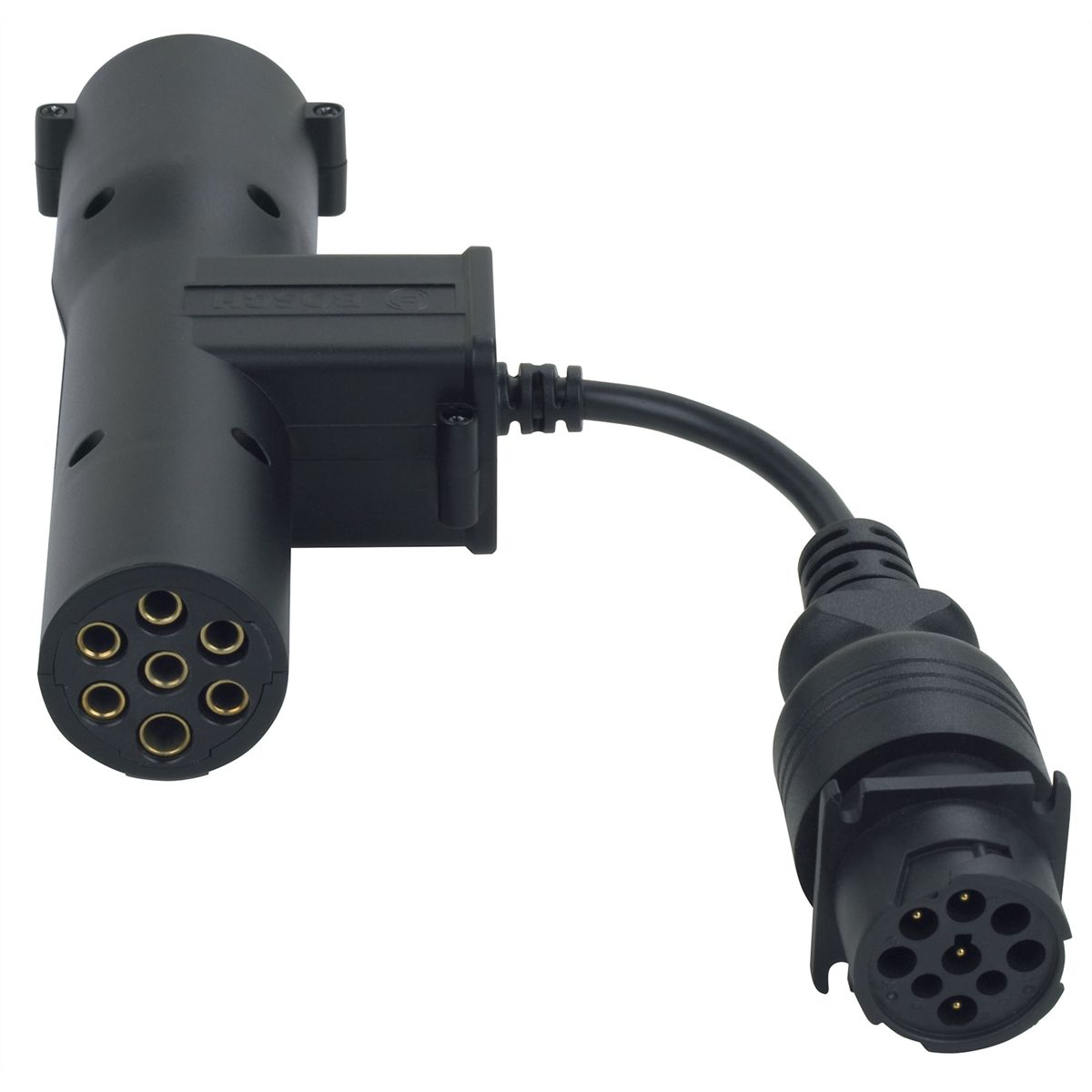

  *PLC testing requires NEXIQ PLC Converter Kit (PN 601020) sold separately
• Toggle in-cab trailer ABS warning lamp ON/OFF to confirm operation. Verify trailer ABS ECU for MID 10 and MID 11 messages.

Tractor ABS "D" and "E" Diagnostic Support

• ABS trailer lamp (PLC)
• ABS valves
• ABS/ATC lamps
• ATC valves
• Component tests
• Engine data link
• Read and clear fault codes
• Retarder data link
• Retarder relay
• Sensors
• System information
• System setup
• Tire calibration
• Vehicle voltages

Trailer - Easy Stop and Enhance Easy Stop

• ABS valves
• Component tests
• Program ID
• Read and clear fault codes
• Sensors
• Service info (V300 Series)
• System setup
• Tire calibration (V300 Series)
• Trailer voltages

This item may not be in stock; please email service@toolsource.com for lead time.

Nexiq 804014 Application card for Meritor Wabco ABS w/ PLC
