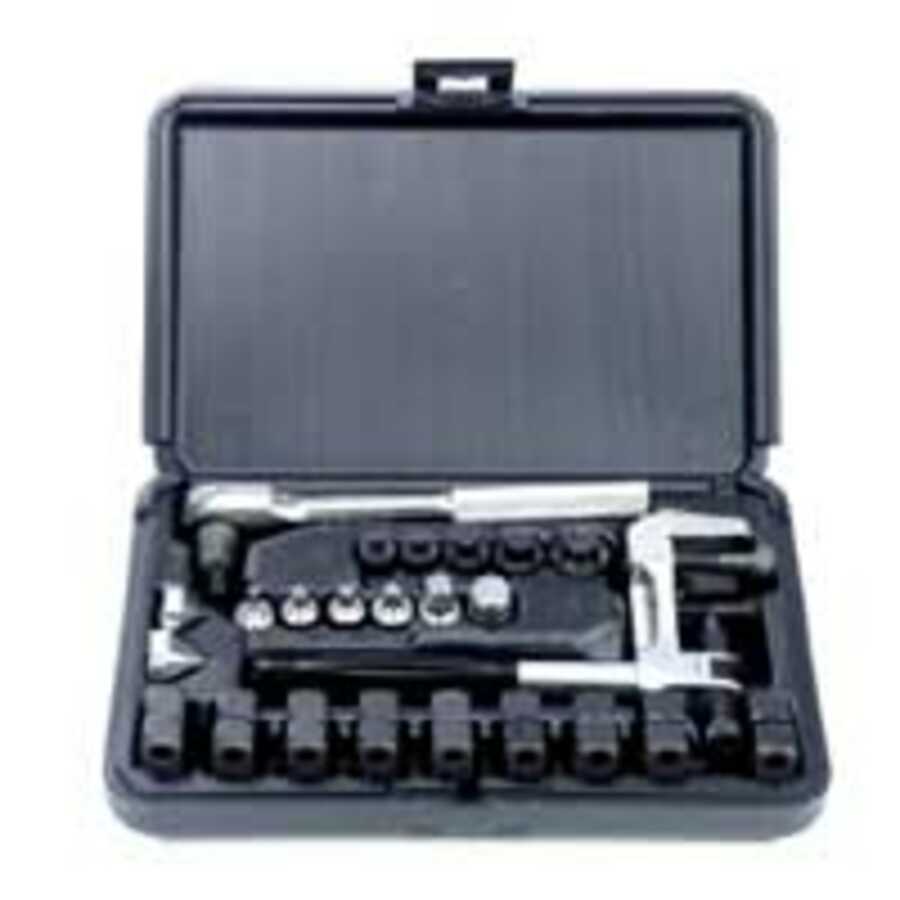

FlarePro Four-In-One Flaring & Swaging Tool

• For copper, aluminum, steel, stainless steel and other metal tubing.
Individual size jaw sets are used for positive clamping compactness and operating convenience.
• Socket head screws are provided for clamping the jaws to the yoke and feeding the tube forming components. The screws are hand turned for all free travel movement when advancing or retracting.
• A hex socket and 3/8" square drive ratchet are furnished for easy operation of the threaded members under load. Tube forming components (flaring cones, double flaring adapters and swaging adapters) are retained on the feed screw by a ball detent mechanism and can be snapped on and off for quick change as required.
• The tool is designed to permit hand held or vise mounted operation. Wt. 7.0 lbs.
• Flaring - 37 degree and 45 degree: Flares soft copper, brass, aluminum, steel and stainless steel in nine tube sizes: 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8" and 3/4" O.D. tubing.
• Double Flaring - 45 degree Only: Double flares soft copper, aluminum and steel (Bundy or G.M. to .035 wall) in seven tube sizes: 3/16", 1/4", 5/16", 3/8", 1/2", 5/8" and 3/4" O.D. tubing.
• Swaging: Swages soft copper, aluminum and brass in seven tube sizes: 3/16", 1/4", 5/16", 3/8", 1/2", 5/8" and 3/4" O.D. tubing.
• Drop-ship direct from manufacturer.

Imperial 2000-FS FlarePro® Four-In-One Flaring & Swaging Tool
