What is an A/C flaring tool used for?

A/C flaring tools are specialized tools used to create a flared end on metal tubing, typically copper or aluminum. This flared end provides a secure, leak-proof connection when joined to other components with a threaded fitting. In automotive A/C systems, flaring is essential for connecting refrigerant lines to components like evaporators, condensers, and compressors. A proper flare ensures a tight seal that can withstand the high pressures and temperature fluctuations within the A/C system.

What's the difference between a 45-degree flare and a double flare?

A 45-degree flare creates a single, outward flare on the end of the tubing. A double flare, on the other hand, folds the tubing back on itself before creating the flare. Double flares are generally stronger and more resistant to cracking or leaks, especially in high-pressure systems or when working with harder metals. Some applications, like brake lines or certain A/C connections, specifically require a double flare for enhanced reliability. Mastercool offers adapters like the 3/16" 45° & Double Flaring Adapter Tool for creating both types of flares.

What size flare do I need for my A/C lines?

The correct flare size depends on the specific fittings and tubing used in your A/C system. A/C systems often use standard SAE flare sizes. Always consult your vehicle's service manual or the component manufacturer's specifications to determine the exact flare size required. Using the wrong size can lead to leaks or damage to the fittings. Adapters like the CPS Products R410A Adapter can help with transitioning between different fitting sizes.

Can I use a standard brake flaring tool for A/C lines?

While some brake flaring tools might appear similar, it's generally not recommended to use them interchangeably with A/C flaring tools. Brake lines often require double flares, while A/C lines might use single or double flares depending on the application. The dies and adapters in a brake flaring kit may not be the correct angle or size for A/C tubing. Using the wrong tool can result in an improperly formed flare, leading to leaks or component failure. Always use a flaring tool specifically designed for A/C lines to ensure a proper seal.

What are some common mistakes to avoid when flaring A/C lines?

Several common mistakes can compromise the quality of a flared connection. Not properly deburring the inside and outside of the cut tubing can leave sharp edges that cause leaks. Over-tightening the flare nut can also damage the flare. Ensure the tubing is properly aligned in the flaring tool before creating the flare. Always inspect the finished flare for cracks, imperfections, or unevenness. If you're unsure, it's best to cut the tubing and start over to ensure a reliable connection.

What type of tubing is compatible with A/C flaring tools?

A/C flaring tools are primarily designed for use with soft, malleable tubing such as copper, aluminum, and sometimes soft steel. The specific type of tubing your A/C system uses will dictate the correct flaring procedure and whether a single or double flare is required. Always verify that the tubing material is compatible with the flaring tool and the fittings you are using. Attempting to flare hardened steel or other rigid materials can damage the tool and result in an unusable flare.

Are there specific A/C flaring tools for metric tubing?

Yes, some A/C systems, particularly those in import vehicles, may use metric-sized tubing. While some flaring tools can accommodate both SAE and metric sizes, it's essential to ensure the tool you're using is compatible with the specific tubing size. Using an incorrectly sized flaring tool on metric tubing can result in a poorly formed flare that leaks. Always double-check the tool's specifications and use the correct adapters or dies for the metric tubing size.

Search

Manufacturers [more]

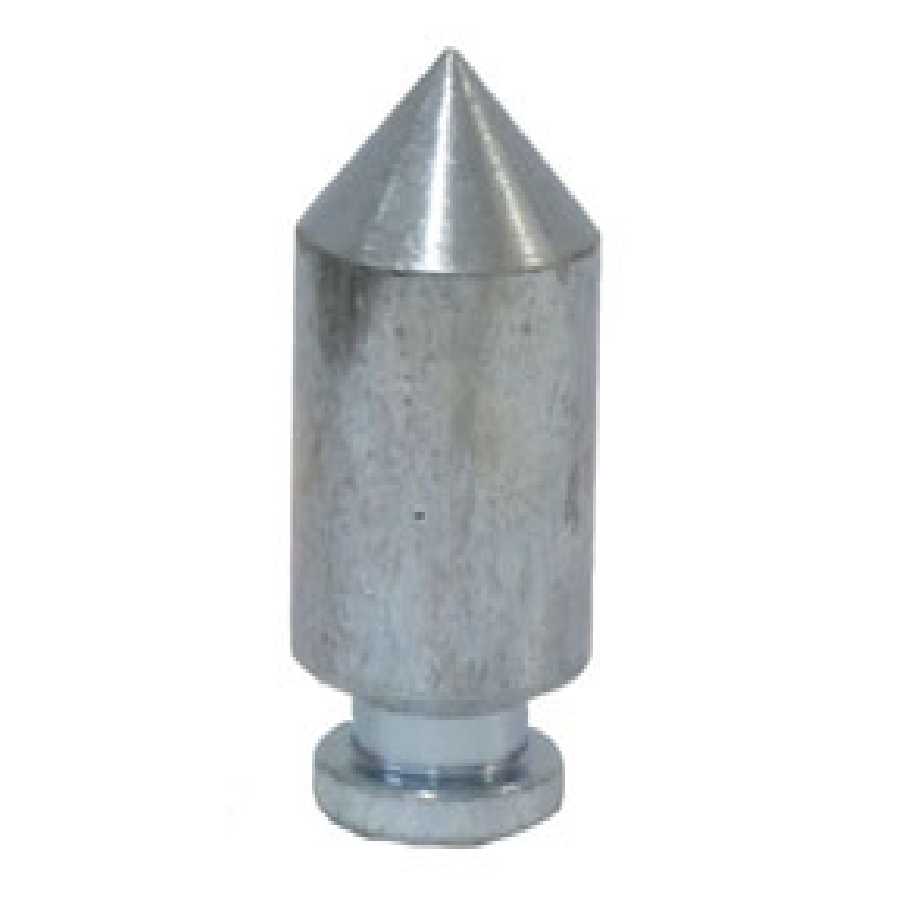

Mastercool | 71098-16 | Mastercool 71098-16 3/8" Double Flare Die Set

Name: Mastercool 71098-16 3/8" Double Flare Die Set
Brand: Mastercool
SKU: 104268
Price: 20.6 USD
Availability: InStock
Rating: 3 (1 reviews)
