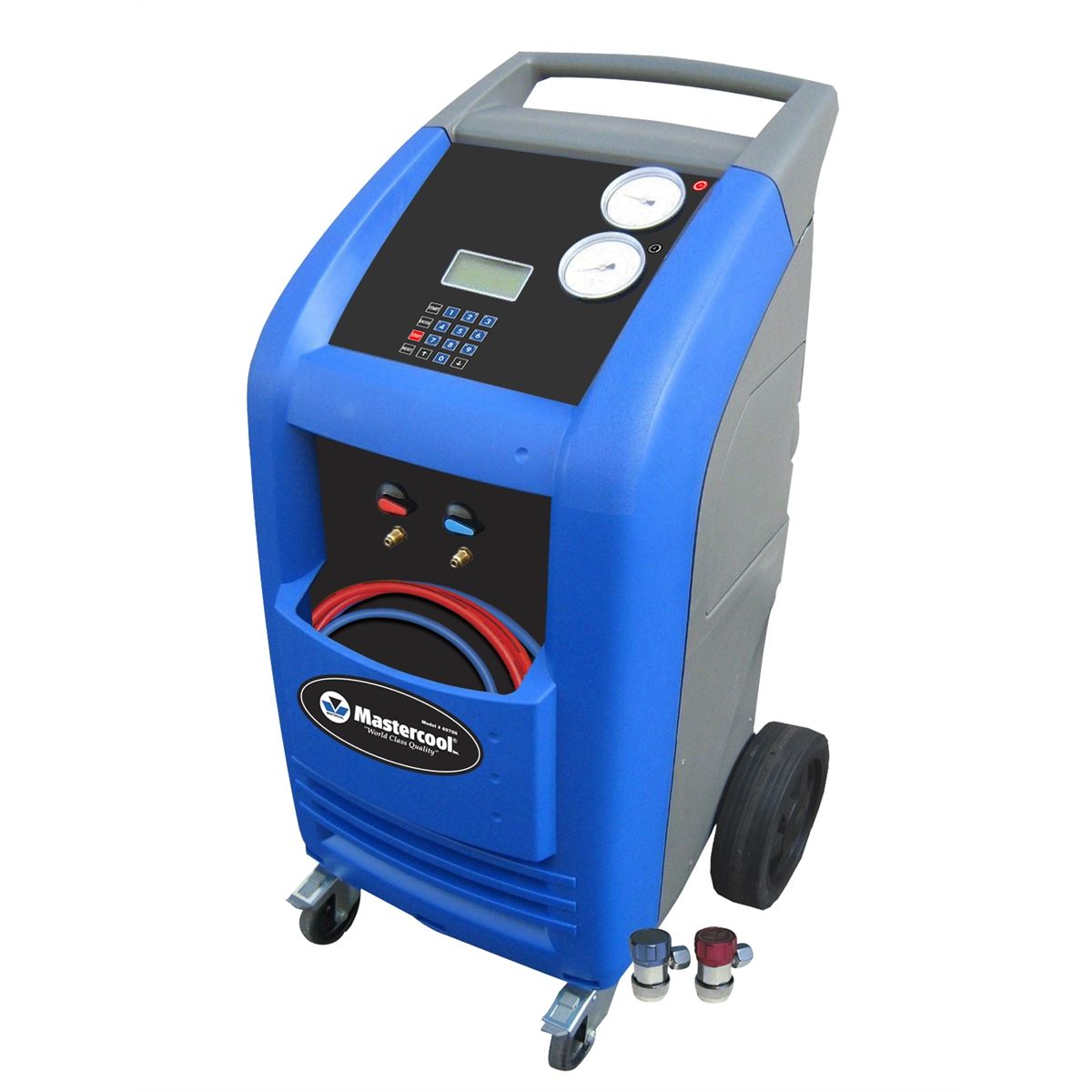

Automatic R134a Recovery, Recycle and Recharge Machine

  • Quality performance year after year
  • Large Display: 4.8" (w) x 1.7" (h) (122mm (w) x 42mm (h)
  • Design Certified for Compliance with SAE J2788 - New A/C systems are smaller. Machines must charge within .5 oz and recover 95% of the refrigerant.
  • Automatic/Programmable or Manual - The 69788-A can be programmed to complete a continuous recovery/recycle, vacuum, vacuum leak test and recharge. The machine can also be set to run each operation individually.
  • Includes Refrigerant Capacity Database (over 1000 vehicles) - Includes refrigerant capacities for US and Import makes and models from 1995 to 2012. The 69788-A is capable of software upgrades as well.
  • Auto Vacuum Leak Test - Can be programmed to perform a vacuum leak test and will inform the technician of possible leaks.
  • Auto Oil Discharge - Oil is automatically discharged during the recovery process. If oil is present, it will drain into a graduated container clearly displaying the amount of oil that was removed.
  • Auto Air Purge - Automatically purges non-condensable gas (NCG) from the storage tank during recovery.
  • Auto Filter Alarm - The machine's LCD and alarm will warn that a filter change is required.
  • Compact Footprint - The machine's compact design makes it easy to maneuver and requires minimal shop space.
  • Full Tank Alarm - Notifies operator when tank is full.
  • Low Refrigerant Alarm - Notifies operator when refrigerant is low.
Specifications:
  • Type of Refrigerant: R134a
  • Service Procedure: Automatic/Programmable or Manual
  • Voltage: 115 V / 60 Hz
  • Scale Resolution: .02 lb (10g)
  • Working Temperature: 59/120° (11/49°)
  • Filter System: 2 filters for humidity
  • Vacuum Pump: 6 CFM (100 litre/min)
  • Compressor: Hermetically sealed, 12cc, high pressure
  • Recovery Cylinder: Internally mounted 30 lb. DOT tank
  • Hoses: 96" (250cm)
  • Couplers: Manual
  • Bottle Temperature Sensor: Integrated
  • Bottle Heater: Standard Equipment
  • Dimensions: 40.25" (h) x 22.75" (w) x 20" (d) (102 x 58 x 51 cm)
  • Weight: 157 lbs (71 kg)
FREE FREIGHT* Applies to direct shipping points within the 48 continental US states. Rural Area Surcharge may apply.
  • *An additional $40.00 will apply to all residential deliveries of heavy-equipment.
  • *For lift-gate service, add $135.00.
Mastercool 69788-A Automatic R134a Recovery, Recycle and Recharge Machine
  • Mastercool
    Other products
    Mastercool Homepage
  • Model: 146626
  • Shipping Weight: 187lbs
  • Manufacturers Part #: 69788-A
  • Manufactured by: Mastercool
  • Also Known As: MSC69788-A, ML69788-A, MSC-69788-A

Usually In Stock
Usually ships in 24-48 hours
Manufacturer Direct

$5,368.99
