Cool Tech R-134a Recovery, Recycling, Evacuation, and Recharging

Voltage: 220-240V 50/60Hz SPX will only drop ship (USA) if this unit is for export.

Fully automatic function lets you recover, vacuum, leak test, charge, and then walk away.

Fully compliant with SAE J2788 Standards.

Combines simple operation with superior accuracy. The Robinair 34788-I recovers, recycles, evacuates, leak tests, and recharges R-134a quickly and accurately. Automatic operation means less attention is needed!

• Automatic Function -- With this new option, you can program the unit to recover, vacuum, leak test, charge, and then walk away without having to operate panel valves.
• Vacuum Leak Test -- Will monitor the vacuum level after an evacuation, and inform the technician of a possible leak in the vehicle's A/C system.
• Automatic Refrigerant Refill -- With this latest advance, you never have to stop in the middle of a job to change refrigerant tanks. The unit maintains a user selectable amount of refrigerant in an internal vessel, and signals when it's time to change the supply tank, so no monitoring is required.
• Automatic Air Purge -- Eliminates damaging air without any monitoring of gauges or opening of valves.
• Automatic Oil Drain -- The unit automatically drains system oil captured during recovery, and the display reminds you to empty the bottle. Graduations on the container clearly show you how much oil needs to be replaced.
• Refrigerant Charging -- Has never been this easy. Select a charge mode from either the high side, low side, or both. Accuracy features eliminate guesswork!
• Refrigerant Management Systems --New and improved, system displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains.
• Vacuum Function -- Defaults to 15 minutes, but is programmable up to 99 minutes. Remaining vacuum time is displayed on the screen.

Specifications:

• Voltage: 220-240V 50/60Hz
• Refrigerant Container On-board: 14 kg vessel (source tank not included)
• Operating Range: 50? to 120° (11? to 49°)
• Recycling Filter-Drier: 43 cu. in. spin-on type
• Pump Free Air Displacement: 1.5 cfm (35 L/min)
• Dimensions: 44" H x 34" W x 23" D (127 cm x 86.4 cm x 58.4 cm)
• Shipping Weight: 235 lbs. (106.6 kg)

$85 standard freight fee. Applies to direct shipping points within the 48 continental US states. Rural Area Surcharge may apply.

• *An additional $40.00 will apply to all residential deliveries of heavy-equipment.
• *For lift-gate service, add $135.00.

Non-stock item, Manufacturer drop ship; please email service@toolsource.com for cost and lead time.

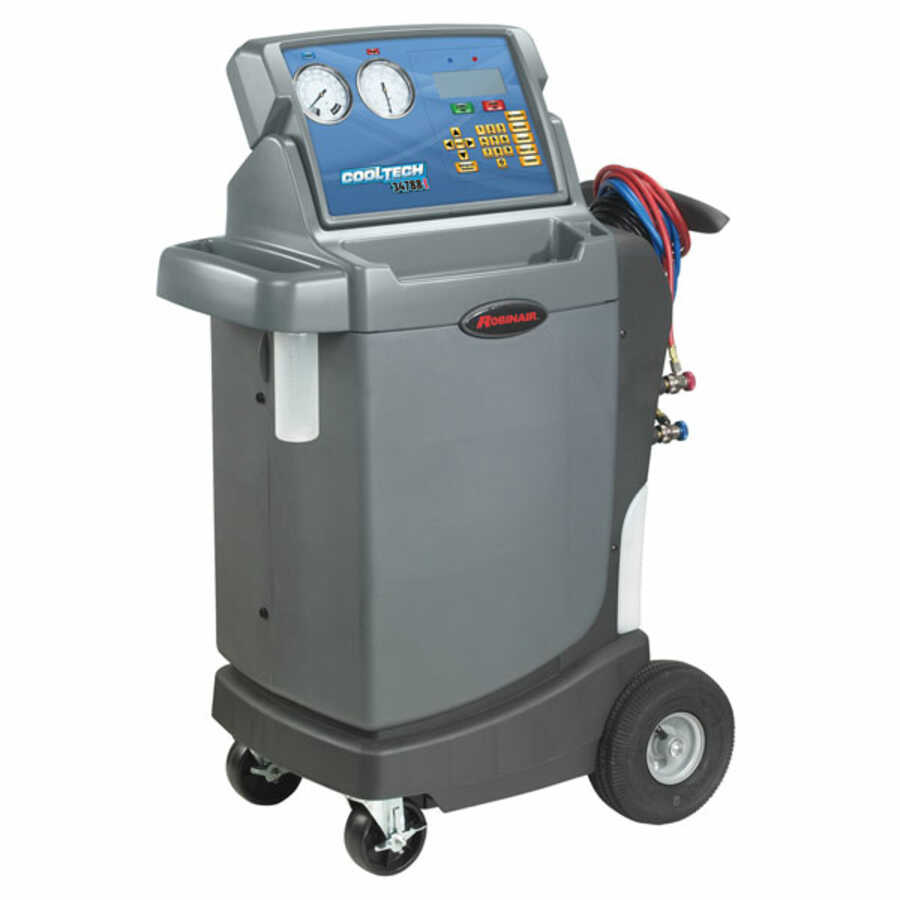

Robinair 34788-I Cool Tech R-134a Recovery, Recycling, Evacuation, and Recharging Station
