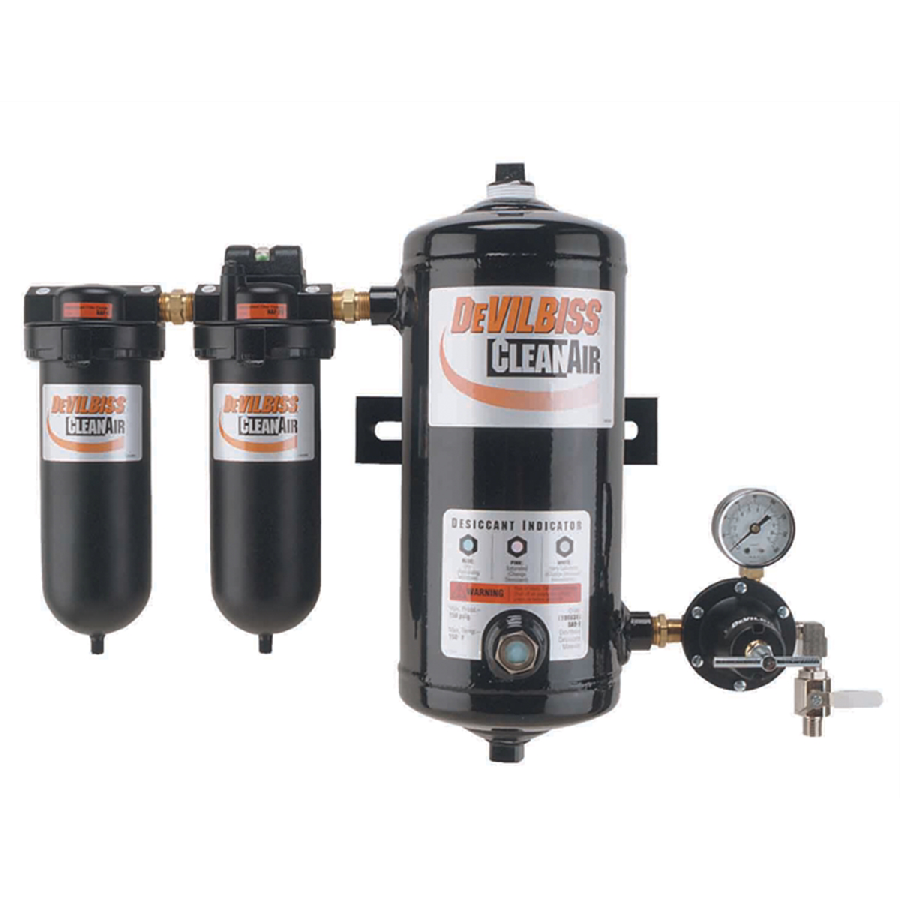

DAD-500 Clean Air Desiccant Air Drying System

The Ultimate Airline Filtration of Dirt, Oil and Water

• Eliminates costly re-do`s due to moisture and dirt in the air line - three-stage drying and filtering system.
• First stage centrifugal filter removes oil, water, and dirt down to 5 microns.
• Second stage coalescer filter removes oil aerosols and dirt particles down to 0.1 microns.
• Third stage uses low-dusting desiccant to trap water vapor.
• 25 CFM capacity.
• Maintenance-free operation - first and second stages feature automatic bowl drain.
• Eliminates guesswork - filter change indicators for coalescer and desiccant.
• Easy Maintenance -Order 130030 (DAD-600) Tuneup Kit- Includes desiccant refill, first stage filter, and Whirlwind filter.
• Includes built-in wall mounting bracket and HAF-507 Whirlwind disposable final filter.
• Air Inlet: 1/2" NPT (F)
• Air Outlet: 1/2" NPT (F)
• Air Flow Capacity: 25 CFM
• Maximum Operating Pressure: 150 PSI

DeVilbiss DAD-500 Clean Air Desiccant Air Drying System
