Air Couplers and Fittings

Air Couplers and Fittings: Essential Components for Pneumatic Tools

Air couplers and fittings are vital components in pneumatic systems, connecting air hoses to pneumatic tools and equipment. These components ensure a secure and efficient flow of compressed air, enabling mechanics to perform various tasks with precision and power.

Air couplers are typically located at the end of an air hose, providing a connection point for pneumatic tools. They are available in various styles, including quick-connect couplers, threaded couplers, and push-to-connect couplers, each with its own advantages and applications. Air fittings, on the other hand, are used to connect different components within a pneumatic system, such as hoses, valves, and filters. They come in a variety of shapes and sizes, including elbows, tees, and reducers.

Types of Air Couplers and Fittings

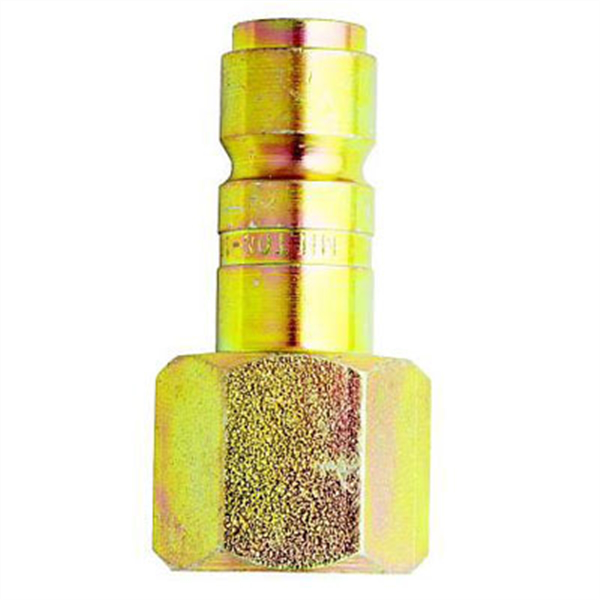

• Quick-Connect Couplers: These couplers offer a fast and easy way to connect and disconnect pneumatic tools. They typically feature a locking mechanism that ensures a secure connection.
• Threaded Couplers: These couplers require threaded connections, providing a more secure and durable connection but often requiring the use of wrenches or tools for installation and removal.
• Push-to-Connect Couplers: These couplers are designed for quick and easy connection by simply pushing the fitting into the coupler. They are often used in applications where frequent connections and disconnections are required.
• Elbow Fittings: These fittings are used to change the direction of an air hose or pipe. They are available in various angles, including 90-degree, 45-degree, and 22.5-degree elbows.
• Tee Fittings: These fittings are used to create a branch in an air hose or pipe, allowing for multiple connections.
• Reducer Fittings: These fittings are used to reduce the size of an air hose or pipe. They are often used to connect components with different sizes.
• Straight Fittings: These fittings are used to connect air hoses or pipes in a straight line.
• Union Fittings: These fittings are used to disconnect or reconnect components within a pneumatic system without disrupting the flow of air.
• Filter Fittings: These fittings are used to connect air filters to a pneumatic system, removing contaminants and moisture from the compressed air.
• Gauge Fittings: These fittings are used to connect pressure gauges to a pneumatic system, allowing for monitoring of air pressure.
