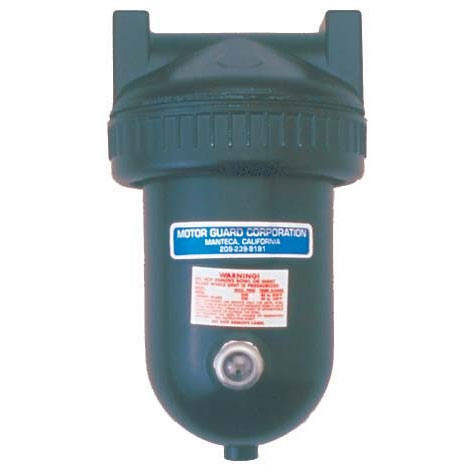

1/2" Compact Desiccant Dryer - 1 Qt

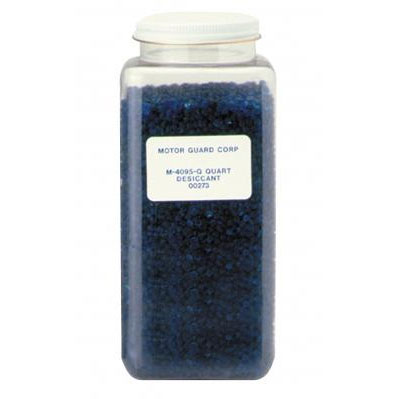

Delivers extremely dry compressed air as low as -30? F dew point without using electricity or refrigerant. Easy to monitor, when color changes in the sight glass from dark blue to pink, then it is time to change or dry the desiccant. To dry desiccant, remove from unit, bake at 275? F for 3 hours. To prolong the life of the unit, a 40 micron pre-filter, and .03 coalescing filter should precede dryer. Initial supply of desiccant is included.

How desiccant system works:

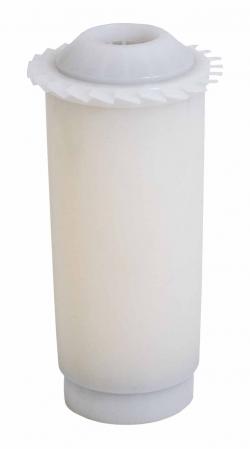

Incoming air is dispersed through a 70 micron polypropylene element for removal of particles. The air is then distributed uniformly through the desiccant to the bottom of the bowl where clean/dry air enters the intake tube. As desiccant silica beads become saturated there will be a color change which is easily observed through the sight glass.

Maximum: 250 PSI

Specifications:

• 1 quart capacity
• SCFM: 5-15 maximum

Milton Industries 1170 1/2" Compact Desiccant Dryer
