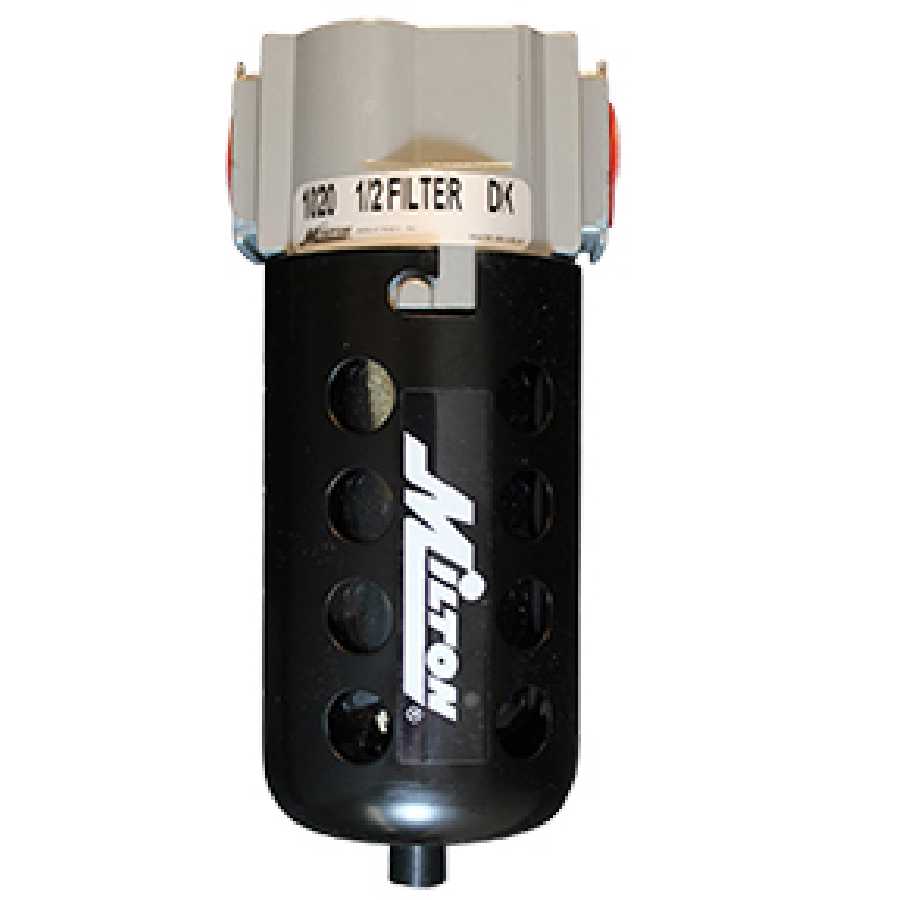

Micro Filter Polycarbonate Bowl 1/2 In NPT 100 SCFM Max

Polycarbonate Bowl Micro Filter w/ Metal Bowl Guard 150 PSI

Designed for the efficient removal of harmful foreign matter such as condensed moisture, pipe scale, dirt and rust from the air stream.

The Milton micro filter features a large filter area of porous bronze giving less pressure drop and longer cleaning intervals, a three-stage baffle system for more efficient moisture removal, quick bowl removal for cleaning or changing filter elements.

All micro filters supplied with preassembled Automatic Overnight Drain.

Sintered bronze elements are permanent and cleanable.

Light weight aluminum die-cast housing.

Element range 10 or 40 microns exactly matching filter and air flow needs.

Warning: For compressed air service only. Not to be used on life support systems or breathing air systems. Never use polycarbonate plastic bowls on air supplied by a compressor lubricated with synthetic oils or oil containing phosphate esters or chlorinate hydrocarbons. They can carry over into the air distribution systems and chemically attack and possibly rupture the bowls. For these applications use a metal bowl. Materials such as trichloroethylene, acetone, paint thinner or cleaning fluids will craze and/or rupture a polycarbonate bowl. When these materials are present either inside or outside the bowl, use metal bowls. For a more complete list of known harmful chemicals check instruction sheet.

• 1/2" NPT
• Bowl Capacity: 5 Oz
• Maximum Pressure: 150 PSI
• Temperature: 40-120? F
• Maximum SCFM: 100
