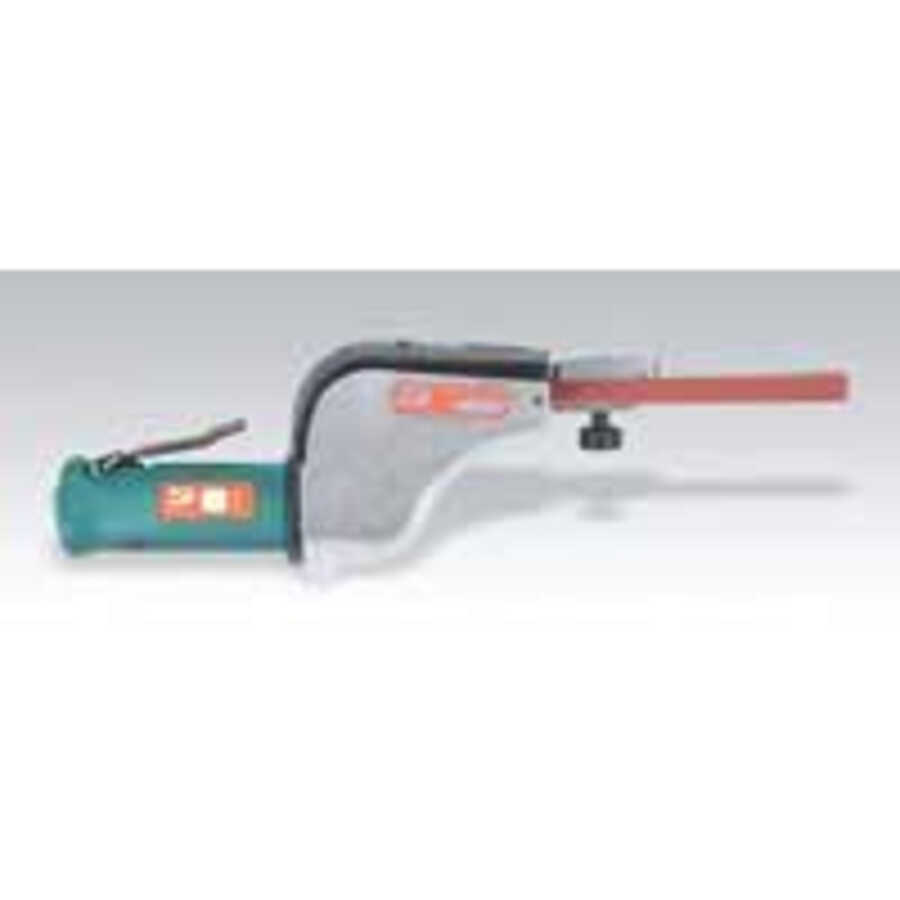

Dynabrade 14000 Dynafile(R) Abrasive Belt Machine

The Dynafile(R) Abrasive Belt Machine is a versatile tool that can be used for a variety of applications, including grinding, deburring, blending, and polishing. It features a quick-change belt housing that makes it easy to change belts, and a composite housing that reduces vibration and is thermal-insulated. The Dynafile(R) Abrasive Belt Machine is also equipped with a front exhaust that helps to keep the work area clean.

Key Features

• Replaces tedious hand filing and sanding.
• Superior belt tracking and fast abrasive belt changes.
• Includes: Contact Arm (PN11218).
• New composite quick-change housing cover.
• Composite housing reduces vibration and is thermal-insulated.
• New belt housing has larger opening for belt tracking and operation.
• No more grinding away the housing.
• 0.5Hp/20,000 RPM, Straight-Line, Front Exhaust

Applications

The Dynafile(R) Abrasive Belt Machine can be used for a variety of applications, including:

• Grinding
• Deburring
• Blending
• Polish Sanding

Materials

The Dynafile(R) Abrasive Belt Machine can be used on a variety of materials, including:

• Woodworking
• Metal
• Ceramics
• Composites
• Stainless Steel
• Plastics
• Fiberglass
• Rubber
• Glass
• Stone

Benefits

The Dynafile(R) Abrasive Belt Machine offers a number of benefits, including:

• Superior belt tracking and fast abrasive belt changes
• Reduced vibration and thermal-insulated housing
• Large opening for belt tracking and operation
• No more grinding away the housing
• 0.5Hp/20,000 RPM, Straight-Line, Front Exhaust

Specifications

• Abrasive Information: English: 1/8-1/2" W x 24" L Metric: 3-13 mm Wide x 610 mm Long
• Length: English: 14 3/5" Metric: 371 mm
• Height or Diameter: English: 4" Metric: 102 mm
• Weight: English: 3.1 lbs. Metric: 1.41 kg
• Air Flow Rate @ 90 psig: English: 31 SCFM * Metric: 878 LPM English: 4 CFM @ 90 psig
• Sound Level: English: 77 dBa Metric: N/A
• Horsepower: English: 0.5 Hp Metric: 373 W
• Free Speed: English: 20,000 RPM Metric: N/A
• Air Pressure: English: 90 PSI Metric: 6.2 Bars
• Air Inlet Thread: English: 1/4 NPT Metric: Note: NPT only
• Hose Size (I.D.): English: 3/8" Metric: 10 mm
• Max. SFPM: English: 5800 SFPM Metric: 1762 SMPM

NOTE: For proper tool operation; The compressor inlet CFM rating must be equal to or greater than tool SCFM rating.
