Electronic EGR System Tester - Waekon Industries

Specifications

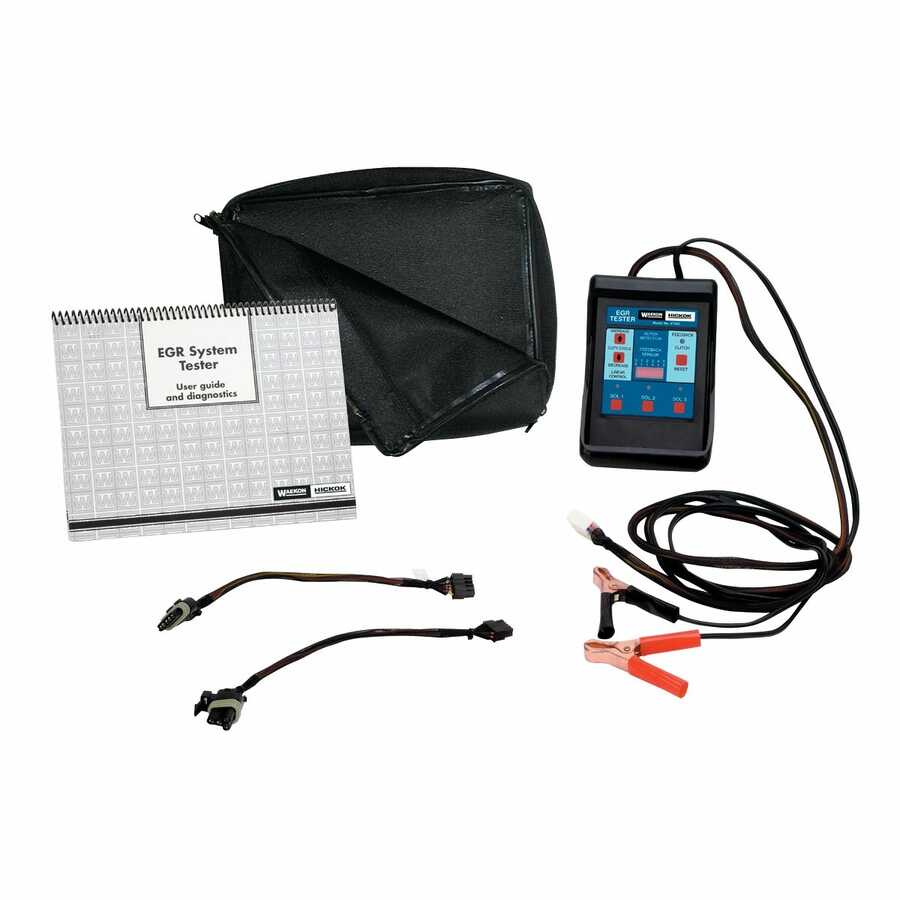

Manufacturer: Waekon Industries Model Number: 47062 Weight: 3 lbs Power Source: Connects to vehicle's 12V battery for operation. Included Components: EGR tester unit, 2 adapter cables for GM Linear and Digital valves, comprehensive instruction/diagnostic manual, and a zippered storage case. Expandability: Compatible with the Waekon 47001 adapter kit (not included) for expanded coverage to Ford, Chrysler, and Asian applications.

Key Features

• Duty Cycle Control: Provides complete control over the EGR valve's opening and closing, enabling the identification of intermittent sticking or improperly seating valves.
• Feedback Sensor Display: Monitors and displays the feedback sensor voltage across the full range of the EGR valve's motion, aiding in precise diagnosis.
• Solenoid Status LEDs: Features LED indicators that visually confirm the status of solenoids (energized, short, or open) for quick circuit assessment.
• Glitch Capture: Incorporates a glitch capture function to detect and monitor feedback sensor flat spots, which are indicative of intermittent issues.
• Solenoid Activation: Allows manual activation of up to three solenoids simultaneously using dedicated buttons.
• Dedicated Adapter Cables: Comes with specific adapter cables for direct connection to GM Linear and Digital EGR systems.

Applications

The Electronic EGR System Tester is utilized for comprehensive diagnostics and testing of Exhaust Gas Recirculation (EGR) systems in automotive applications. It is particularly effective for:

• Diagnosing EGR Valve Malfunctions: Pinpoints issues such as EGR valves stuck open or closed, intermittent sticking, or improper seating that can lead to engine performance problems.
• Troubleshooting Engine Performance Problems: Helps in identifying the root cause of rough idle, stalling at deceleration, poor throttle response, and spark knock (detonation) related to EGR system faults.
• NOx Emission Faults: Aids in diagnosing failures that contribute to increased Nitrogen Oxide (NOx) emissions, helping vehicles meet environmental standards and pass emissions tests.
• Testing Related Components: Checks the functionality of vacuum control solenoids, vacuum lines, and EGR passages for blockages or leaks.
• Identifying Intermittent Issues: Uncovers intermittent problems within the EGR system and its feedback sensors that conventional scan tools may not detect.
• EGR System Cleaning Assistance: Can be used to cycle the EGR valve, assisting in the removal of carbon deposits and aiding in cleaning procedures.
• Vehicle Compatibility: Primarily designed for GM Linear and Digital EGR systems, with expanded diagnostic capabilities for Ford, Chrysler, and various Asian applications when used with an optional adapter kit.

Benefits

• Accurate Diagnostics: Provides precise information on EGR valve operation and sensor feedback, reducing guesswork and leading to more accurate repairs. This helps technicians quickly pinpoint elusive and intermittent problems, saving valuable diagnostic time.
• Improved Engine Performance: By enabling the effective diagnosis and repair of EGR system faults, the tester helps restore optimal engine operation, resolving issues like rough idling, stalling, and poor acceleration.
• Reduced Emissions: Ensures the EGR system is functioning correctly to recirculate exhaust gases, which is crucial for lowering combustion temperatures and minimizing harmful NOx emissions. This can help vehicles pass emissions inspections.
• Cost-Effective Repairs: Facilitates targeted repairs by accurately identifying faulty components, thus preventing the unnecessary replacement of parts and reducing overall repair costs.
• Enhanced Troubleshooting: Offers advanced testing capabilities beyond standard scan tools, particularly for direct component activation and detailed sensor monitoring.
• Extended Vehicle Lifespan: Proper EGR system function, maintained through accurate diagnosis, contributes to reduced thermal stress on engine components, potentially extending the engine's operational life.
