Heavy
duty, fan cooled high current testing for 6 and 12 volt automotive
electrical systems including battery, alternator and starter.
Offers
rugged, accurate testing capacity for heavy use service. Large dual
meter displays are scaled numerically and in simple English "pass-fail"
messages. Portable amp probe measures alternator current, starter draw
and parasitic drain currents.
Heavy
Duty Carbon Pile Resistors
Variable load current from 0 to 800 amps is controlled by dual heavy
duty carbon pile stacks designed for steady balanced load control.
Carbon piles are fan cooled for increased duty cycles for continuous
testing.
Clamps/Cables
Solid copper 800 amp jaws in vinyl coated side terminal clamps assure
strong connections and rugged durability. Heavy industrial grade
stranded cable has internal molded sense leads for added reliability.
Large
Dual Meters
Two large 4 inch analog meters display battery voltage and load
current. Test results are color coded in simple English "pass-fail"
messages in addition to numerical display.
Temperature
Adjustments
The tester adjusts to compensate for battery temperatures from 0 to
125oF. Scaled in oF and oC.
Warranty
The CST800 has a one year warranty covering parts and labor. Service is
provided at over 200 authorized Service Centers nationwide. Cables and
clamps are excluded.
Testing:
- Voltage: 6/12 volts
- Load: 0-800 amps
- Cooling: Fan
- Duty Cycle: 1 Battery/2 min.
Dimensions:
- Height: 10 in.
- Width: 12 in.
- Depth: 10 in.
- Weight: 22 lbs.
Warranty:

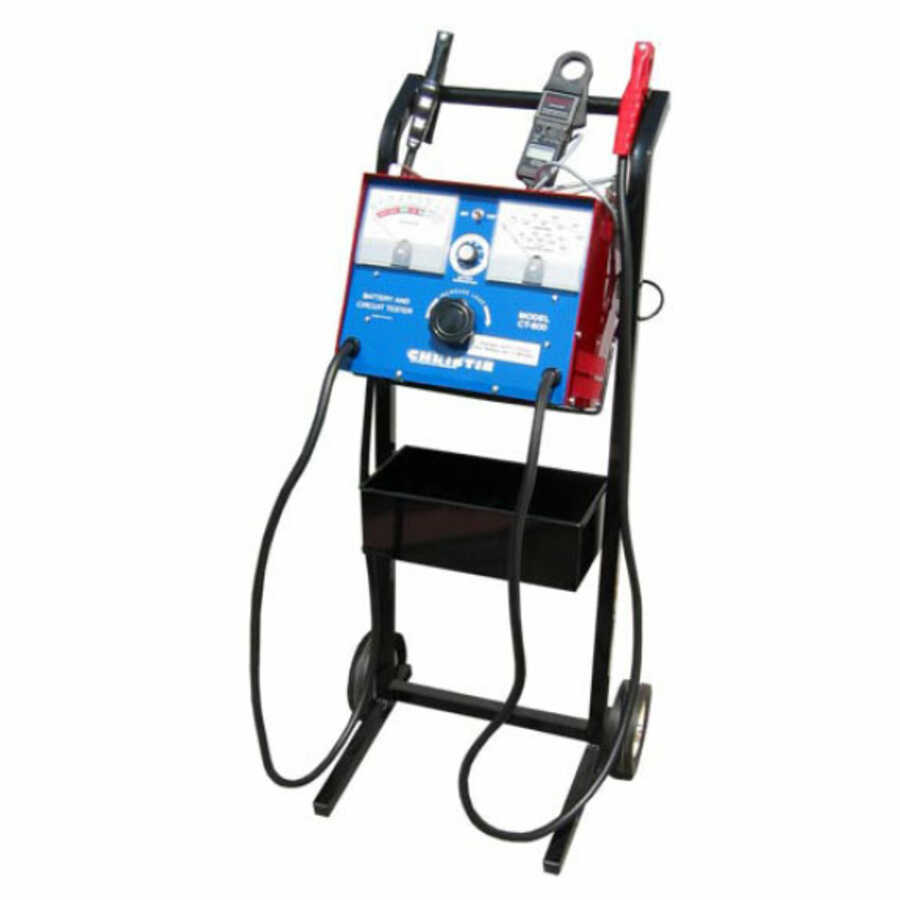

Christie CST800 Charging SystemTester with 800 Amp Variable Load
