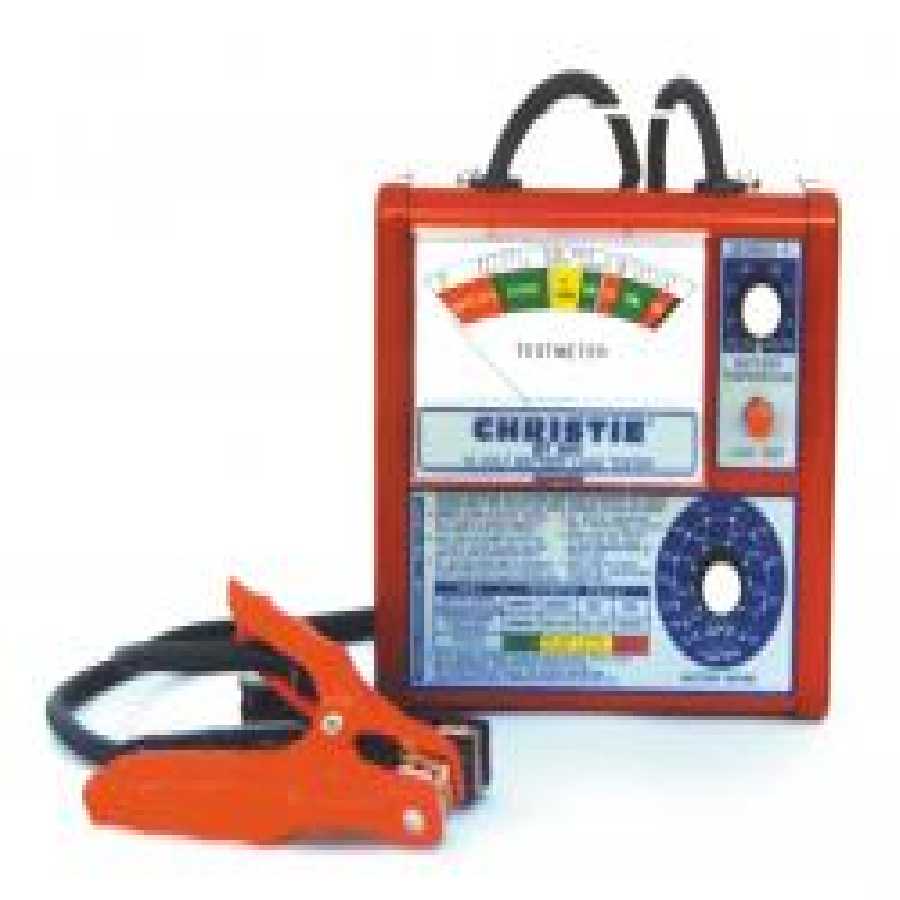

Precision 900 CCA Battery Load Tester

Christie's Battery Tester uses a heavy 300 amp load to simulate actual cranking loads. This is the most accurate, reliable, and cost effective battery tester available.
Large meter displays give color-coded test results in simple English, pass/fail messages. Simple panel controls adjust for battery capacity and temperature.

Tests 12 volt automotive batteries up to 900 Cold Cranking Amps. Has dual capacity dial scale for CCA and CA.

Start/Cranking Simulation
Better battery testers simulate actual vehicle cranking load for ultimate ac-curacy. Without a good, heavy load, the tester can pass weak batteries.

Large Color-Coded Display
A large 6 in. display give test results in simple English, pass/fail messages. To determine battery condition, oper-ator does not have to interpret test result numbers.

Acid Proof Construction
Heavy duty 500 amp side-terminal clamps and tester cabinet are vinyl coated for extra life. Instruction panels are made of heavy lexan for perm-anent durability.

Precision Controls
Simple panel controls provide adjust-ments for battery capacity up to 900 CCA or 1200 CA. Battery temperature adjustments are provided up to 125 degrees.

Made in USA

Warranty Plan
One year free replacement of parts and labor provided at over 200 Service Centers nationwide.

Testing:

• Voltage: 12 volts
• Load: 300 amps
• Cooling: Convection
• Duty Cycle: 1 Battery/
• 10 min.

Dimensions:

• Height: 8 in.
• Width: 10 in.
• Depth: 4 in.
• Weight: 11 lbs
