Battery & Electrical Diagnostic Analyzer w Integrated Printer &

This item drop-ships from Midtronics and has a 5-7 day lead time before shipment.

• Building on advanced EXP technology with additional program management features, the Midtronics EXP-800 sets the standard for professional battery and electrical preventative maintenance. Features like easy-to-use controls, compact size, and an integrated printer, make the EXP-800 the ideal choice for any service shop looking to make preventative maintenance part of their value-added solutions.
• Applications: Auto/ Light Truck

Features:

New Dynamic Conductance Battery Testing Technology

• Combines direct temperature measurement with deep scan technology to improve accuracy and decisiveness.
• Advanced preventative maintenance algorithms for identifying batteries as they approach end-of-life.

Advanced Electrical System Diagnostics Featuring Digital Signal Processing

• Digital Signal Processing (DSP) creates a digitized picture of the measured alternator output voltage to analyze the amplitude level and frequency of the diode ripple pattern for improved accuracy and identification of open or shorted diodes and open phase conditions, (multiple diode failure or winding problems)

Advanced Communications Capabilities

• Integrated printer to enhance and enforce the selling/service .
• Integrated data card read/write drive for simple software update capability and data storage

Superior User Interface

• Large graphical screen for icons and improved explanations.
• Scroll bar capability means fewer overall screens.
• Hot keys improve logic and flow

Specifications:

Applications:
• 6 and 12 volt batteries
• 12 and 24 volt charging system
Power Requirements:
• (6) AA Alkaline batteries
Battery Applications:
• Automotive
• Marine battery
• Motorcycle
• Group 31
• Commercial--4D/8D
• Lawn and Garden
Battery Chemistries:
• Regular (flooded)
• AGM Spiral
• AGM
• Gel
Rating System - Range
• CCA 100 - 3000
• CA 100 - 3000
• MCA 100 - 3000
• JIS By JIS number
• DIN 100 - 1000
• SAE 100 - 3000
• IEC 100 - 1000
• EN 100 - 3000
DC Voltage
• 0 - 60 V, 0.05% +/- .03 VDC
Measured Temperature
• -20 to 200? F 1.0% +/- 5? (-28.8 to 93.3? C)
Display:
• 128 x 64 pixel graphic, backlit display
Operating Temperature:
• 32? F - 120? F (0? C - 49? C)
Test Leads:
• 10 ft cable with HD dual conductor Kelvin clamps
Housing Material:
• ABS plastic
Dimensions:
• 9 1/2 in H x 4 in W x 2 1/2 in D
Weight:
• 1 lb / 427 g
Soft-Sided Carrying Case/Toolbag

Languages:
• English
• French-Canadian
• Spanish

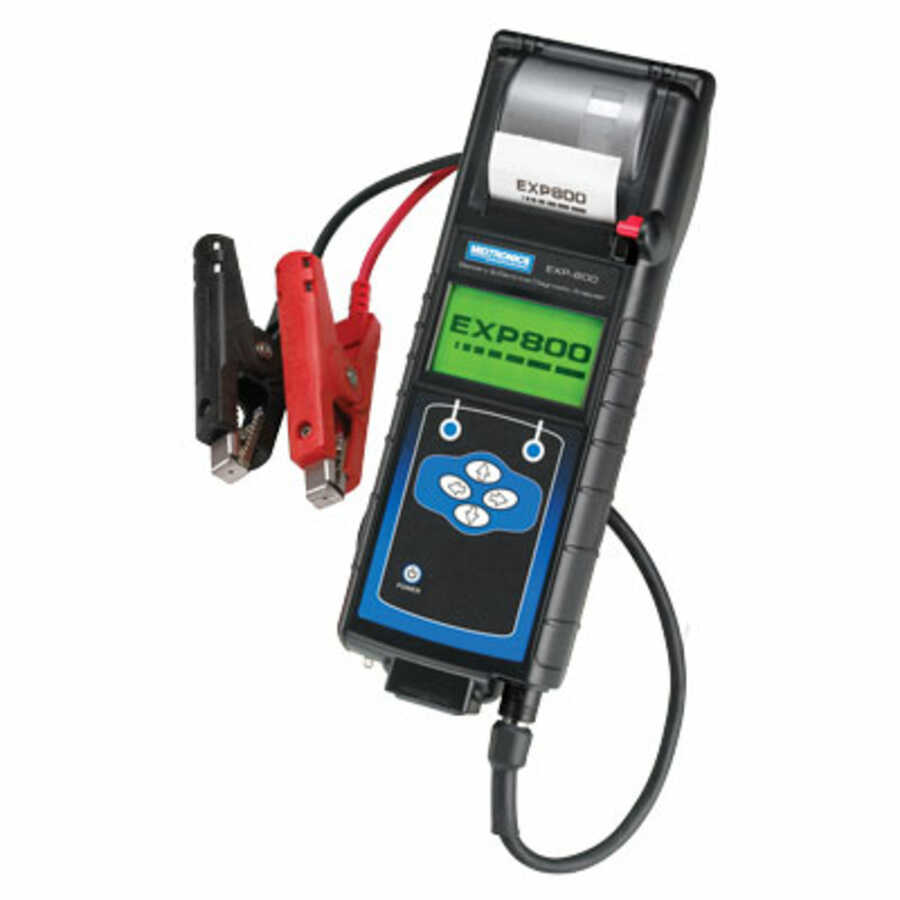

Image shows model EXP-800 (4 Ft Cable)

Midtronics EXP-800L Battery and Electrical Diagnostic Analyzer with Integrated Printer and 10 Ft Cable
