Battery & Electrical System Tester With Registration/Reset Bui

Conductance ProfilingTM combines Midtronics’ most advanced Conductance test with direct temperature measurement and an all-new, load-based Reserve Capacity verification. This greatly improves both accuracy and decisiveness -fewer Charge & Retest results!

• E-mail customer results, view on-screen, print to tape or print to scale on a color printer
• VIN-based testing: o Battery Registration app and Reset checklist o Automatically sets the correct battery test parameters (override is possible for aftermarket batteries) o Establishes vehicle records, creates a history, and helps track process compliance
• Starting System Test captures voltage drop at start-up and the cranking duration
• Comprehensive Charging System Test: o Captures voltage at idle & rev with vehicle loads on & off, and measures Diode-Ripple to ID bad diodes, stator damage or bad windings o DSP – Digital Signal Processing creates a digitized picture of the measured alternator output voltage to analyze the amplitude level & frequency of the diode-ripple pattern
• Tests conventional Flooded, AGM, Gel, and Enhanced Flooded(EFB) batteries
• Bluetooth wireless 2-Piece design: Connect base unit to the battery and do all functions from the driver’s seat with AndroidTM powered 5” full-color touchscreen controller
• DMM: AC/DC Amps, AC/DC Volts, Temp Sensor
• Battery test range: 100-3000 CCA
• Rating standards: CCA,CA, MCA, JIS, DIN(A), SAE(A), EN(A), EN2(A)
• Modes: Automotive, Marine, Powersport, Group 31, Commercial 4D/8D, Lawn & Garden
• Tri-lingual: English, Spanish, and French-Canadian
• Bad-cell detection & Reverse polarity protection
• High-quality field-replaceable cables

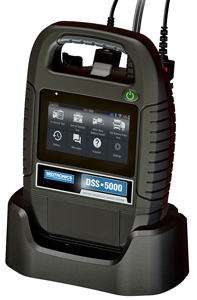

• Includes DSS-5000 w/Printer, CVG-2BT Module (Bluetooth OBD II device for VIN capture and battery registrations), DSS-5003 Charging Dock, A657 Amp-Clamp
• Product maintenance subscription will be required, est. $9.95/mo. direct with Midtronics. Includes software & firmware updates, year/make/model table updates.
