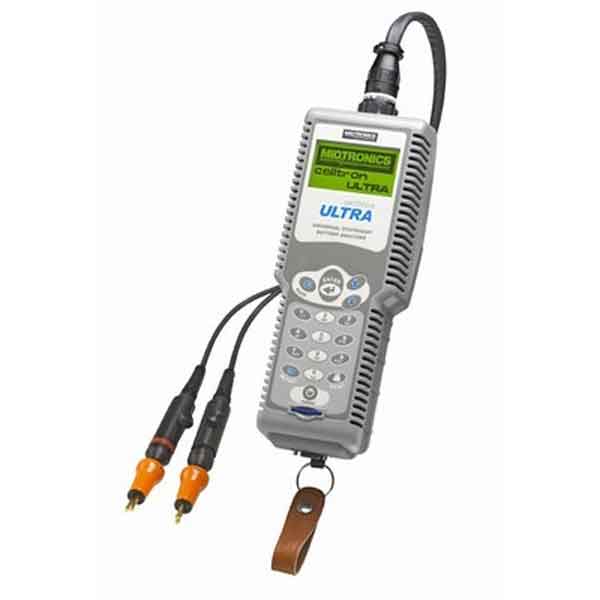

Celltron Ultra Stationary Battery Analyzer - Complete Kit

Midtronics CTU-6000 KIT Celltron Ultra Stationary Battery Analyzer - non-stocking, special order item, manufacturer drop ship only. 1 week lead time from manufacturer before shipment. Midtronics does not drop ship outside the USA.

Complete stationary battery analysis kit includes everything needed to perform appropriate maintenance on UPS, Telecom, Power Utility and other stationary batteries.  The CTU-6000 Kit includes lighted probe extenders for added safety and efficiency (an industry first), PC software for analysis, an infrared strip printer and more, all in a rugged hard case. This kit makes battery maintenance simple, safe, and portable!

Features:

• Advanced Conductance Technology: Enhanced methodology enables accurate and repeatable testing in the presence of ultra-high electrical interference
• Battery Data Manager: Software and data management techniques allow for the easy establishment of battery reference/baseline values when data is not readily available
• Lighted probes: The industry's first lighted probes increase visibility in tight battery cabinents, enhancing safety and efficiency
• Digital Multimeter: Versatile features allow for the measurement of AC and DC voltage and current; scope function displays AC ripple current and more.

Specifications:

• Model - CTU-6000 Kit
• Warranty - Midtronics standard one-year warranty
• Applications - UPS system testing; Power utility switching and other applications; telecommunications power systems
• Conductance Range - 100-19,900 Mhos/Siemens
• Battery Capacity Range - 10 Ah to 4000 Ah approx.
• Power Requirements - 9.6 Volt, 1600 mAH NiMH internal swapable battery (included) provides more than 1000 test operations before re-charge
• Voltage Range - 1.5-20.0 Volts DC
• Display - LCD-FSTN, 128 X 64 pixel graphical display with green LED backlight
• Operating Temperature - 1 to 40 degree C, 95% relative humidity
• Interface Operations - Kit includes Kelvin probes, clamps and lighted probe extender grips. Custom interfaces available. Professional grade cable connector
• Housing Material - Acid resistant ABS plastic with sure-grip santoprene overmold
• Product Dimensions - 12 in. X 4 in. X 3 in. (280 mm X 105 mm X 80 mm)
• Analyzer Weight - 2.6 lbs
• Kit Shipping Weight: Approximately 11 lb
• Over Voltage Protection - Fused protection to 600 volts DC
• Test Data Storage - 500 strings of 480 tests
• Temperature Compensation - Automatic adjustments on temp input
• Calibration - Auto calibration prior to every test, no future calibration required

Non-stock item; please email service@toolsource.com for lead time.
