Non-stock item, back order status; please email service@toolsource.com for lead time.
Output
12 volt, 700 amp, 23 CFM @ 100 psi, 150 psi max
Dimensions
30"W x 40.5"D x 21"H, 475 lbs.
Engine
Electric start, air cooled Kohler OHV V-twin gasoline engine. Fuel tank required, sold separately.
Cables & Clamps
30 ft., 1/0 ga. welding cable allows flexibility and ease of use, 1000 amp full-power clamps allow higher amperage flow
General Features
- Electric start, air cooled Kohler OHV V-twin gasoline engine. Fuel tank required, sold separately.
- Single stage air compressor, 23 CFM @ 100 psi, 150 psi max. Air tank required, sold separately.
- 30 ft., 1/0 ga. welding cable allows flexibility and ease of use
- 1000 amp full-power clamps allow higher amperage flow
- Volt and amp meter to monitor boosting output
- Voltage Control provides regulated voltage that is safe for vehicles and on-board electronics
- Reverse Current Shutdown Protection eliminates expensive repairs to the Start•All® if the unit runs out of gas
- Reverse Polarity Protection will not allow the Start•All® to be turned on if the cables are not hooked up correctly
- Polarity and low battery LED indicators confirm proper connections
- Antizap surge protection provides safer boosting
- Single DC boosting switch for easy operation
All 11-900 series installations must be approved by the factory prior to ordering to assure proper air flow, dissipation and weather resistance.
The 11-900 series Start•All® units are designed to mount between the side packs on a service vehicle
The Control Panel is located on the curb side of the service vehicle for convenience and safety. 7"W x 19.75"H
Panel includes:
- Oil pressure gauge
- Air pressure gauge
- Hour meter
- Voltmeter
- Ammeter
- DC boosting switch
- Air compressor switch
- Remote oil filter
- Engine oil drain hose
Manufacturer drop ship; please email
service@toolsource.com for lead time.
$85 standard freight fee. Applies to direct shipping points within the 48 continental US states. Rural Area Surcharge may apply.
- *An additional $40.00 will apply to all residential deliveries of heavy-equipment.
- *For lift-gate service, add $135.00.

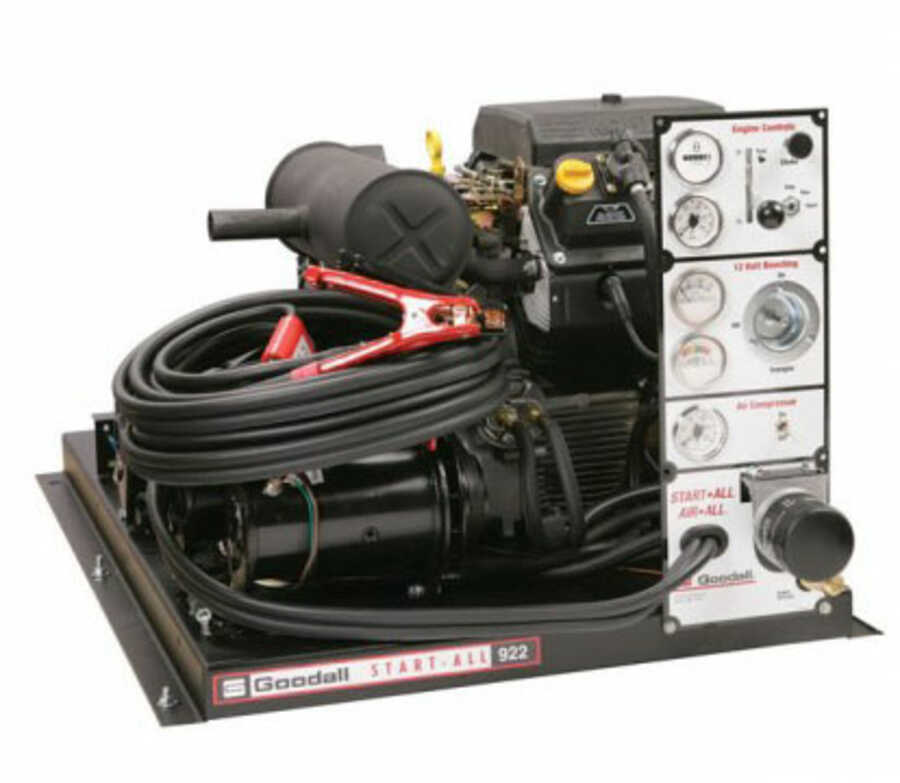

Goodall 11-922 Start-All® with Air Compressor
