Diagnostic Light, Air Brake and ABS Tester Designed for Emergency Vehicles (7 Round Pin)
ELECTRICAL TESTING (12/24 Volt Operation)
- Power lights: Manually, All-On, Auto Scan, or by Remote Control
- Audible and visual alerts: cross, open, overloaded and short circuit indication
- Pulsar® mode allows diagnostic repair
- Advanced trailer wiring diagnostics
- Amperage readout and range (0-20 amps)
- Cable testing
- Ground failure detection: differentiates between wire and chassis ground
ABS TESTING
- Access ABS blink codes
- Test ABS fault blink codes via Auxiliary and Brake Circuit activation (i.e. Meritor/Wabco, Bendix® TABS-6 and Haldex systems)
AIR BRAKE TESTING
- Performs leak down test on service and emergency lines
- Remote control allows observation of slackers to measure and adjust pushrods
- Real time, repetitive brake activation to find developing problems and verify leaking servo cans
- Features an internal air regulator
REMOTE CONTROL
- remotely test all trailer electric circuitry and air brake actuation with new 12-button remote
- (2) 3-button remote controls included test all trailer electric circuitry and air brake actuation, 200+ ft. range
- Sync multiple (12) remotes to one unit

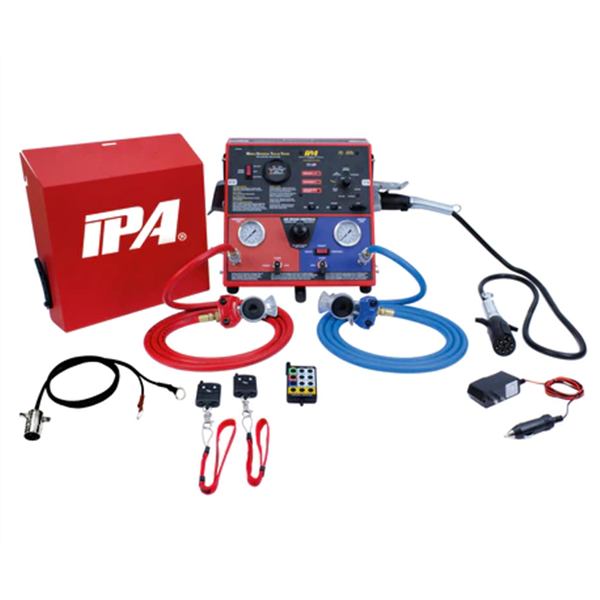

Includes:
(2x) 3-Button Remote Controls • 8' Glad Hand Hoses • 500 mA Battery
Charger • External Power Supply Cord • 12-Button Remote Control • 5’
7-Way Cable •Chassis Ground Cable • Face Shield
(#9005A) Super MUTT Head
Warranty: 3-Year (with manufacture)
Power: 12 Volts DC
Air Input: 120 PSI Shop Air
Internal Battery (Optional) : Yuasa #YTX14 or Similar Recommended
Ext. Power Input: Adequate 12 Volt Power Source i.e. Group 31 Battery or Similar
Output: 20 Amps @ 12 VDC
Connection Type: 7 Way Round Pin
Controls: Manual, Remote, Automatic
Materials: Steel Construction
Weight: 20 lbs
Dimensions: 16.5" W x 11.5" H x 10.5" D
