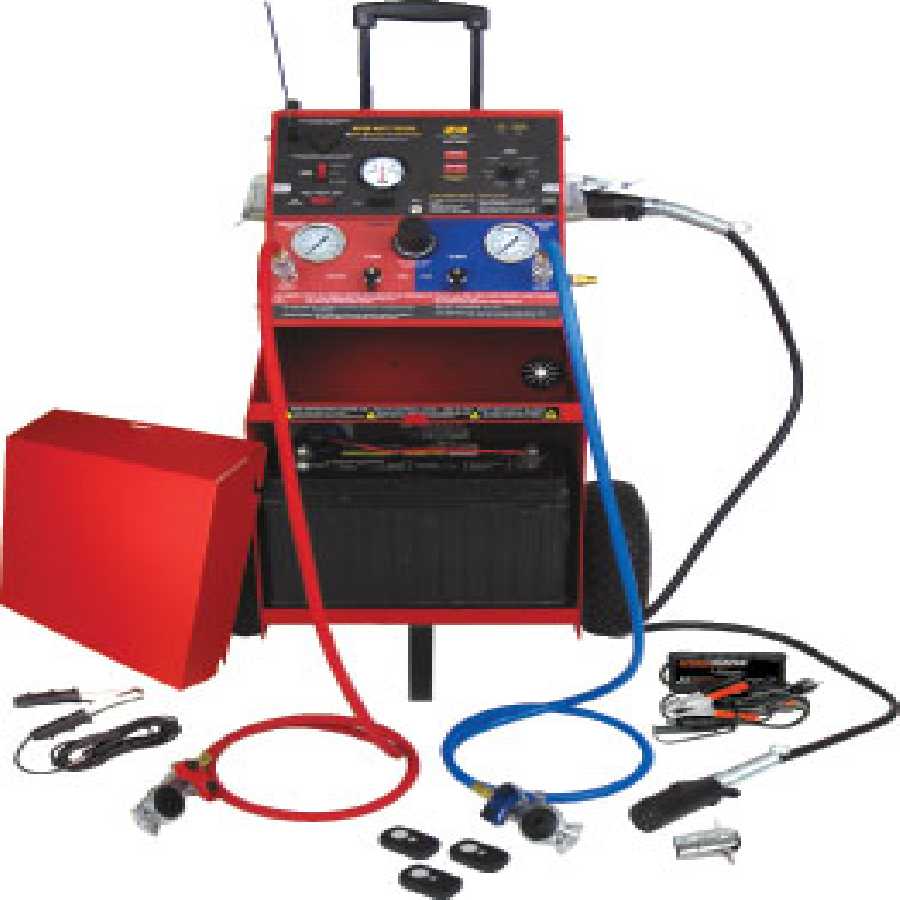

SuperMUTT Trailer Tester with Standard Equipment

Specifications

• Model Number: 9008-SE
• Manufacturer: Innovative Products of America (IPA)
• Weight: 56 lbs
• Dimensions: 35 x 21 x 15 inches
• Battery Requirement: External battery required (not included)
• Operating Voltage: 12/24 Volt operation
• Control Range: Remote controls operate up to 200+ ft.

Key Features

Electrical Testing

• Supports 12/24 Volt operation for versatile testing.
• Lighting Functions: Test power to lights manually, all-at-once, with auto scans, or via remote control.
• Diagnostics: Detects cross, open, overloaded, and short circuits with audible and visual alerts.
• Pulsar® Technology: Pulses power through circuits to facilitate diagnostic repair.
• Provides amperage readouts for precise troubleshooting (0-20 amps).
• ABS Testing: Access and test ABS fault blink codes for Meritor/Wabco, Bendix® TABS-6, Haldex, and similar systems.

Air Brake Testing

• Conducts leak-down tests on service and emergency air lines.
• Allows real-time observation and adjustment of slackers and pushrods using remote control.
• Activates air brakes repetitively to reveal emerging issues and verify leaking servo cans.
• Integrated internal air regulator for precise air delivery.

Remote Control Capabilities

• Operate all electrical and air brake functions remotely.
• Real-time on/off activation of systems to eliminate manual guesswork.
• Sync multiple remotes (up to 12) to a single unit for extended functionality.

Included Components

• 3 3-button remote controls (200+ ft. range).
• 5' 7-way cable for electrical diagnostics.
• Chassis ground cable for secure connections.
• External battery connector for reliable power supply.
• 8' glad hands for air brake system access.

Applications

• Commercial Trailer Testing: Ideal for diagnosing electrical, lighting, air brake, and ABS systems in commercial trailers.
• On-site or Garage Use: Compact and durable design allows for both on-site mobile diagnostics and fixed-location repairs.
• Regulation Compliance Support: Simplifies inspections
