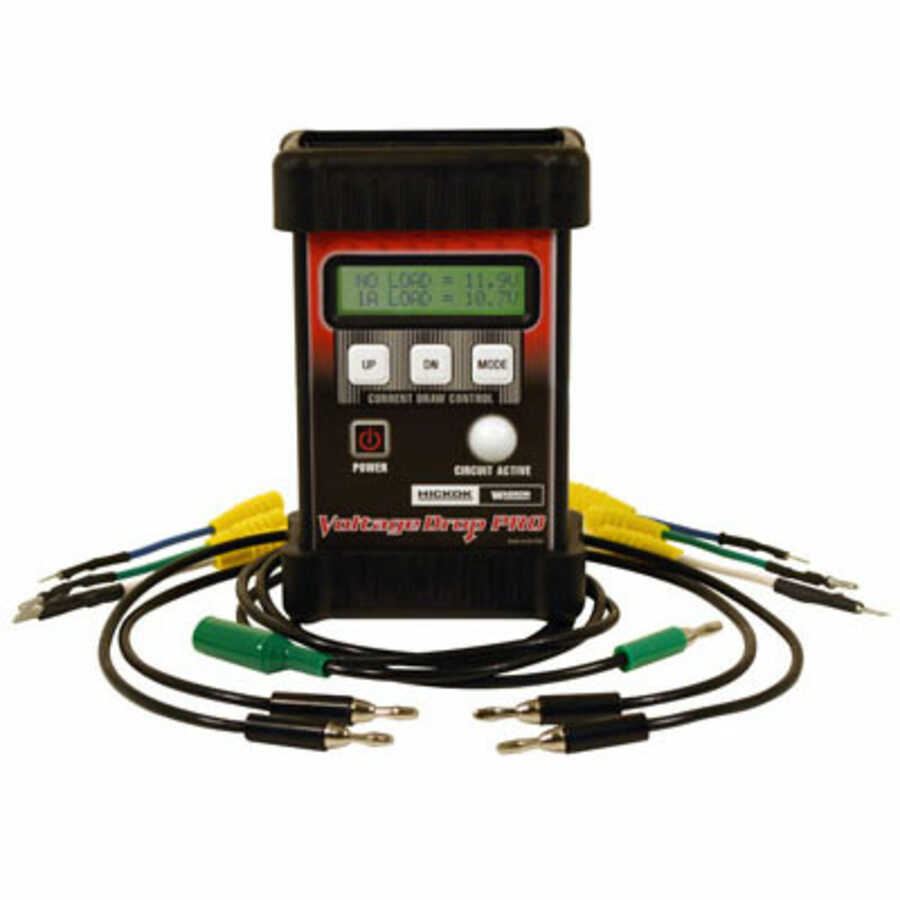

Voltage Drop Pro Tester

Voltage Drop PRO automatically tests vehicle wiring under load and measures voltage drop in the circuit.

More and more of today's vehicles are using Pulse Width Modulated (PWM) components. You can't simply test them by directly applying 12 volts anymore. This can cause misdiagnosis or worse, damage to the component. Power Pro supplies, measures and displays variable current using PWM just like today's vehicles. It's the only tester that can adjust the ouput percentage manually from 0%-100% in 1% increments to effectively pinpoint the cause of the failure.

• The only tester that activates both PWM and DC components
• 0-40 Amp Power or Ground controlled component
• Displays actual current flow
• Power both connected and disconnected components
• Adjustable power percentage increments from 0-100%

Specifications:

• Range: 3 - 16 VDC
• Accuracy: +/- 1% full scale
• Resolution: 0.1 VDC
• Sample rate: 100/sec

Kit Contents:

• Tester
• Flex Probe Adapters (3 pairs)
• 1 Ground Lead (green)
• 2 A/B Leads (black)

Waekon 78265 Voltage Drop Pro Tester
