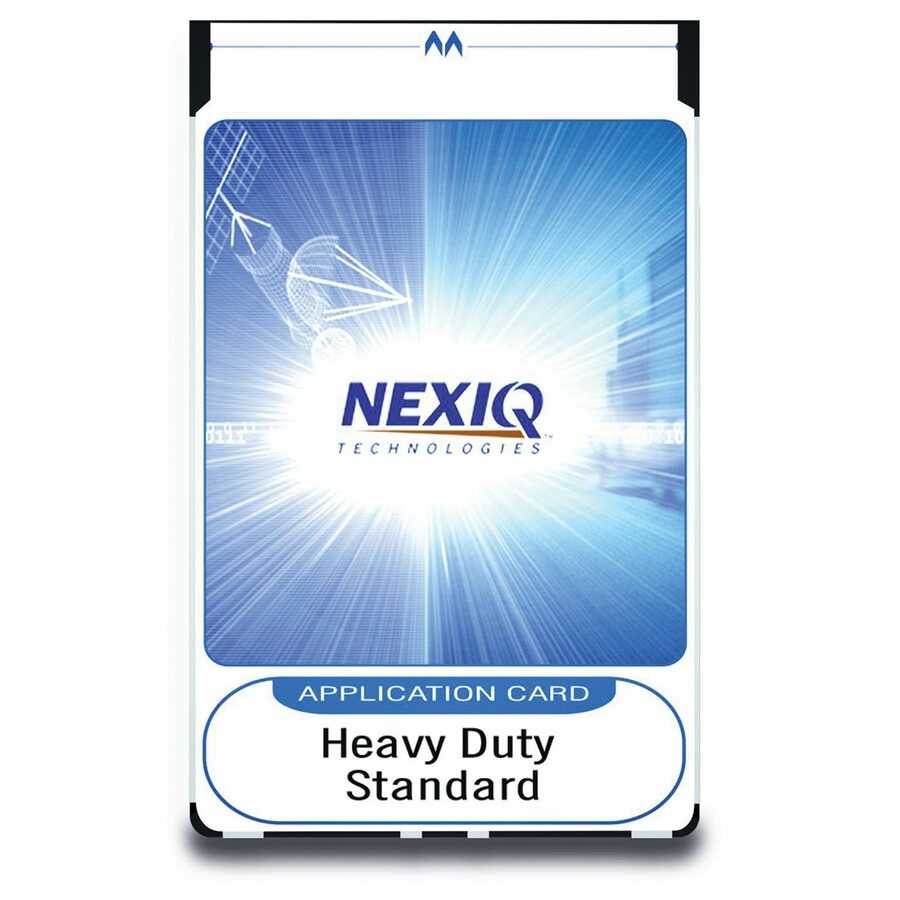

Heavy Duty Standard Application Card for MPC, Pro-Link Plus and

This item may not be in stock; please email service@toolsource.com for lead time.

• The Heavy-Duty Standard Diagnostic system application provides the functions necessary to diagnose most SAE/TMC J1708/J1587 electronic control system/engine, transmission, brakes, instruments and emissions.
• To address advanced capabilities provided by this application, the MPC uses PCMCIA cards.
• The card is plugged into the back of the unit, and provides additional functions.
• The following list contains all of the features and functions available with this card.

  Systems covered:
  • Non-proprietary J1587/1708 heavy duty vehicle coverage for:
    • Allison Transmissions, Bendix, Caterpillar, Cummins, Detroit Diesel, Eaton, Freightliner, International, Mack trucks, Meritor WABCO, Volvo, ZF Meritor
  Features:
  • Display diagnostic codes and MIDs received; Simple menus direct the technician through diagnostic functions.
  • Display trip data.
  Includes:
  • Application card, Manual, MPS906008 NEXIQ Fault Code Guide
  DIAGNOSTIC FUNCTIONS
  • Active codes, Barometric pressure PSI, Battery volts, Change reference number, Component make, Cruise active, Cruise high limit MPH, Cruise set MPH, Cruise set/coast/resume/accel/brake and clutch switches, Cruise switch, Engine load, Engine/PTO hours Need to update your existing NEXIQ, Heavy Duty Standard card, Fuel and oil temperatures, Fuel rate GPH/total gallons, Governor droop RPM, Heavy Duty Standard PCMCIA card floppy disk update, Maximum road speed, Model number MPS802008F, PTO active PTO control switch, PTO set/coast/resume/brake/clutch switches, PTO set/idle/engine RPM, Rated engine horsepower, Road speed status/MPH.
  New Features:
  • Create custom data lists or select and hold specific lines of data for comparison of related parameters.
  • Display diagnostic codes and MIDs received.
  • Display parameter description and values in English or metric units.
  • Display trip data.
  • J1708 to PC Link feature allows the Pro-Linkr Plus to be connected to a personal computer.
  • Printer Output allows you to print truck data list, diagnostic, codes, trip information or snapshot data.
  • Programmed with simple menus to easily navigate technicians through a variety of diagnostic functions.
  • Snapshot modes for recording data triggered by any key, any trouble code or specific PID/SID for capturing intermittent problems.
  • Terminal Output (VT Pro-Link) allows you to display Pro-Link information on a PC terminal screen.
  Power Line Carrier (PLC) Test Application For Trailer ABS
  • Effective March 2001, a Federal Government mandate required that heavy-duty trucks have an in-cab trailer ABS warning lamp.
  • Using a new SAE standard called PLC communication, the change requires trailer ABS ECU's to communicate with the tractor ECU via the J560 power line to activate the warning lamp.
  • NEXIQ's PLC Converter (sold separately) is also required for PLC communication.
  • The PLC test application is easy to use and provides the ability to:
  • Test tractor and trailer coupled or trailer independently for MID messages.
  • Requires NEXIQ PLC Converter Kit (MPS601020).
  • Toggle in-cab trailer ABS warning lamp ON/OFF to confirm operation.
  • Verify trailer ABS ECU for MID 10 and MID 11 messages.

Heavy Duty Standard Application Card fo the MPC, Pro-Link Plus® and Pro-Link Graphiq™
