MPC Multi-Protocol Cartridge

Non-stock item, manufacturer drop ship; please email service@toolsource.com for cost and lead time.

MPC Multi-Protocol Cartridge - Interface for use with PCMCIA Memory Cards

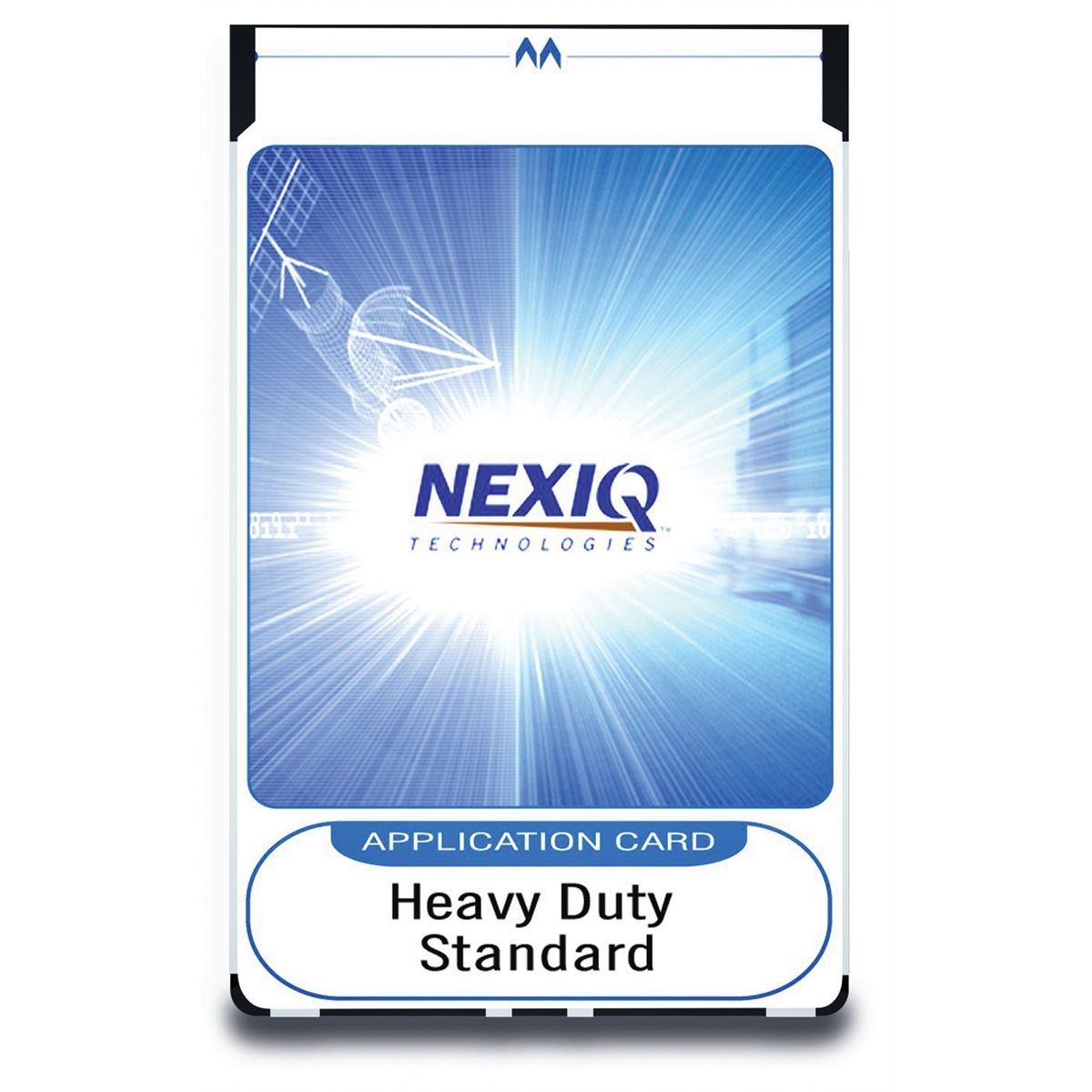

The Multi-Protocol Cartridge (MPC) is an Intel-based Pro-Link® Plus compatible cartridge designed to diagnose today`s J1708, J1939, 160 Baud, ISO 9141 vehicles. It provides a new platform that greatly enhances the flexibility of the Pro-Link, and extends the life of this most versatile tool. To address advanced capabilities provided by manufacturers, the MPC uses PCMCIA cards. The cards are plugged into the back of the unit, and provide additional functions unique to each manufacturer.

Applications Currently Supported (Cards sold separately)

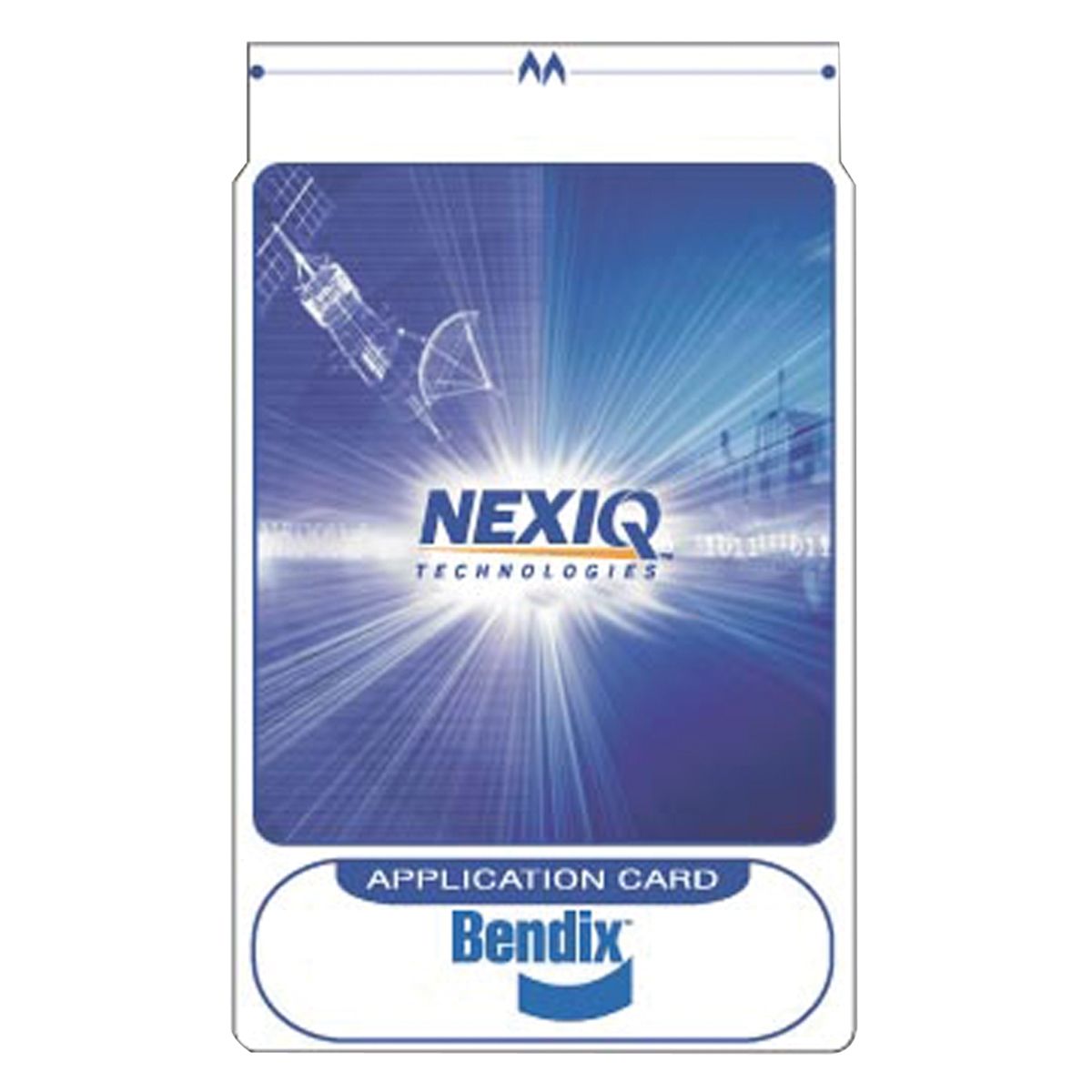

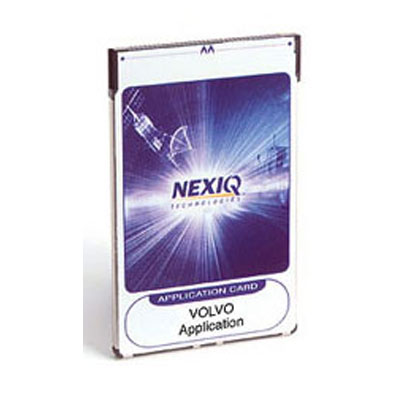

• Detroit Diesel, Mack Trucks,Volvo Vectro II, Allison, Eaton, Meritor WABCO, Bendix, Meritor Transmission, Navistar

MPC Cartridge Features:

J1708, J1939, 160 Baud, ISO 9141.

Supports Memory Cards to address manufacturer specific needs.

Snapshot feature.

Custom data list.

Easy application updates via RS232 side port.

Printer support.

Future MPC enhancements by side port.

Heavy duty systems diagnostic application features.

Menu-based for ease of operation.

Identifies ECMs available on vehicle for diagnosis.

Automatic or Manual MID (Message Identification) selection.

Displays diagnostic fault codes, including failure mode identifiers (FMIs).

Data Display Features
• ECMs Available
• Active/Inactive Codes
• Maximum Road Speed
• Road Speed Status/MPH
• Cruise Active
• Cruise Switch
• Cruise Set /Coast /Resume /Accel /Brake /Clutch Switches
• Cruise Set MPH
• Cruise High Limit MPH
• Cruise Low Limit MPH
• PTO Set /Coast /Resume /Brake /Clutch Switches
• Engine Load
• Barometric Pressure PSI
• Governor Droop RPM
• Rated Engine Horsepower
• Battery Volts
• Fuel and Oil Temperatures
• Fuel Rate GPH / Total Gallons
• PTO Set/Idle/Engine RPM
• Change Reference Number
• Component Make
• Model Number
• Engine PTO Hours
