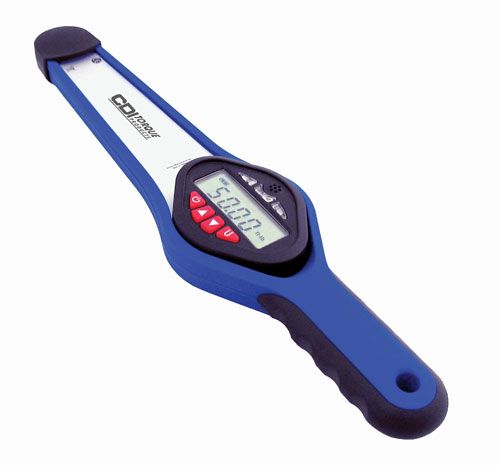

3/8" Drive Electronic Dial (ED) torque wrench features solid state electronics for accurate torque application and measurement. ED's design provides easy set-up and usage.
Features:
- 4 units of measure... ft-lbsin lb, Nm, kg.cm.
- Accuracy: ? 1% of indicated value CW & CCW, from 20% to 100% of full scale.
- 3 step LED visual signal system
- YELLOW LIGHT = approaching target torque
- GREEN LIGHT = target torque reached
- RED LIGHT = over torque indicator
- Audible tone when desired torque is reached.
- Alarm tone sounds if wrench is overtorqued.
- Ergonomically designed wrench body.
- Display can be turned 180 degrees to allow left hand usage.
- Battery cover designed to be aviation FOD proof.
- Holds "peak" torque reading for 10 seconds.
- Constructed of special Capron(R) material for long life and durability.
- Resistant to the majority of chemicals used in industrial environments.
- Wrench can be hung on tool board.
- Bar graph displays orientation of torque application (left or right hand).
- Uses standard 9 volt alkaline battery.
- N.I.S.T. traceable certificate of calibration included.
- Meets or exceeds ASME B107.28 - 2005
Specifications:
- Product Code 2502ED
- Drive: 3/8"
- In. Lb. 60 - 600
- Ft. Lb. 5 - 50
- Nm 6.79 - 67.79
- Kg. Cm. 69 - 691.27
- Length: 14.5" (368 mm)
- Weight: 1.51 Lbs. (.68 kgs)
A 15% re-stocking fee will be charged for return of item (unused)
CDI 6002ED 3/8" Electronic Dial (ED) Torque Wrench - 60-600 in-lbs
