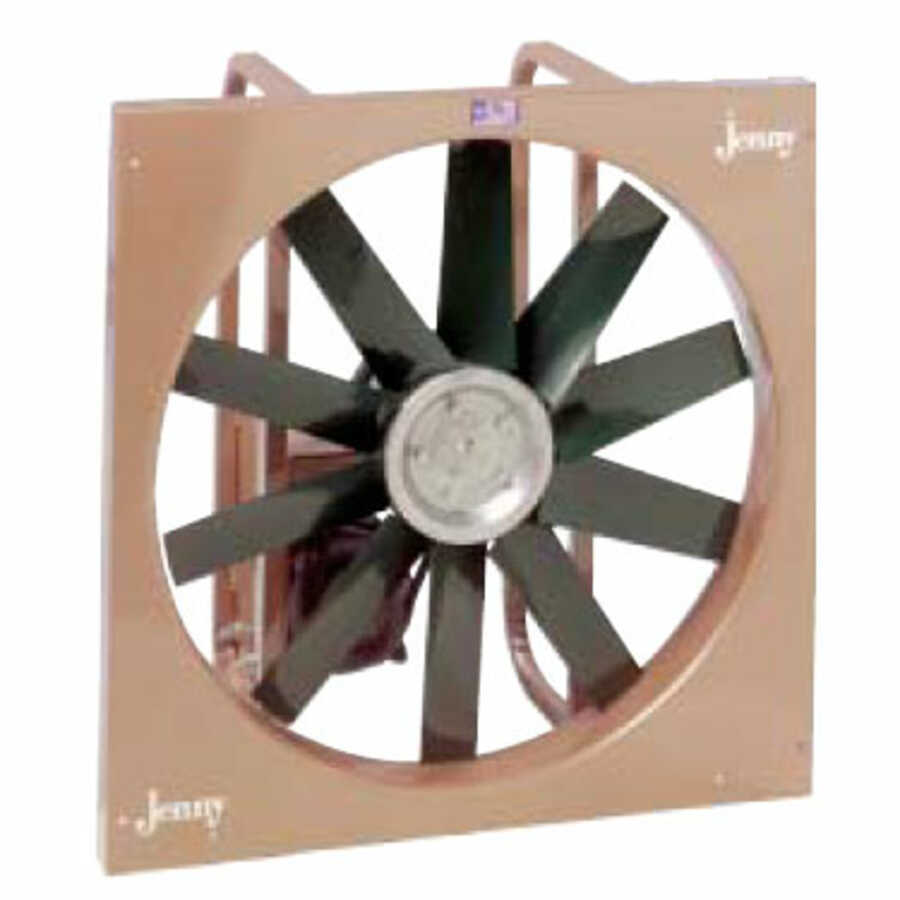

Explosion Proof Fan 1/3 HP Variable Speed 24 Inch Blades

Rugged, dependable Jenny explosion proof fans are available in either direct driven 16 and 20 inch models or belt driven 24 inch models. All models feature totally enclosed explosion proof motors and are designed for years of worry-free operation.

These units conform to all OSHA specifications. All explosion proof fans are equipped with a spark resistant polypropylene blade.

Features:

• Fully assembled. Ready to operate.
• Each fan has its own properly matched, formed venturi for highest performance.
• Spark resistant polypropylene blade has a rugged cast aluminum hub.
• Sturdy, all welded construction steel frame.
• Corrosion resistant powder coated finish.
• Rugged safety backguard standard on direct drive models.
• Variable speed models with solid state variable speed control.
• All models have totally enclosed fan cooled explosion proof motors with built-in automatic reset overload protection.
• Motors are UL listed for Class 1, Group D and Class II, Groups E, F and G atmospheres.

Dimensions:

• Blade Size: 24"
• Width: 28"
• Height: 28"
• Depth: 22"

Specifications:

• Model B2433XV
• H.P. 1/3
• R.P.M. 1050-600
• Shp. Wt. 80 lbs.
• CRM 0" S.P. 4690-2680
• CRM 1/8" S.P. 4520-2590
• CRM 1/4" S.P. 4200-2402

$85 standard freight fee. Applies to direct shipping points within the 48 continental US states. Rural Area Surcharge may apply.

• *An additional $40.00 will apply to all residential deliveries of heavy-equipment.
• *For lift-gate service, add $135.00.

Jenny Products B2433XV-A24 Explosion Proof Fan
