Ruggedized Non-Recording Video Scope

Name: Ruggedized Non-Recording Video Scope
Brand: General Tools & Instruments
SKU: 138227
Price: 162.93 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

larger image

Features:

Big, bright color LCD for crystal-clear real-time video imaging
9mm (0.35 in.) diameter x 1m (39 in.) long camera-tipped probe is thin enough to fit into very narrow spaces
2m and 3m long, 9mm diameter probes are available
Super thin 5.5mm dia. probes in 1m, 2m and 3m lengths are also optionally available
All probes are oil, water and dust-proof to IP67 standard. TheDCS280's wand-type grip and monitor are IP54 splash -proof.
Adjustable LEDs in camera head illuminate dark areas
Unit is drop-resistant to 1m height and comes in aprotective hard case
Invert what you see 180? to read labels right-side upand ZOOM video up to 200% to show details
Pays for itself quickly: Avoid the cost and trouble of tearing down engines
One-handed operation frees your other hand to use tools AV Out jack enables video connection to any NTSC television
Includes four useful probe tip accessories
3 year limited warranty

Applications:

Inspecting cylinders, valves, diesel injectors and glow plugs
Viewing behind body panels and under the dashboard for electrical wiring and connections problems
Examining for corrosion and wear in hard-to-see areas
Inspecting fluid lines and leaks
Detecting leaks, cracks, corrosion, blockages and deposit buildup in ducts and piping
Reading inaccessible or hidden part or serial numbers
Inspecting inside walls for mold, insect or rodent infestation, and wiring and piping
Performing maintenance inspections of pumps, valves, compressors, process equipment, heating and cooling equipment, gear boxes, fabricating machines and other industrial equipment

Specifications:

Display Size/Type: 2.4 in. (61mm) diagonal TFT color LCD
Display Resolution: 320 x 240 pixels
Monitor Controls: 180? flip, 1 to 2X zoom in 0.2 steps,brightness + and -
Probe Diameter/Type: 9mm (0.35 in.) flexible-obedient
Probe Length: 1m (39 in.)
Probe Field of View: 60?
Probe Depth of Field: 1 in. (25mm) to infinity
Camera Light Source: 2 adjustable-brightness white LEDs
Impact Resistance: To height of 1m (39 in.)
Water, Dust, Splash Resistance Levels: Camera-tipped probe designed to meet IP67;Grip and monitor designed to meet IP54
Operating Temperature/Humidity: 32? to 113° (0? to 45°) @ 5 to 95% RH
Dimensions of Console: 10 x 3.6 x 2.3 in. (254 x 91 x 58mm)
Weight of Console: 1 lb. (454g)
Dimensions of Case:15 x 11 x 3.5 in. (381 x 279 x 89mm)
Weight of Case and Contents:4 lb. (1.8 kg)
Power Source:4 "AA" batteries (included)

Includes:

Video Inspection System with Wand-type Gripand 2.4 in. (61mm) Color LCD Monitor
1m (39in.) Long, 9mm (0.35 in.) DiameterFlexible-obedient Probe
Four Probe Tip Accessories (Thread Protector,Magnetic Pickup, Pickup Hook, 45? Mirror)
"AA" Batteries
Custom Hard Case
User's Manual
3 Year Warranty

All returns on General Tools & Instruments products have a 20% restock fee.

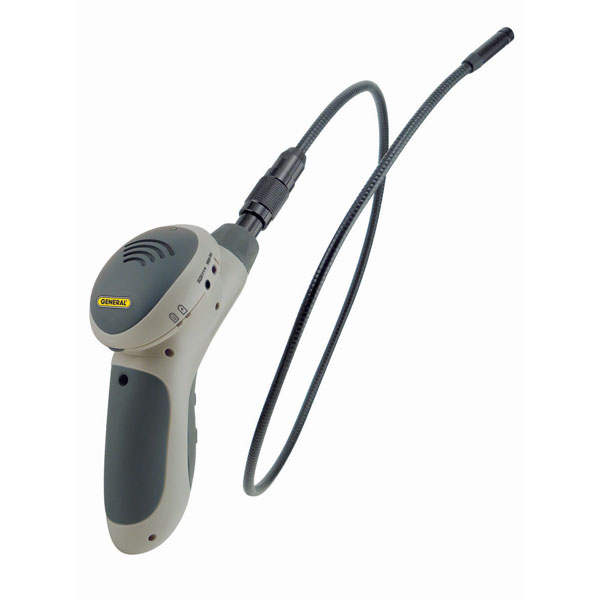

General Tools & Instruments DCS280 Ruggedized Non-Recording Video Scope

Other products
General Tools & Instruments Homepage
Model: 138227
Shipping Weight: 2lbs
Manufacturers Part #: DCS280
Manufactured by: General Tools & Instruments
Also Known As: DCS280, GHMDCS280, GHDCS280
