On-Car Injector Flow Bench

Three automated tests will quickly identify any Injector problem within minutes!

• Test injectors without removal.
• Fast, easy hook-up.
• Reduce diagnostic time to minutes.
• Tests foreign & domestic (Including GM SCPI Systems).
• Using Patented technology, the On-Car Injector Flow Bench will easily locate the cause of these common symptoms: Rough Idle, Hesitation, Surges, Misfires, Intermittents, and Emission Failures.

High Current Ohms / Inductance (Electrical) Test

• Compare ohm values to factory specifications.
• 12 volt high current tests as if injectors were driven by PCM.
• Measures magnetic strength (inductance) of injector coil.
• Quickly Identifies:
  • Coil problems that can't be detected with DVOM ohms test.
  • Weak or imbalanced injector coils.
  • Partially shorted or open injector coils.


  Steady Flow Test
• Measures maximum fuel flow.
• Tests for overall injector flow balance.
• Test results compared to database of OEM flow rates.
• Quickly identifies:
  • Clogging in basket, body or pintle.
  • Spray pattern problems.


  Pulsed Flow Test
• Measures flow using a series of injector pulses.
• Compares pintle response across all injectors.
• Quickly identifies:
  • Mechanical problems such as weak springs and sticking pintles.

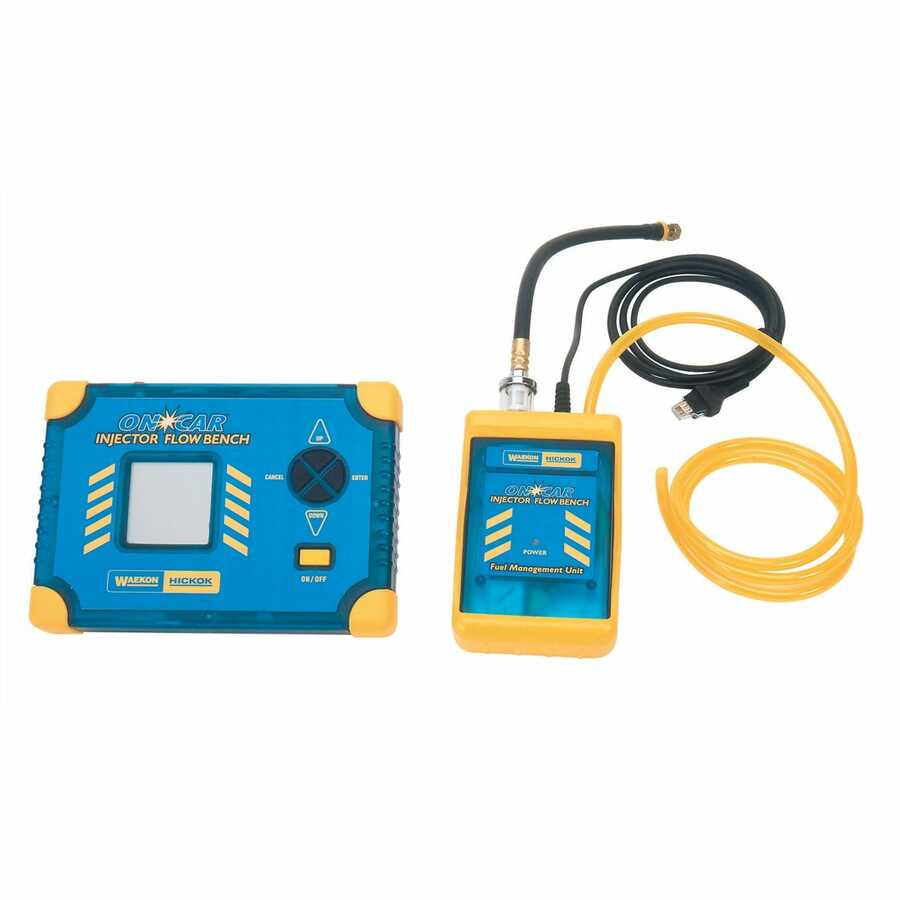

Waekon 45565 On-Car Injector Flow Bench
