Pro2 Oxygen / Lamda Sensor Tester

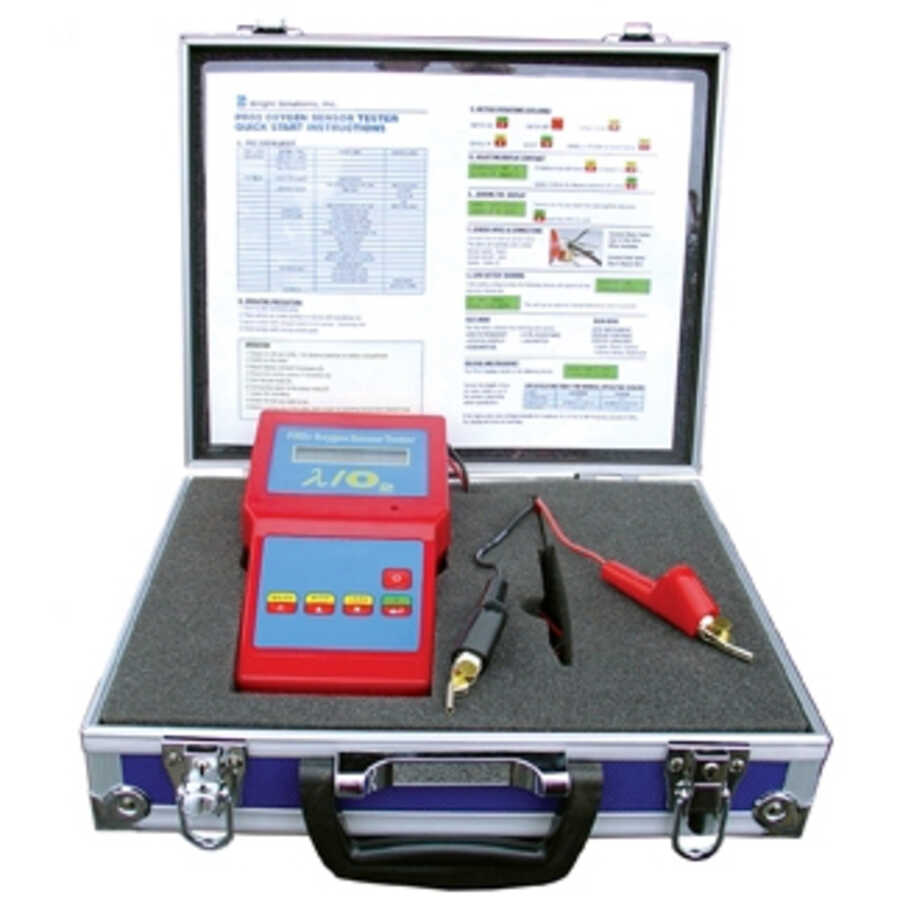

Bright Solutions E67000 PRO2(TM) Oxygen/Lambda Sensor Tester

• Tests zirconium & titanium oxygen sensors.
• Works on all oxygen sensors from single wire up to four wire.
• For heated or unheated oxygen sensors.
• Numeric Sensor Display shows Max. Voltage, Min. Voltage and Switching Frequency in Hertz.
• Graphic Sensor Display shows a sensor input voltage waveform with the option to show the sensor switching in real time at intervals of 0.5, 1, 2, or 4 seconds eliminating the need for an oscilloscope.
• Diagnostic Mode automatically checks the condition of the sensor returning a definitive result in 10 seconds. If a sensor is not good the PRO2(TM) will indicate a cause such as high voltage, low voltage or failed frequency. The PRO2(TM) will also indicate if the tester is incorrectly connected (reverse polarity), if it`s an unrecognized type of sensor, a reversed input, short circuit input, open circuit input, etc.
• Heater Resistance shows the Ohms resistance of the heater element of heated sensors.
• Simulation for Zirconium Sensors forces voltage across the O2 sensor to simulate lean or rich to monitor the response of the engine control module.
• General Purpose DC Voltmeter allows the PRO2(TM) to be used as a volmeter with a maximum voltage input measurement of ? 14.5V. The maximum input voltage that the instrument can withstand is ? 24V.
• Up to 6 different languages selectable from menu.
• 16 character LCD display with adjustable lightness and darkness settings.
• Uses AA batteries - low battery warning displays on screen.
• No need to disconnect circuits, connection possible using unique probes.
• All connectors included.
