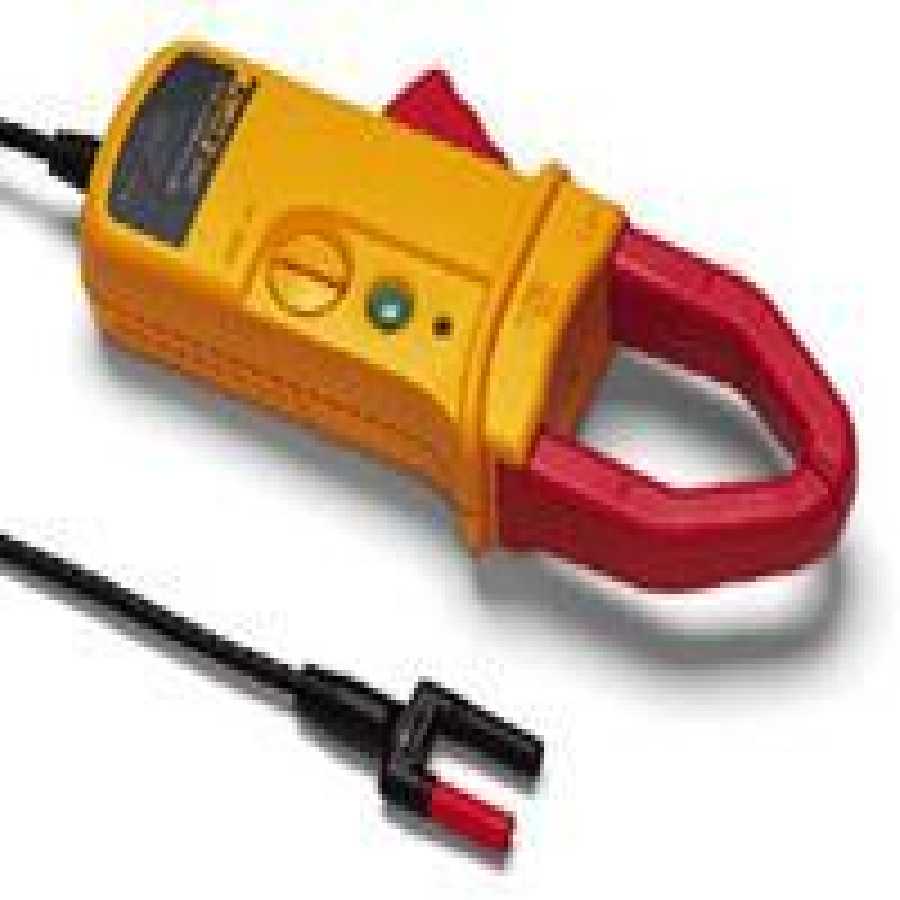

AC/DC Clamp-On Current Probe - 1000 Amp FLUI1010

The Fluke I1010 AC/DC Clamp-On Current Probe is a battery-powered dual Hall-effect, clamp-on probe that measures AC current to 700A and DC current to 1000A. It features a thumbwheel ZERO control that compensates for residual core magnetism, improving the range of DC measurements down to 1A. The probe has a maximum conductor size of one 1.18" (30mm) or two each 0.98" (25mm). It is accurate to n(2% of reading + 1A), 1A to 100A, DC to 62 Hz; n3%, 100A to 700A, DC and 48 Hz to 62 Hz; n5%, 700A to 1000A CD only. It is usable to 440 Hz.

Key Features:

• Battery-powered dual Hall-effect, clamp-on probe measures AC current to 700A, DC current to 1000A
• Thumbwheel ZERO control compensates for residual core magnetism, improving the range of DC measurements down to 1A
• Maximum conductor size: one 1.18" (30mm) or two each 0.98" (25mm)
• Accuracy: n(2% of reading + 1A), 1A to 100A, DC to 62 Hz; n3%, 100A to 700A, DC and 48 Hz to 62 Hz; n5%, 700A to 1000A CD only
• Usable to 440 Hz

Applications:

• Electrical troubleshooting
• Maintenance
• Repair
• Manufacturing
• Testing

Benefits:

• Clamp-on design allows for hands-free measurement
• Accurate measurements down to 1A
• Wide measurement range
• Long battery life
• Rugged construction

To learn more about the Fluke I1010 AC/DC Clamp-On Current Probe, please visit our website.
