The 80I-110s is compatible with any Fluke ScopeMeter Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.
- DC Range - 0.1A to 100A
- AC Range - 0.1A to 70A
- Accuracy - 0.1A to 10A, DC to 1kHz:n3% + 30mA; up to 100A add 15%; up to 20kHz add 12%
- Frequency Response (-3dB) - 100 kHz
- Zero Error Adjustment - yes
- Maximum Conductor Diameter - 0.4" (11.8mm)
- Maximum Conductor Size - 1 AWG
- Output Levels - 10mV/A, 100mV/A
- Output Cable - 1.6 meter with BNC termination
- Battery Life - 40 hours
- Warranty - 1 year
- Safety - CAT II, 600V; CAT III, 300V

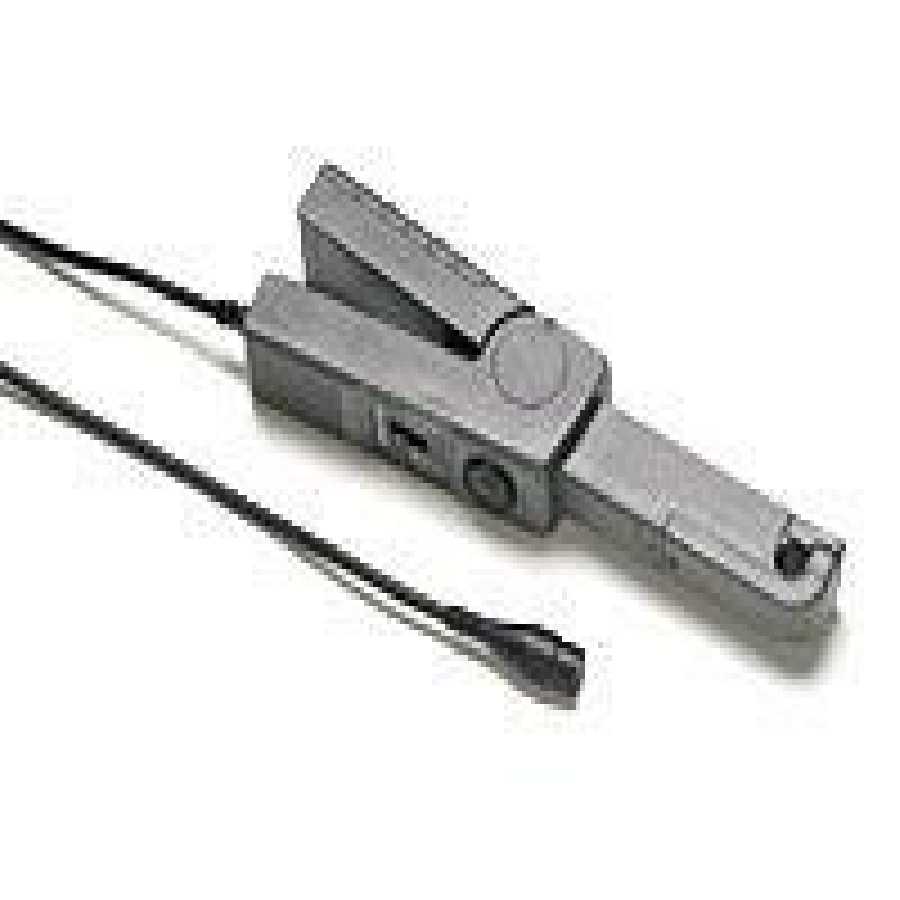

Fluke 80i-110s AC/DC Current Clamp 80i-110s
