Flexible Automotive Back Probe Pins - Electronic Specialties

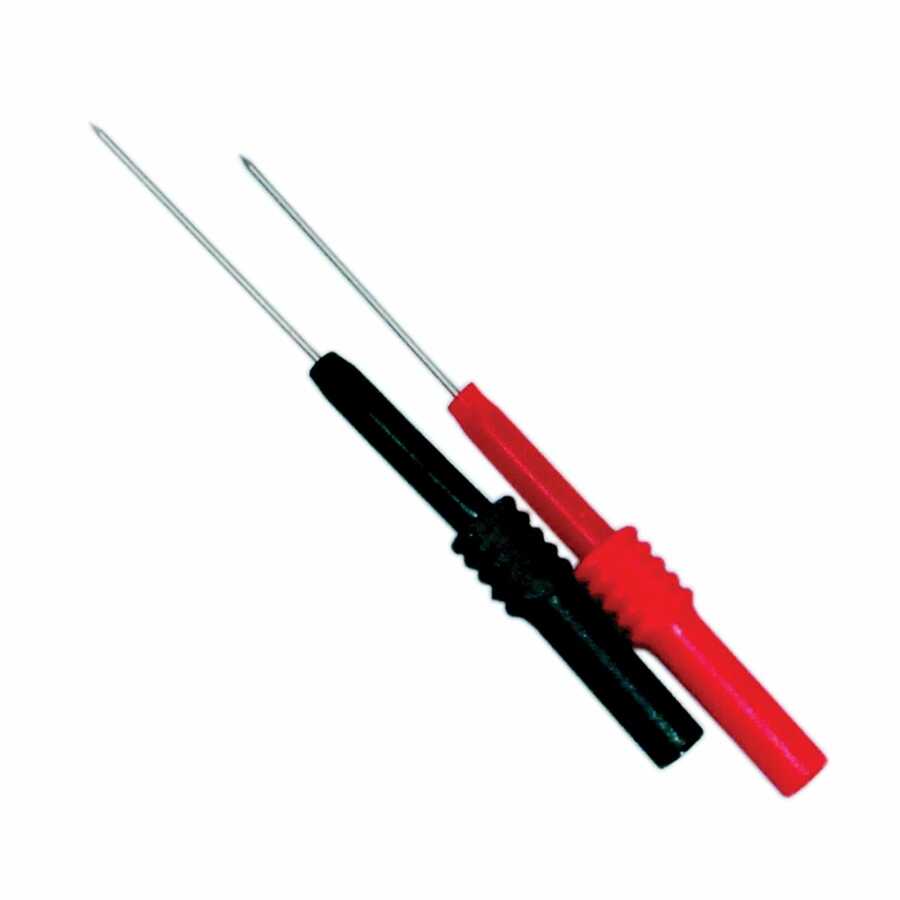

The Electronic Specialties 142-5 Flexible Automotive Back Probe Pins are professional-grade diagnostic tools designed for modern electrical system troubleshooting. These probes facilitate non-invasive electrical testing, allowing technicians to access circuits within sealed connectors and tight engine compartments without causing damage. They are crucial for maintaining wiring integrity and ensuring accurate readings during complex diagnostics.

Key Features

• Flexible, Insulated Shafts: Engineered to navigate challenging spaces behind crowded harnesses and into confined engine bays, these shafts allow technicians to reach test points without stressing wires or connectors.
• Ultra-Fine, Durable Tips: The precision-engineered tips provide reliable contact on small terminals, ensuring accurate readings while preventing damage to delicate connectors and wiring.
• Universal Tool Compatibility: Designed for seamless integration, these probes connect with most standard multimeters, lab scopes, and various automotive diagnostic tools that utilize banana plug or probe-style leads.
• Non-Destructive Testing: Enables effective back-probing without compromising terminal tension or insulation, which is essential for preventing costly wiring repairs and upholding vehicle reliability.
• Professional-Grade Construction: Built to endure repeated flexing, high under-hood temperatures, and the rigorous conditions typical of professional automotive and industrial service environments.

Applications

The 142-5 flexible back probe pins are invaluable for a wide array of electrical diagnostics across passenger cars, light trucks, and commercial vehicles. They are ideally suited for:

• Back-probing critical module connectors, including ECM/PCM, TCM, ABS, and airbag modules, without requiring harness disconnection.
• Directly testing sensor circuits such as O2, MAF, MAP, TPS, crank/cam, and wheel speed sensors at their respective connectors.
• Verifying power, ground, and signal integrity during voltage drop tests, continuity checks, and precise oscilloscope measurements.
• Checking inputs and outputs at fuse boxes, relay centers, and junction blocks located in challenging or hard-to-reach areas.

Specifications

• Manufacturer: Electronic Specialties
• Model: 142-5
• Weight: 1 lb
• Dimensions: 8 x 3.5 x 1 in
• Interface: Fits standard diagnostic and multimeter leads
