LOADpro Dynamic Test Leads - Electronic Specialties

Specifications

• Manufacturer: Electronic Specialties
• Model Number: 180

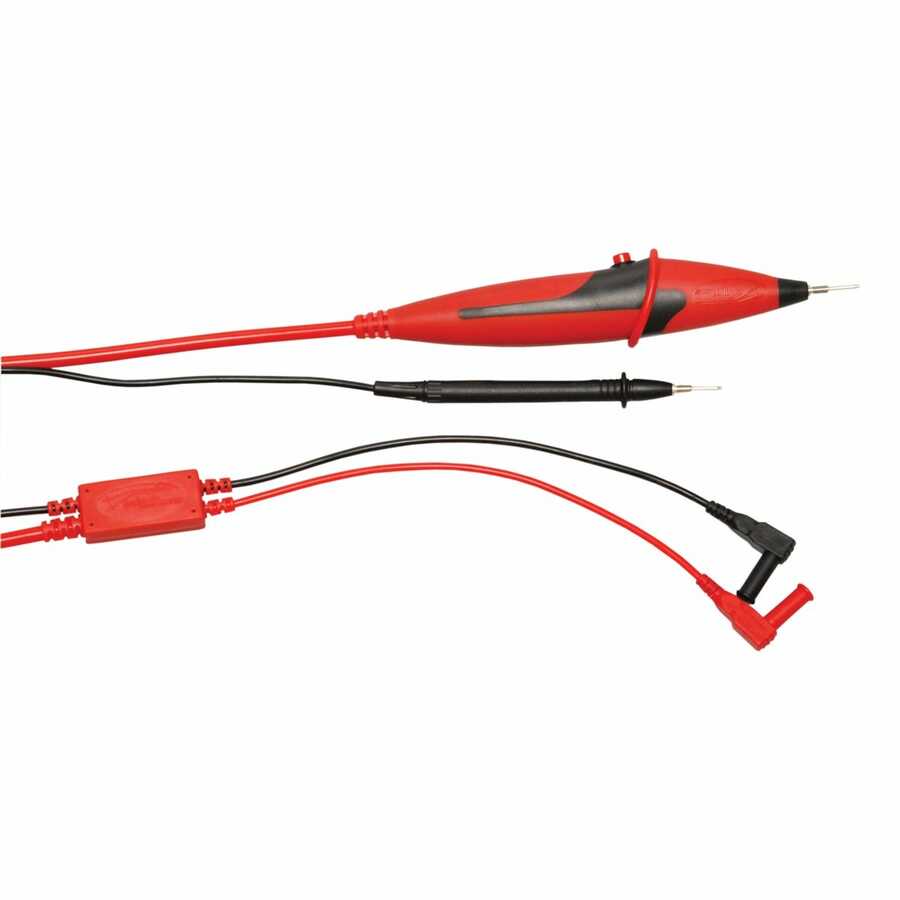

• Product Name: LOADpro Dynamic Test Leads
• Weight: 1 lbs
• Dimensions: 11.75 x 5.25 x 2.5 inches
• Load Application: Applies approximately 0.5 Amps on a 12 Volt system (40mA per volt) during testing.
• Voltage Compatibility: Designed for use on circuits up to 28.5 Volts.
• DMM Compatibility: Works with any Digital Multimeter (DMM) that uses standard banana plugs.
• Lead Length: 60 inches.

Key Features

• Dynamic Voltage Drop Testing: Instantly loads the circuit to perform accurate voltage drop tests with the press of a button, revealing hidden resistance.
• SteadyPin Probe Tips: Features unique tips with a small recess designed to sit firmly and securely on male ECM or connector pins, ensuring stable and reliable connections.
• Broad Digital Multimeter Compatibility: Seamlessly integrates with your existing Digital Multimeter, transforming it into a more powerful diagnostic tool.
• OEM Approved Design: Recognized and approved by original equipment manufacturers for dependable circuit diagnostics.
• Immediate Circuit Loading: Enables "on-the-fly" voltage drop measurements by applying a precise dynamic load to the circuit.

Applications

• Automotive Diagnostics: Essential for troubleshooting electrical systems in passenger vehicles, trucks, and other automotive applications.
• Heavy Duty Equipment: Effective for diagnosing electrical faults in construction equipment, agricultural machinery, and commercial vehicles.
• Marine & RV Maintenance: Identifies electrical issues in marine vessels, recreational vehicles, and associated electrical components.
• General Electrical Troubleshooting: Utilized across various equipment and systems to efficiently detect high corrosive resistance, shorts to ground, and open circuits.

Benefits

• Faster Fault Identification: Quickly pinpoints problems like high corrosive resistance, shorts to ground, and open circuits, significantly reducing diagnostic time.
• Enhanced Diagnostic Accuracy: Provides definitive test results by loading the circuit, preventing misleading voltage readings that can occur with unloaded checks.
• Reduced Rework and Costs: Helps technicians accurately identify the root cause of electrical issues, minimizing unnecessary parts replacement and repeat repairs.
• Reliable and Stable Connections: SteadyPin probe tips ensure a firm connection to pins, eliminating the frustration and inaccuracies often associated with unstable probe contact.
• Maximized Tool Utility: Leverages your existing Digital Multimeter, offering a cost-effective upgrade to advanced circuit testing capabilities without requiring a dedicated, specialized tool.
