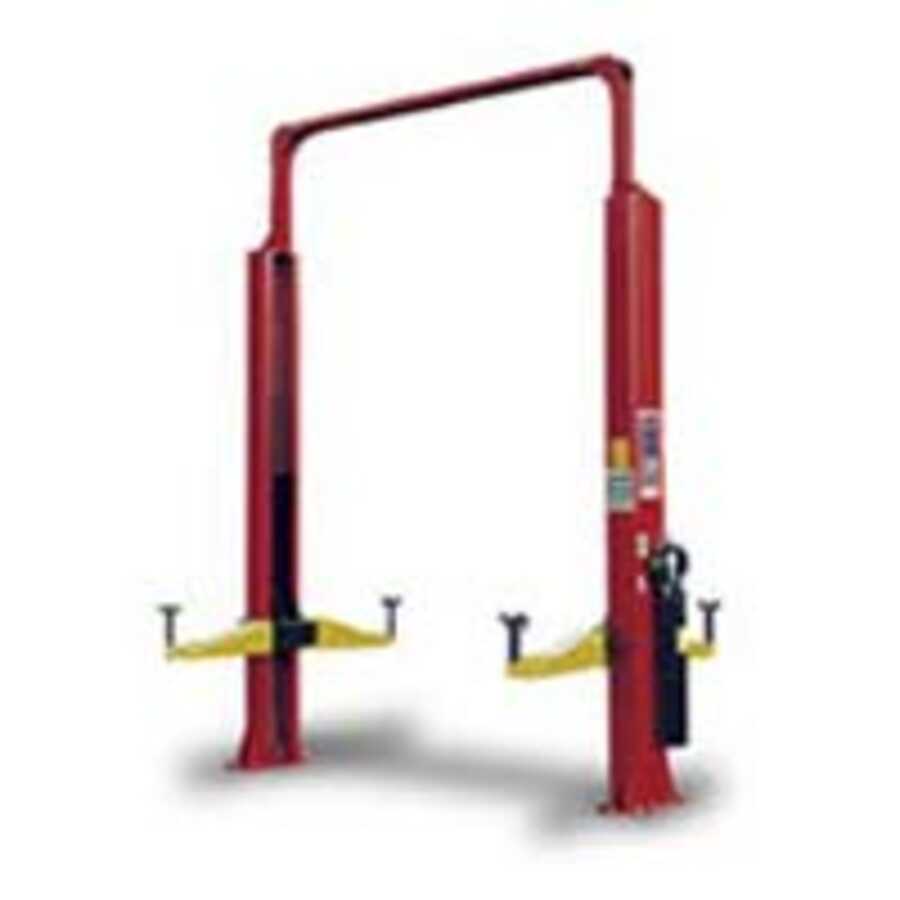

S1500 Series Two-Post Lift

Ammco-Coats | S1500 Series Two-Post Lift | 4S215AR1 | FREE FREIGHT!

Overview

The Ammco-Coats S1500 Series Two-Post Lift is Ammco-Coats' heaviest duty two post lift. It has a 15,000 lb. capacity and an overhead beam clear floor symmetric design, with ceiling height adjustable from 16 1" feet down to 14 5" feet. It features a large profile column construction for more strength and rugged durability, a dual cylinder direct drive lifting system, cable equalization with brass bushing steel pulleys for low maintenance and longer life, and a single point pneumatic safety lock release (locks automatically re-engage when palm button is released). The S1500 Series Two-Post Lift is ALI/ETL Certified.

Key Features

• 15,000 lb. capacity
• Overhead beam clear floor symmetric design, with ceiling height adjustable from 16 1" feet down to 14 5" feet
• Large profile column construction for more strength and rugged durability
• Dual cylinder direct drive lifting system
• Cable equalization with brass bushing steel pulleys for low maintenance and longer life
• Single point pneumatic safety lock release (locks automatically re-engage when palm button is released)
• ALI/ETL Certified

Applications

The Ammco-Coats S1500 Series Two-Post Lift is ideal for use in a variety of applications, including:

• Automotive repair shops
• Heavy duty truck repair shops
• Industrial maintenance shops
• Government and military facilities
• Fleet maintenance operations

Benefits

The Ammco-Coats S1500 Series Two-Post Lift offers a number of benefits, including:

• Heavy duty construction for durability and long life
• Easy to use operation
• Safe and secure lifting
• ETL and ALI certified

Specifications

• Maximum Capacity: 15,000 LBS.
• Overall Width: 144 1/2"
• Width Between Columns: 120"
• Drive-Thru Width: 111"
• Overall Height: 193 - 173" Adjustable
• Height to Lowered Lift Pad: 6 1/2"
• Under Bar Clearance: 186"
• Height to Raised Low Lift Pad: N/A
• Height to Raised High Lift Pad: N/A
• Front Arm Length: N/A
• Rear Arm Length: N/A
• Max. Lifting Height: 75" No Adapter
• Power Requirement: 230v AC - 60Hz 1 Ph 30A
• Shipping Weight: 3,350 lbs.

To learn more about the Ammco-Coats S1500 Series Two-Post Lift, please visit our website.
