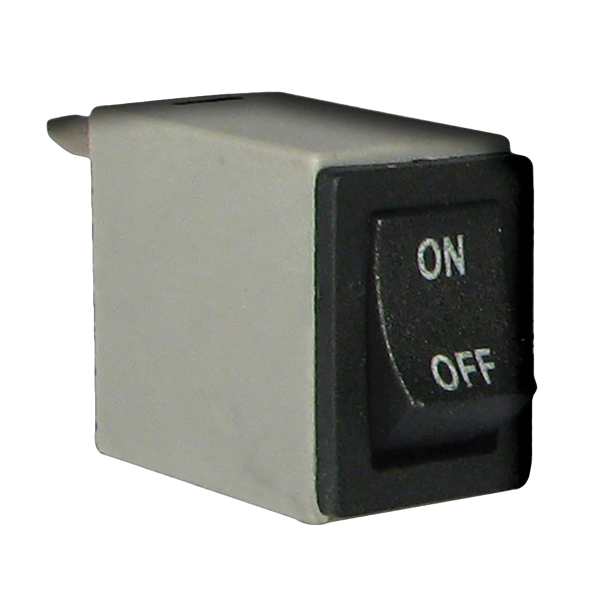

Automotive Relay Bypass Switch 9036-1 -

Part #: 9036-1

Specifications

The Automotive Relay Bypass Switch 9036-1 is a compact diagnostic tool designed for automotive electrical systems. This specific model is identified by 9036-1. Its lightweight and small form factor enhance portability and ease of use in various diagnostic scenarios.

  • Model Number: 9036-1
  • Weight: 0.25 lbs
  • Dimensions: 1.5 x 1 x 0.7 inches
  • Compatibility: Designed for standard automotive relay circuits.

Key Features

This bypass switch offers a straightforward method for testing and bypassing automotive relays. It provides direct access to relay circuits without requiring wire cutting or complex setups.

  • Direct Relay Bypass: Enables bypassing a relay to test circuit functionality or component operation.
  • Compact Design: Small footprint allows for easy maneuverability in tight engine compartments.
  • Non-Invasive Connection: Connects directly into existing relay sockets, preserving vehicle wiring integrity.
  • Durable Construction: Built for repeated use in demanding workshop environments.

Applications

The Automotive Relay Bypass Switch 9036-1 serves as an essential tool for diagnosing and troubleshooting a wide range of automotive electrical issues.

  • Automotive Electrical Diagnostics: Accurately identify faults within relay-controlled circuits.
  • Troubleshooting Faulty Relays: Quickly determine if a relay is the cause of an electrical problem in systems like fuel pumps, starters, lighting, or HVAC.
  • Temporary Circuit Activation: Manually power circuits for testing components or verifying wiring continuity.
  • Professional and DIY Use: Suitable for automotive technicians, mechanics, and enthusiasts performing vehicle maintenance or repairs.

Benefits

Using the Automotive Relay Bypass Switch 9036-1 streamlines the diagnostic process, offering tangible advantages for troubleshooting vehicle electrical systems.

  • Saves Time: Quickly isolates electrical issues, reducing diagnostic time and effort.
  • Reduces Costs: Helps prevent unnecessary replacement of components by accurately pinpointing the problem source.
  • Simplifies Complex Diagnostics: Transforms intricate electrical troubleshooting into a more manageable task.
  • Prevents Damage: Avoids the need for jury-rigged solutions that can damage vehicle wiring or components.
  • Enhances Efficiency: Provides a reliable method for verifying relay and circuit integrity, improving overall diagnostic workflow.
Only 1 left in stock - order soon

$15.15

Free shipping on orders over $250
Lower 48 states and DC. Excludes freight and oversize items.
Add to Cart:
  • A generic image
    Other products
    Homepage
  • Model: 240550
  • Shipping Weight: 0.25lbs
  • Manufacturers Part #: 9036-1
  • Also Known As: IPA9036-1, IPA-9036-1, IP9036-1, IPA9036-1

This product was added to our catalog on Saturday 07 January, 2017.
