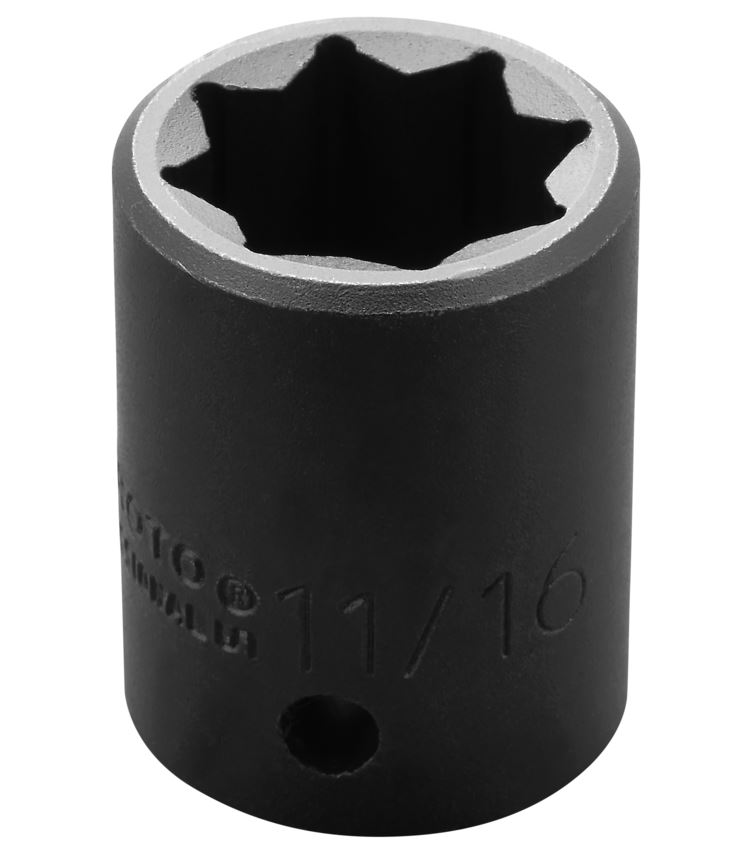

1/2" DRIVE IMPACT SOCKET 11/16" - 8 POINT

  • Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls.
  • Tight tolerances for snug fit on fastener.
  • Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners.
  • Made from high-strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude.
  • Impact sockets are used wherever powered drive tools are used to install or remove fasteners.
  • Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application.
  • Proto® 8 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
  • Socket size stamped on tool for easy identification.
  • Side locking hole.
SIZE [IN] 11/16
NUT END OUTSIDE DIAMETER [IN] 1-3/16
DRIVE END OUTSIDE DIAMETER [IN] 1-3/16
NUT DEPTH [IN] 27/32
BOLT CLEARANCE DEPTH [IN] 27/32
OVERALL LENGTH [IN] 1-1/2
WEIGHT [LBS] 0.27
DRIVE SIZE [IN] 1/2
POINT SIZE 8
FINISH Black Oxide
LENGTH TYPE Standard
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012

Usually In Stock
Usually ships in 24-48 hours
Manufacturer Direct

$15.75

This product was added to our catalog on Thursday 05 December, 2019.
