Battery and Electrical System Analyzer

Midtronics | Battery and Electrical System Analyzer | MDX-650

SAFE to use anywhere, even in front of the customer.
FAST and accurate testing of the battery or electrical system in seconds.
SIMPLE, proven user interface eliminates guesswork and user error to provide an accurate analysis every time.

The MDX Series advanced features include:

• Multiple vehicle applications, battery types, and rating systems
• Large back-lit screen and improved user interface
• Integrated printer option
• Improved Removable Cable Design

Which helps to:

• Save time and money by improving battery and electrical diagnostic productivity
• Improve customer service by reducing wait time
• Increase sales by proactively testing batteries and electrical systems
• Increase customer satisfaction by identifying potential problems before they occur.

Vehicle Applications:

• Automotive
• Motorcycle
• Marine Cranking
• Lawn and Garden
• Group 31
• Commercial
• 4D/8D

Battery Type:

• Regular flooded
• AGM flat plate
• AGM spiral
• Gel

Global Systems:

• CCA, CA, MCA, JIS, SAE, EN, DIN, IEC 6 and 12 volt batteries
• 12 & 24 volt charging system testing

Advanced Starter/Alternator Testing (650 / 650P Only):

• Quick starter analysis without disabling the ignition
• Advanced menu-driven interface for a complete charging system analysis in seconds.

Additional Features:

• VIEW/PRINT to view last test from memory or print another copy
• Large back-lit display keeps operation simple for all levels of users
• Data card reader for future software upgrades
• 4 or 10 Removable cable set for running the test from the drivers seat
• QC MODE for performing quality control testing
• Multiple Languages
• COUNTER Information to track activity, including good vs. replace, batteries and system test results

Specifications:

• Display: 5-line Text/Graphical Backlit Display
• Operating Temperature: 0C to +50C (32F to +122F)
• Test Range: CCA: 100-2000 BY 5 CA: 100-2000 BY 5 MCA: 100-2000 BY 5 JIS#: By Part Number EN: 100-2000 BY 5 DIN: 100-1200 by 5 SAE: 100-2000 by 5 IEC: 100-1200 by 5
• Voltage Range: 1Vdc 30Vdc
• Cable Length: 4/ 122cm (MDX-640) 10/305cm (MDX-650/650P)
• Power Requirements: Uses the power of the battery under test and 6 AA Internal Batteries
• Languages: English Spanish French Canadian Portuguese
• Housing Material: Acid resistant ABS plastic
• Dimensions: MDX-650: 19.5cm x 10cm x Display: 5-line Text/Graphical Backlit Display5cm (7.7 x 3.9 x 2.4)
• Weight: 544g (1.2lbs)

Available Accessories:

• A156 Tool Bag Carrying Case
• A207 Replacement 4 Battery Test Cable
• A208 Replacement 10 Battery Test Cable
• A033 Lead Stud Adapters, 2 male, 2 female
• A095 6 pack, thermal paper*
  *Replacement paper rolls available at most office supply stores

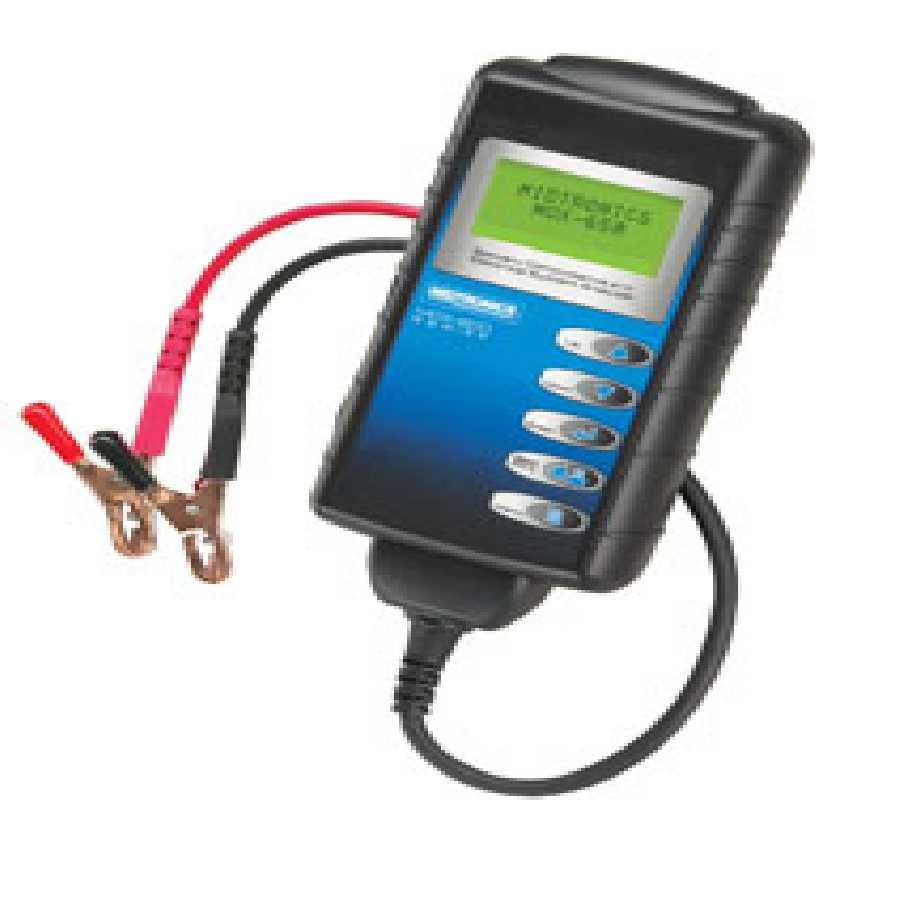

Midtronics MDX-650 Battery and Electrical System Analyzer
