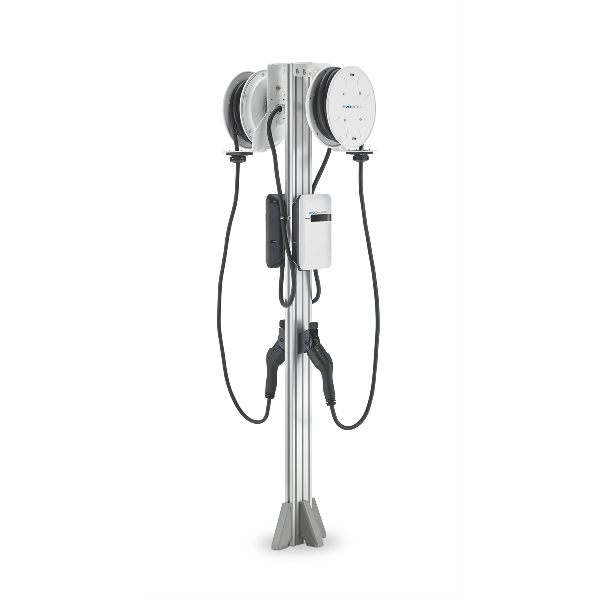

EVSE Electric Vehicle Charging Station, Dual Port

Features and Benefits: ?Compatibility - Compatible with all Electric Vehicles and Plug-in Hybrid Electric Vehicles sold in the United States and Canada, including Tesla (requires adapter) Connector / EVSE LEVSEl - SAE J1772 ?AC LEVSEl 2 Max Output Rating - 30A ?7.2 kW Maximum Output ? For use with dedicated 40A (or greater) Supply Circuit Alternate Adjustable Output Settings 24A ?5.76 kW Maximum Output ? For use with 30A Circuit Rating 16A 3.84 kW Maximum Output ? For use with 20A Circuit Rating Electrical Circuit / Input Power Requirements - 208-240VAC, 50/60 Hz., Single Phase ?Circuit Requirement: Dedicated ?Branch Breaker: Double pole ?Circuit Conductors: Line 1, Line 2, Earth Ground Input Power Connection - Hardwire Operational Ratings - NEMA 4, Indoor/Outdoor Rated ?Temp: -22?F to 122?F (-30?C to 50?C) ?Humidity: 95% RH Mounting: Two chargers and 2 EvoReels on a 6ft pedestal Cable Management - Standard Connector, Cable Holster, EVOREEL and 6 ft. pedestal included Dimensions - EVSE: 11.0 x 7.5 x 3.2 inches (28.0 x 19.0 x 8.1 cm) EVOREEL 13.8 X 12.0 X 9.2 inches (35.1 x 30.1 x 23.4 cm) Pedestal 6 ft. (1.8 m) tall Display & Indicators - LED Charge Status Indicators (Power/Ready, Charging, Fault) Standards & Compliance - Charging Station: UL/cUL Listed ?SAE J1772, UL 2594, UL 355, CSA The standard EvoCharge EVSE electric vehicle charging station comes non-networked with no activation required. The EVSE has a modern compact design with robust construction for maximum durability. The EvoReels are self-retracting and locking, has a convenient design for the clean, safe management of the charging cable and comes with a universal mounting bracket for wall, ceiling, or pedestal mounting. The 6 foot pedestal is made of high-strength aluminum suitable for single or dual station mounting with EvoReels.

Special Order
Contact For Details

Price: $4,894.36

Add to Cart:

This product was added to our catalog on Friday 17 September, 2021.
