Short Ram w/ Spring Return, 10 Ton

• Bronze plated piston rod resists scoring, and can be "dead-ended" at full capacity for maximum safety.
• Features 5 degree angled coupler port for easy hook-up.

Specifications:

• Capacity: 10 tons
• Stroke: 1-1/2"
• Extended Height: 5"
• Retracted Height: 3-1/2"
• Piston Rod Diameter: 1-1/2"
• Outside Diameter: 2-3/4"
• Cyl. Eff. Area: 2.24"
• Oil Capacity (cubic inch): 3.4
• Int. Pressure at Capacity: 8,943 PSI
• Tons at 10,000 PSI: 11.2
• Oil Port NPTF: 3/8"-18
• Type Piston Return: Spring
• Weight: 6 lbs.

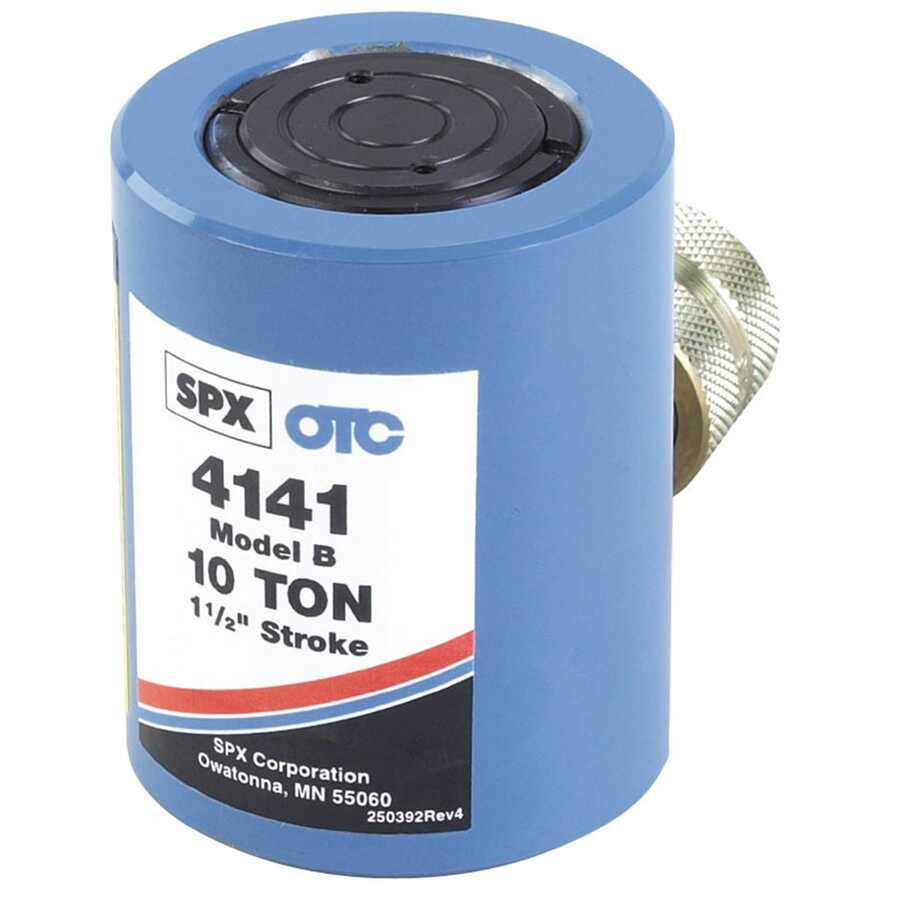

OTC 4141 10 Ton Short Ram With Spring Return
