- Cylinder Capacity: 10 Tons
- Stroke: 2-1/2"
- Retracted Height: 5-5/16"
- Extended Height: 7-13/16"
- Outside Diameter: 3"
- Piston Rod Diameter: 2-1/16"
- Center Hole Diameter: 49/64"
- Inches Between Base Holes: 2-3/8"
- Insert Thread Size: 1-3/4-12"
- Collar Thread: None
- Thread Length: None
- Oil Capacity: 5.52 cu. in.
- Internal Pressure at Capacity: 9,054 PSI
- Tons at 10,000 PSI: 11
- Base to Inlet Port: 1"
- Mounting Holes: 1/4-20"
- Base Cylinder Effective Area: 2.21 sq. in.
- Weight: 9 lbs.

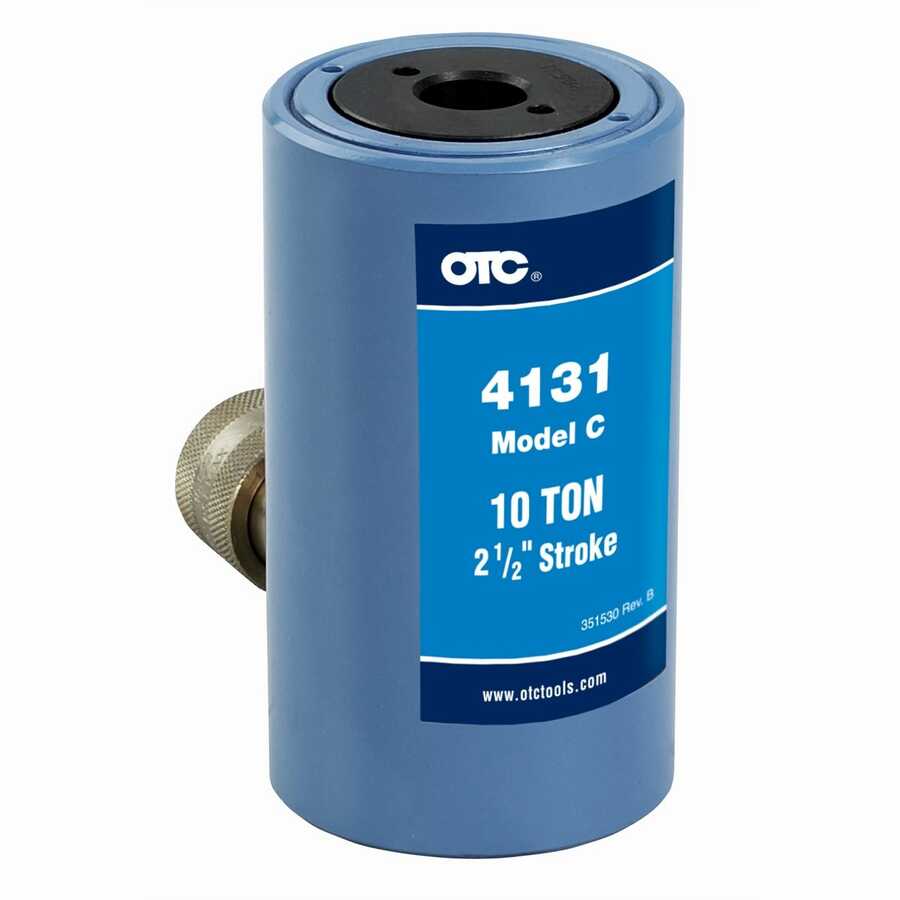

Image shows 4131 and other models, not included.
OTC 4131 Spring-Return Hollow Center Hydraulic Ram
