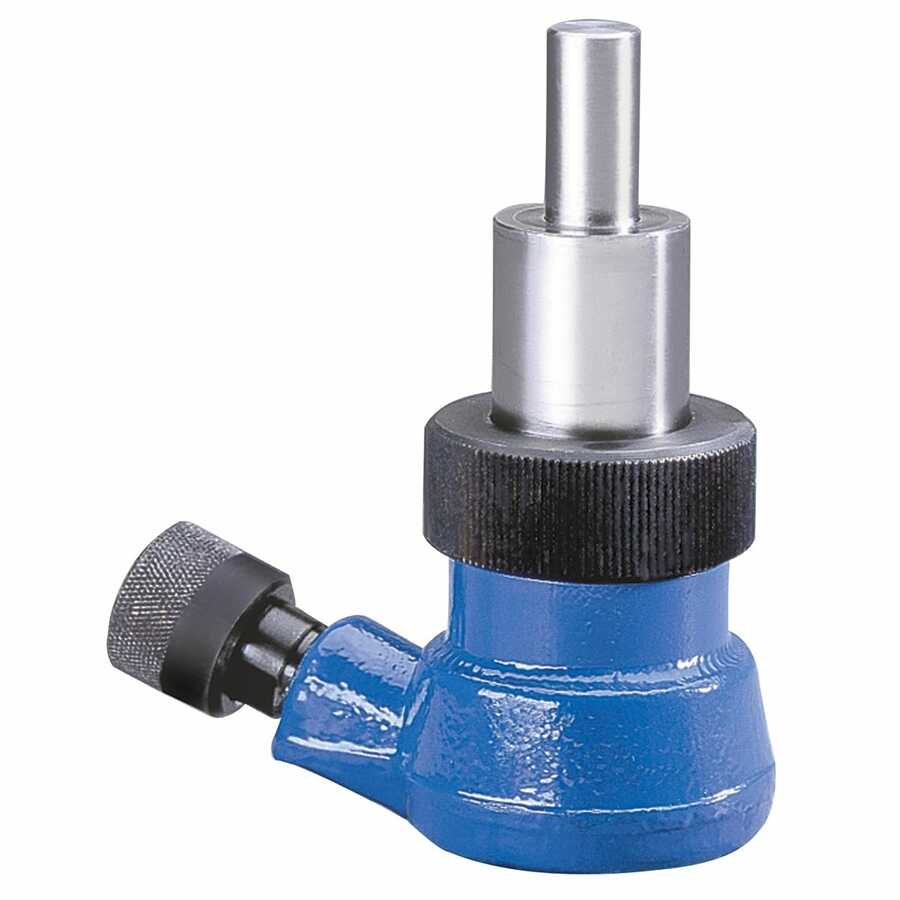

Two-Stage 4 Ton Telescoping Mini-Ram

A must have! Unique, versatile, telescoping, low profile, rugged, two-stage, extra-short ram. Designed for those remote or restricted spaces where you need a couple of inches of piston travel/extension. Drop-forged base with an angled port for minimizing hydraulic connection problems and a more stable "footing". You can replace the ram half coupling to make it compatible with the equipment you're presently using. Great for straightening frame rails and motor mounts. For even more versatility, add the 2' Extension Arm for inserting and/or placing the Telescoping Mini-Ram. Order SM14T-KIT for both the Telescoping Mini-Ram and Extension Arm and SM14T-ARM for just the Extension Arm.

Specifications:

• Maximum capacity: 4-ton (3.6 t) first stage, 1-ton (.9 t) second stage
• Retracted height: 2 5/16" (58 mm)
• Extended height: first stage 3 5/16" (79 mm), second stage 4 5/16" (109 mm)
• Port: 1/4-18 NPTF.

• 100% Made in USA.
• 2" of total piston travel.
• From 2-5/16" retracted height to 4-5/16" extended height.
• Low profile - gets into those confined areas.
• Angled hydraulic port.
• Standard 1/4-18 NPTF port allows you to replace the ram half coupling to make it compatible with your equipment.
