I-Bolt Universal Tow Eye with Safety Strap

The Steck I-Bolt: Universal Tow Eye allows towers, body shop technicians, and mechanics to safely load disabled foreign and some domestic vehicles on roll back wreckers and frame racks, without causing damage.

Vehicle manufacturers design specific tow eyes for each model car to pull the vehicle down the assembly line; it is included with the vehicle. However, each manufacturer has different diameters ranging from 1/2 " to 1" and either right or left handed threaded ends. These tow eyes can be used by towers and technicians to assist the loading of the vehicle but are often missing from the vehicle, or inaccessible when needed.

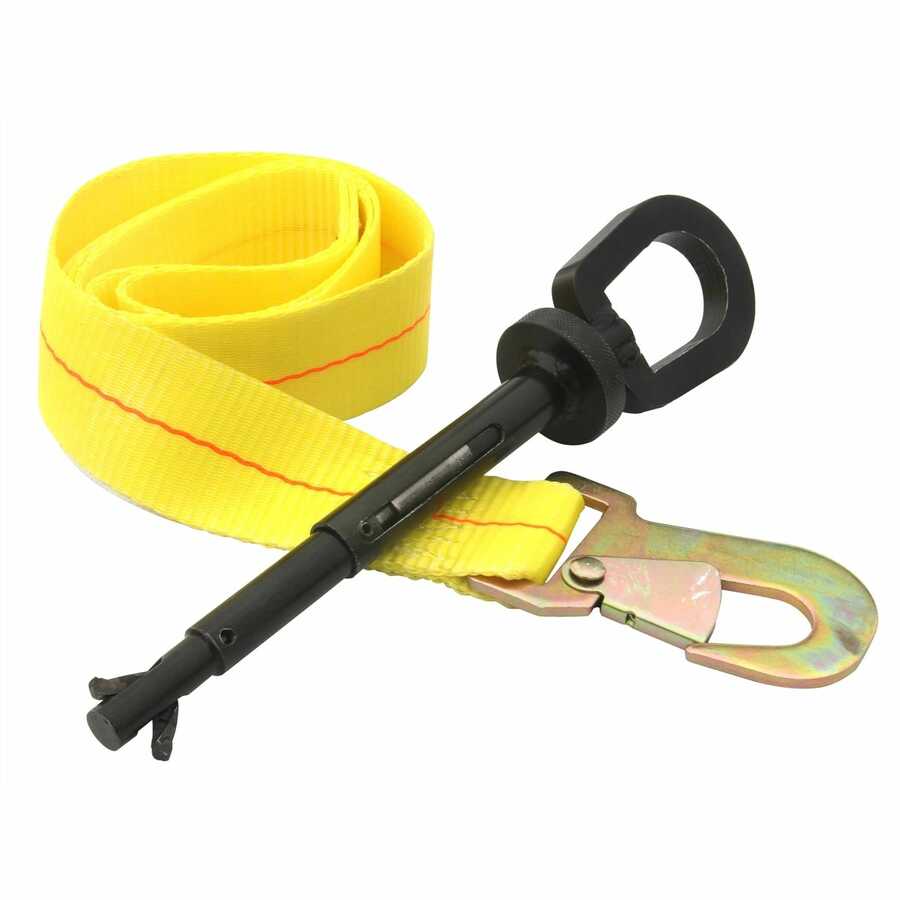

The I-Bolt is a 2" x 1 1/2 " loop connected to a 7" long steel shaft with unique gripping teeth that lock into the threaded holes on the front or rear of the vehicle. Insert the I-Bolt into the threaded hole, ideally behind the nut or the back of the hole, engage the gripping teeth by turning the loop clockwise (while holding the knurled 1 3/4 " knob) until the teeth engage behind the nut or in the threaded hole.

Key Features:

• I-Bolt is able to fit threaded holes having diameters of 1/2 " up to 1 1/4 ".
• This unique design provides a universal hook up solution for the 200+ vehicles identified in the Towing and Service Manual from AAA.
• Also included is a 6' x 2" polyester safety strap with a 4" looped end to wrap around the control arm or sway bar and a 3 1/2 " steel flat snap hook that attaches to the I-Bolt to positively secure the vehicle.
• The I-Bolt has been certified to pull up to 1,500 lbs.

Applications:

• The I-Bolt is designed for use on vehicles with threaded holes in the front or rear bumper.
• It can be used to load vehicles onto roll back wreckers and frame racks.
• It can also be used to secure vehicles during transport.

Benefits:

• The I-Bolt provides a universal hook up solution for a wide range of vehicles.
• It is easy to use and does not require any special tools.
• The safety strap helps to secure the vehicle and prevent it from shifting during transport.
• The I-Bolt has been certified to pull up to 1,500 lbs.
