Rotary Barrel Pump

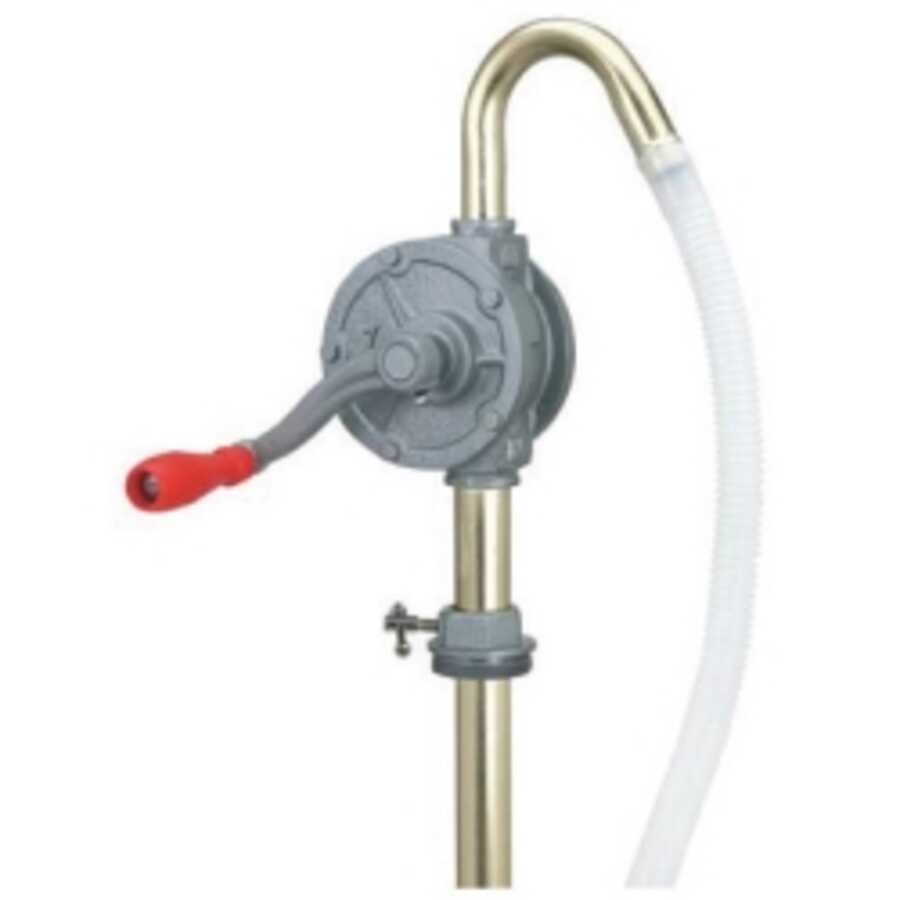

The AGS Company Rotary Barrel Pump LX-1318 is a heavy-duty, self-priming pump designed for transferring non-corrosive, petroleum-based fluids of light to medium viscosity. It is ideal for commercial, automotive, farm, and industrial applications. The LX-1318 fits 15 to 55 gal. drums (57 to 210 l) with standard 2" (50 mm) bung openings. It features a heavy-duty cast iron pump housing, zinc-plated, corrosion-resistant suction tube, and a self-priming cast iron draw head with S.S. filter screen and three heavy-duty vanes that allow for better draw and smooth delivery of fluids. The LX-1318 also has a non-slip, oil-resistant grip for comfort and safer operation. It comes with an adjustable 2" (50 mm) bung bushing and a 39" (1 m) flexible, oil-resistant discharge hose. The LX-1318 has a 1-1/4" (32 mm) inlet port and a 3/4" (19 mm) outlet port. It has a discharge capacity of one gallon (3.8 l) per 14 revolutions. The pump height is 4.3 ft (1.3 m). The maximum discharge height is 16.5 ft. (5 m). The net weight is 13 lb. (6 kg.).

Key Features:

• For transferring non-corrosive, petroleum-based fluids, of light to medium viscosity - like, Motor Oils, Heavy Oil, Transmission Fluid, Heating Oils and Machine Oil, etc., Kerosene or Diesel Fuel
• Ideal for Commercial, Automotive, Farm and Industrial Applications
• Fits 15 to 55 Gal. Drums (57 to 210 l) with Standard 2" (50 mm) Bung Opening
• Heavy-duty Cast Iron Pump Housing. Zinc Plated, Corrosion-resistant Suction Tube
• Self Priming. Cast Iron Draw Head with S.S. Filter Screen and three Heavy Duty Vanes allow better draw and smooth delivery of Fluids
• Non-slip, Oil Resistant Grip for Comfort and Safer Operation
• Comes with Adjustable 2" (50 mm) Bung Bushing and with 39" (1 m) Flexible, Oil-resistant Discharge Hose
• 1-1/4" (32 mm) Inlet Port and 3/4" (19 mm) Outlet Port
• Discharge Capacity : One Gallon (3.8 l) per 14 Revolutions
• Pump Height : 4.3 ft (1.3 m). Maximum Discharge Height : 16.5 ft. (5 m), Net Weight : 13 lb. (6 kg.)

Applications:

• Transferring non-corrosive, petroleum-based fluids of light to medium viscosity
• Commercial applications
• Automotive applications
• Farm applications
• Industrial applications

Benefits:

• Heavy-duty construction
• Self-priming
• Comfortable, non-slip grip
• Comes with adjustable bung bushing and discharge hose
• Discharge capacity of one gallon (3.8 l) per 14 revolutions
• Maximum discharge height of 16.5 ft. (5 m)
• Net weight of 13 lb. (6 kg.)
