The Tilt-Lok handle on Milwaukee's 6390-20 is the most revolutionary concept for circular saws in years. The eight position cushioned top handle adjusts to any cutting application maximizing comfort and control. Weighing in
at 10.4 pounds and delivering 3.25 maximum horsepower, this tool offers the best power to weight ratio in the industry. The blade can bevel to 50 degrees and offers superior visibility and a clear sight line from either side. Helical steel gears and a 22 amp switch are just two of the features that ensure the Milwaukee's reputation for durability.
Features
- New
exclusive Tilt-Lok
main handle adjusts to the work or most comfortable work position
- 10.4
pounds net weight - lightest 7-1/4 inch, 3.25 maximum horsepower saw
reduces operator fatigue, easier to handle
- 15
amp, 3.25 peak horsepower motor - most powerful circle saw cuts tough
materials including headers, microlams and wet lumber with ease
- Wide,
clear sight line - superior blade visibility from either side
Specifications
Voltage
|
120
AC/DC |
Amps
|
15.0
|
Blade
Size |
7-1/4
in. |
No
Load Speed |
5,800
RPM |
Spindle
|
5/8
in. |
Metal/Wood
Cutting |
Wood
|
Spindle
Lock |
Yes
|
Soft
Grip Handle |
Yes
|
Adjustable
Handle |
Yes
|
Blade
Position |
Right
|
Depth
of Cut at 90° |
2-7/16
in. |
Depth
of Cut at 45° |
1-13/16
in. |
Depth
of Cut at 50° |
1-11/16
in. |
Electric
Brake |
No
|
Cord
Type |
9
ft. Fixed |
Construction
Type |
Double
Insulated |
Length
|
13-3/4
in. |
Tool
Weight |
10.4
lbs. |
Shipping
Weight |
17.5
lbs. |
Includes
- Circular
Saw Blade
- Hex
Blade Wrench

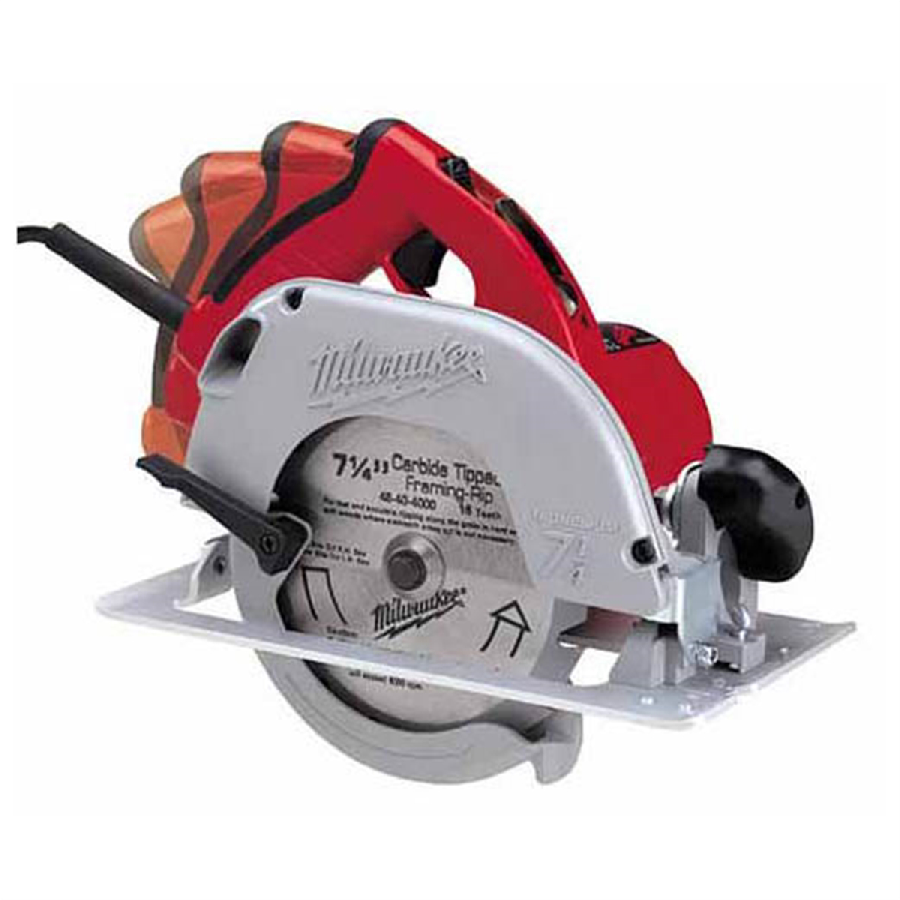

Milwaukee Electric 6390-21 Tilt-Lok 7-1/4 in. Circular Saw with Case
