GM MDI 2 Kit

The GM MDI 2 is the next generation Global Diagnostic Interface tool for both current and future vehicles, and extending through future vehicle protocols and architectures.
It’s a compact communication module with increased processing power and security that manages the transfer of data between a vehicle’s onboard ECU network with an auxiliary CAN bus.
The GM MDI 2 replaces the MDI introduced in 2007, for Pass-Thru programming and offers faster programming speed than the MDI.
The MDI 2 can be used to perform Pass-Thru programming on all GM vehicles built since 1996 and into the future. Servicing the current generation vehicles will require the diagnostic software, GDS2, Global Diagnostic System 2 running on a local PC device while the MDI or MDI 2 is connected to the vehicle. The MDI 2 connects to the vehicle via the J1962 connector using a DLC cable. Connection between the MDI 2 and the PC can be accomplished via standalone (USB) and the dealership network (CAT5).
Service

• Multilingual support hotline for hardware problems and question
• Exchange process (within the warranty period) when your hardware develops a fault, reducing downtime
• 2 year supplier warranty

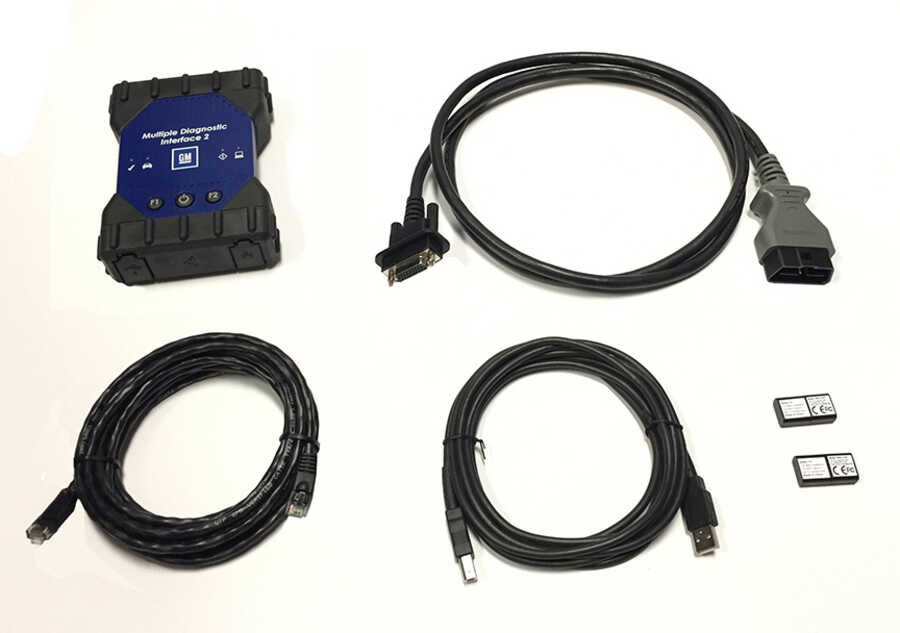

Components:
- MDI device
- DLC Cable
- USB Cable
- Ethernet Cable

Non-stock item, manufacturer drop ship; please email service@toolsource.com for cost and lead time before ordering. This is a non-quoted item and the price fluctuates; we have to get pricing each time an order is placed.

Image is representative of product, but may vary from actual item.
