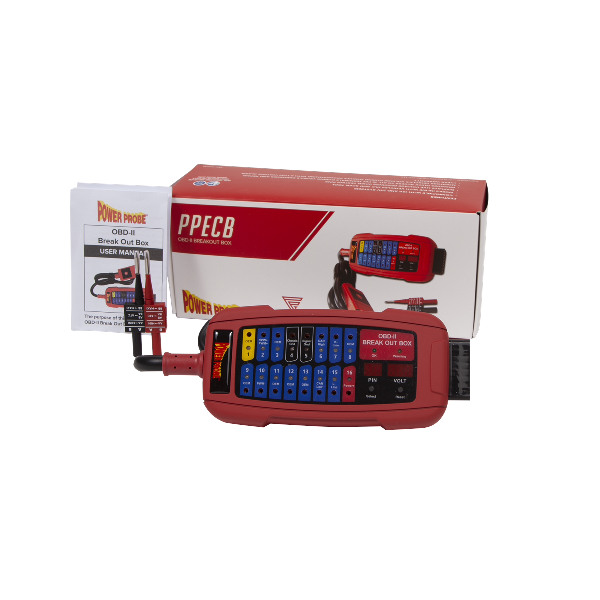

OBD-II Breakout Box Power Probe

Features and Benefits:

• Test DLC (OBD port) for any abnormalities such as shorting and reverse polarity at the pins before connecting other diagnostic tools into the DLC
• Provides live display of communicating signals (eg. communication protocol signals) on assigned pins for quick pointing of faults without having to utilize a measurement tool (digital volt ohmmeter).
• Quickly access all 16 pin connections during repair and diagnosis of the vehicle
• Monitor the input voltage of the OBD during module programming with low voltage detection
• 2 pin adapters included

The Power Probe OBD-II Breakout Box is a CAN bus circuit tester applicable for 12 and 24 Volt systems. This tool tests the vehicle’s Data Link Connector (OBD port) for any abnormalities, such as shorting and reverse polarity at the pins. If Shorts or reverse polarity is present, then connecting the Power Probe OBD-II first will prevent harm to other diagnostic equipment (Sanners). This tool also provides a live display of communicating signals (eg. communication protocol signals) on assigned pins for quick pointing of faults without having to bring out a measurement tool (digital volt ohmmeter). Additionally, the tool will provide quick access to all 16 pin connections during repair and diagnosis of the vehicle. It will also monitor the input vo
