Pro-Link Cartridge - Volvo VECTRO II

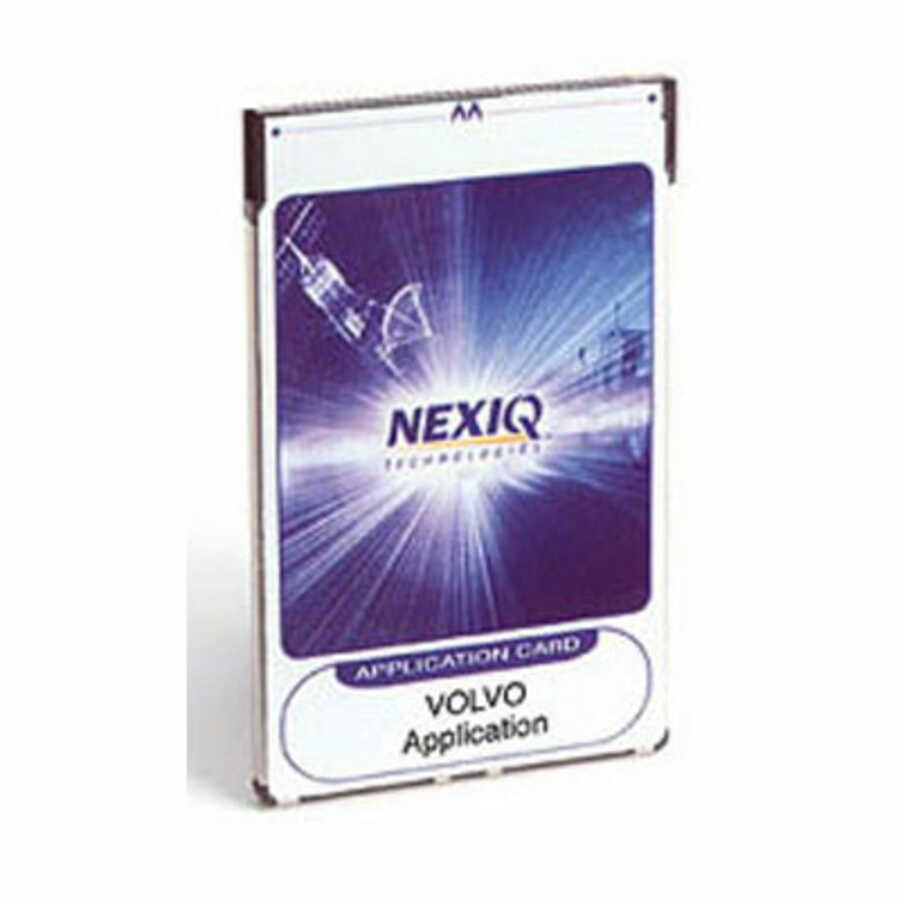

Pro-Link Application Card for the MPC, Pro-Link Plus and Pro-Link Graphiq - Volvo VECTRO II

SYSTEMS COVERED:

• Volvo VECTRO II engine
• Volvo VECTRO II vehicle
• Volvo VECTRO II instrument cluster
• Volvo VECTRO II lamp driver
• Volvo VECTRO II SRS airbag
• 99 instrument cluster

The Volvo VECTRO II application software provides advanced capabilities for the engine, chassis, instrument cluster, lampdriver and airbag To address advanced capabilities provided by Volvo, the MPC uses PCMCIA cards. The card is plugged into the back of the unit, and provides additional functions unique to Volvo. The following list contains all of the features and functions available with this card.

Features:

Displays parameter values in English or Metric.

Custom data list provides the ability to create a custom data list from all application parameters (i.e. parameters from the engine and vehicle applications can be combined).

Snapshot modes for recording data triggered by a specific diagnostic code, any diagnostic code, or any key.

Print data to the Pro-Link Printer.

Includes: Application card, Manual

Application Features:

• Displays diagnostic codes in Volvo format, VECTRO II INSTRUMENT CLUSTER, VECTRO II VEHICLE.
• Displays ECU configuration information.
• Displays EEPROM data.
• Password-protected reprogram EEPROM function VECTRO II SRS AIRBAG.
• Performs compression testing and manual cylinder cutout test.
• Performs gauge exercise tests.
• Performs interactive tests.
• Performs warning lamp, telltale warning, and icon tests.
• Reprogram EEPROM function VECTRO II LAMP DRIVER, VECTRO II ENGINE
