Pro-Link iQ Cat Engines with ACERT Technology

2003 - 2009
The Pro-Link iQ(TM) Cat(R) Engines with ACERT(TM) Technology Application provides reprogramming and diagnostic capability for Cat(R) ACERT(TM) electronic systems. With the combined power of the easy-to-use Pro-Link iQ(TM) and the functionality of the Cat(R) ACERT(TM) application, service bay technicians experience unprecedented out-of-the-box productivity.

Benefits:

Easy to use
- Reduces training required for set-up and/or software usage
Portable
- More portable than a laptop providing the Mobile Maintenance operator with the ideal solution
No interface cable setup

No messing with cables and adapter setup

Basic Functions:

Read Fault Codes
Clear Fault Codes
View/Reset Trip Data
View Engine Data

Advanced Features:

Histogram:

Engine RPM vs. Time (%)
MPH vs. Time (%)

Calibrations:

Boost Calibration
Timing Calibration

Diagnostic Tests:

Injector Solenoid Test
Injector Actuation Pressure Test
Intake Valve Actuator Solenoid Test
Cylinder Cutout Test

Special Tests:

Engine Shutdown Output
Tachometer Circuit
Auxiliary Brake
PTO Switch On Lamp
Three Speed Fan Slip OutputvOn/Off Cooling Fan
Lockout Solenoid
Shift Solenoid
55 MPH VSP/Speedometer
Engine Running Output
Intake Valve Actuation Pressure Solenoid
Starting Aid Output
Retarder/Exhaust Brake
Warning Lamp
Low Oil Pressure Lamp
Low Coolant Level Lamp
High Coolant Temperature Lamp
PTO Active Output

System Troubleshooting Setting:

Cooling Fan
Dyno Mode
Idle Shutdown Timer
Powertrain Data Link

Display and Change Configurable Parameters:

ECU RatingvECU Identification
Maintenance Parameters
System Parameters
Selected Engine Rating
Cruise Control Parameters
Parameter Lockout
Exhaust Brake Options
Unprogrammed ParametersvSecurity Access Parameters
Vehicle Speed Parameters
Passwords
Data Link Parameters
Idle Parameters Old PTO
Smart Idle Parameter
Vehicle Activity Report Parameters
Trip Parameters
Dedicated PTO Parameters
Timer Parameters
Engine Monitoring Parameters
Engine/Gear Parameters
Output Selections

Manufacturer drop ship; please email service@toolsource.com for lead time.

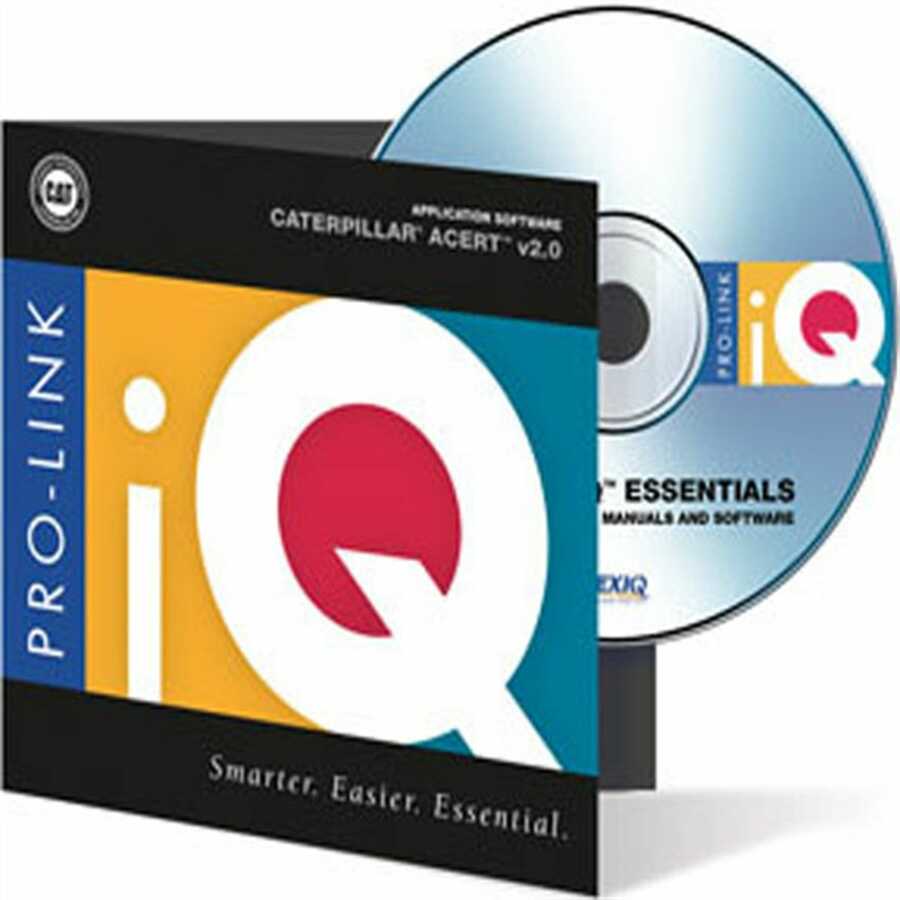

NEXIQ 880024 Pro-Link iQ(TM) Cat(R) Engines with ACERT(TM) Technology

Other products
NEXIQ Technologies Homepage
Model: 122650
Shipping Weight: 1lbs
Manufacturers Part #: 880024
Manufactured by: NEXIQ Technologies
Also Known As: MPS880024, MPS-880024
