What's the difference between a seal puller and a seal installer, and when would I use each?

A seal puller is designed to remove old, worn-out seals without damaging the surrounding components. They often feature hooks or jaws to grip the seal and extract it. A seal installer, on the other hand, is used to press new seals into place, ensuring they are properly seated and aligned to prevent leaks. For example, the Old Forge Tools 7019 Heavy Duty Seal Puller helps remove stubborn seals from transmissions and axles, while an axle seal installer like the Mopar Essential Tools version ensures the new seal is installed to the correct depth on Dana axles.

What are some common mistakes to avoid when removing seals, and how can I prevent them?

A common mistake is damaging the housing or shaft while trying to remove a stubborn seal. Always use the correct size puller and avoid excessive force. Another mistake is scratching or nicking the sealing surface, which can cause leaks even with a new seal installed. Applying a small amount of penetrating oil can help loosen a stuck seal, and using a seal puller with adjustable heads, like those offered by Lisle, can provide better leverage and reduce the risk of damage. Always inspect the area for damage before installing a new seal.

What types of seal pullers are available, and which is best for different situations?

There are several types of seal pullers, each designed for specific applications. Hook-type pullers are versatile for general seal removal. Slide hammer pullers provide extra force for stubborn seals. Jaw-type pullers offer a secure grip on the seal's outer edge. For deeply recessed seals, specialized tools like the Old Forge Tools 7019 Heavy Duty Seal Puller are recommended. Consider the accessibility and the seal's location when choosing the right puller. Adjustable seal pullers, like those from Lisle, can adapt to various seal sizes, making them a versatile option.

How do I choose the correct size seal installer for my application?

Choosing the correct size seal installer is critical for proper seal seating and preventing leaks. The installer's outer diameter must match the seal's outer diameter, and the inner diameter must clear the shaft or bore it's being installed into. Some installers, like the OTC Kent-Moore J37073, are designed for specific applications (e.g., input shaft seals on TRW steering gears), ensuring a precise fit. Always consult the vehicle's service manual or the seal manufacturer's specifications to determine the correct size and type of installer needed. Using an incorrectly sized installer can damage the seal or the surrounding components.

Are seal removal and installation tools different for import versus domestic vehicles?

While the basic principles of seal removal and installation are the same, some vehicles, particularly imports, may require specialized tools due to unique designs or limited access. Seal dimensions and tool clearances can vary significantly between makes and models. For instance, some import vehicles might have seals located in tight spaces requiring slim or offset pullers. Always verify that the tool is compatible with the specific make and model of the vehicle you are working on. Some kits, like certain seal installer sets, may include a wider range of adapters to accommodate both metric and imperial sizes.

What safety precautions should I take when using seal removal and installation tools?

Safety is paramount when working with seal removal and installation tools. Always wear safety glasses to protect your eyes from debris. Gloves are also recommended to protect your hands. When using striking tools like slide hammers, be mindful of your surroundings and ensure you have a clear workspace. If using heat to loosen a seal, exercise extreme caution and wear appropriate heat-resistant gloves. Dispose of used seals properly, as they may contain hazardous materials. Never exceed the recommended force or pressure when installing seals, as this could damage the seal or surrounding components.

Can I use a general-purpose tool for seal removal, or do I need specialized tools?

While some general-purpose tools might work in certain situations, specialized seal removal and installation tools are generally recommended for a safer and more effective job. General tools can damage the seal housing or the shaft, leading to costly repairs. Specialized tools are designed to grip the seal securely and apply force evenly, minimizing the risk of damage. For example, using a screwdriver to pry out a seal can easily scratch the sealing surface, whereas a dedicated seal puller, such as the Lisle Adjustable Seal Puller, is designed to prevent such damage. For installation, using a driver matched to the seal size ensures even pressure.

How does heat affect seal removal, and when is it appropriate to use it?

Heat can be used to help loosen stubborn seals by expanding the surrounding metal, making it easier to remove the seal. However, it should be used with caution, as excessive heat can damage the seal housing or other nearby components. A heat gun is generally preferred over an open flame for more controlled heating. Before applying heat, ensure that there are no flammable materials nearby. Always wear heat-resistant gloves and eye protection. After applying heat, allow the area to cool slightly before attempting to remove the seal to avoid burns. Consider penetrating oil first before resorting to heat.

Search

Manufacturers [more]

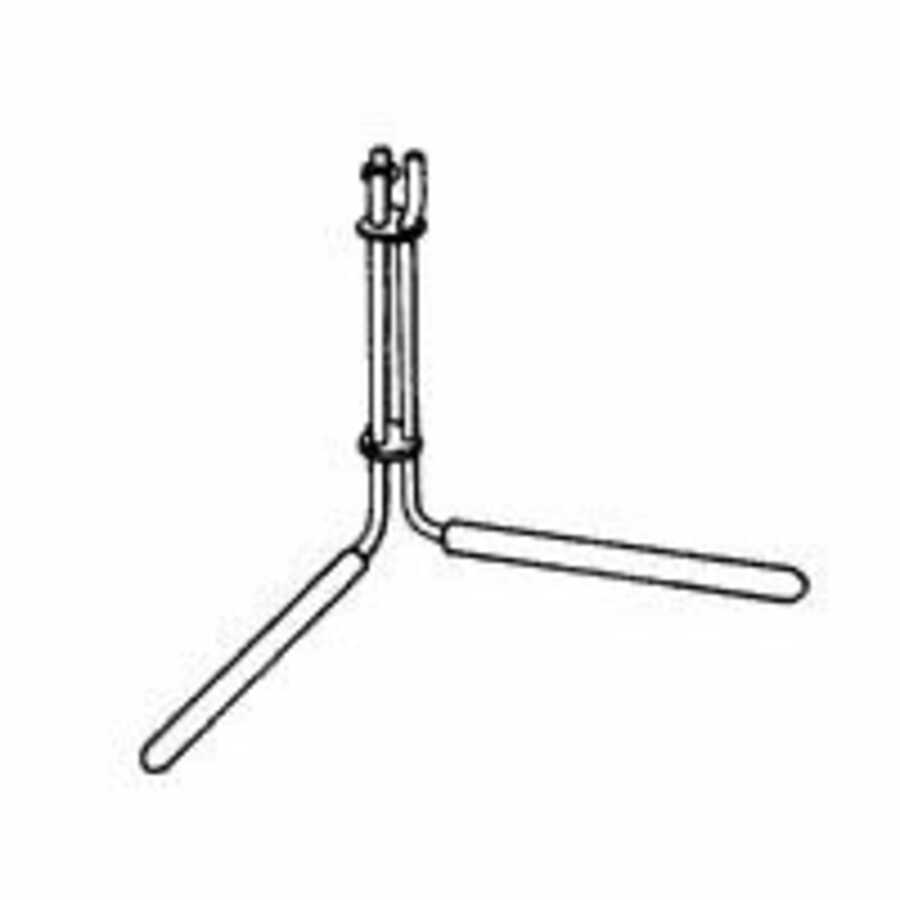

OTC Tools and Equipment | MEL1033 | Rod Seal Installation Tool

Name: Rod Seal Installation Tool
Brand: OTC Tools and Equipment
SKU: 130155
Price: 55.13 USD
Availability: Discontinued
Rating: 3 (1 reviews)

larger image

Specifications

Manufacturer: OTC Tools and Equipment
Model Number: MEL1033
Product Name: Rod Seal Installation Tool
Weight: 0 lbs
Dimensions: 0 x 0 x 0 inches

Key Features

Specifically engineered for efficient and accurate rod seal installation.
Designed to minimize damage to seals during the fitting process.
Supports the precise seating of seals within hydraulic cylinder glands.
Constructed for reliable performance in various service and maintenance applications.

Applications

The OTC Tools MEL1033 Rod Seal Installation Tool is utilized across a range of mechanical and hydraulic systems. It is suitable for installing internal seals and U-cup piston rod seals in hydraulic cylinders found in automotive, marine, and industrial equipment. This tool is frequently employed for maintenance on components such as bucket cylinders, skid steers, loaders, and backhoes, ensuring proper seal placement to prevent fluid leaks.

Benefits

Extends Seal Life: Facilitates gentle and correct installation, significantly reducing the risk of seal damage, which contributes to longer operational life for hydraulic components.
Prevents Leaks: Ensures seals are precisely seated within their grooves, crucial for maintaining system integrity and preventing costly fluid leaks.
Enhances Efficiency: Streamlines the hydraulic cylinder rod seal fitting process, saving technicians valuable time and effort during installation and repair tasks.
Protects Components: Guards against accidental damage to rods and housings that can occur during manual or improper seal installation.
Improves Reliability: Contributes to the consistent and accurate performance of hydraulic systems by ensuring seals function as intended.

Other products
OTC Tools and Equipment Homepage
Model: 130155
Manufacturers Part #: MEL1033
Manufactured by: OTC Tools and Equipment
Also Known As: OTMEL1033
