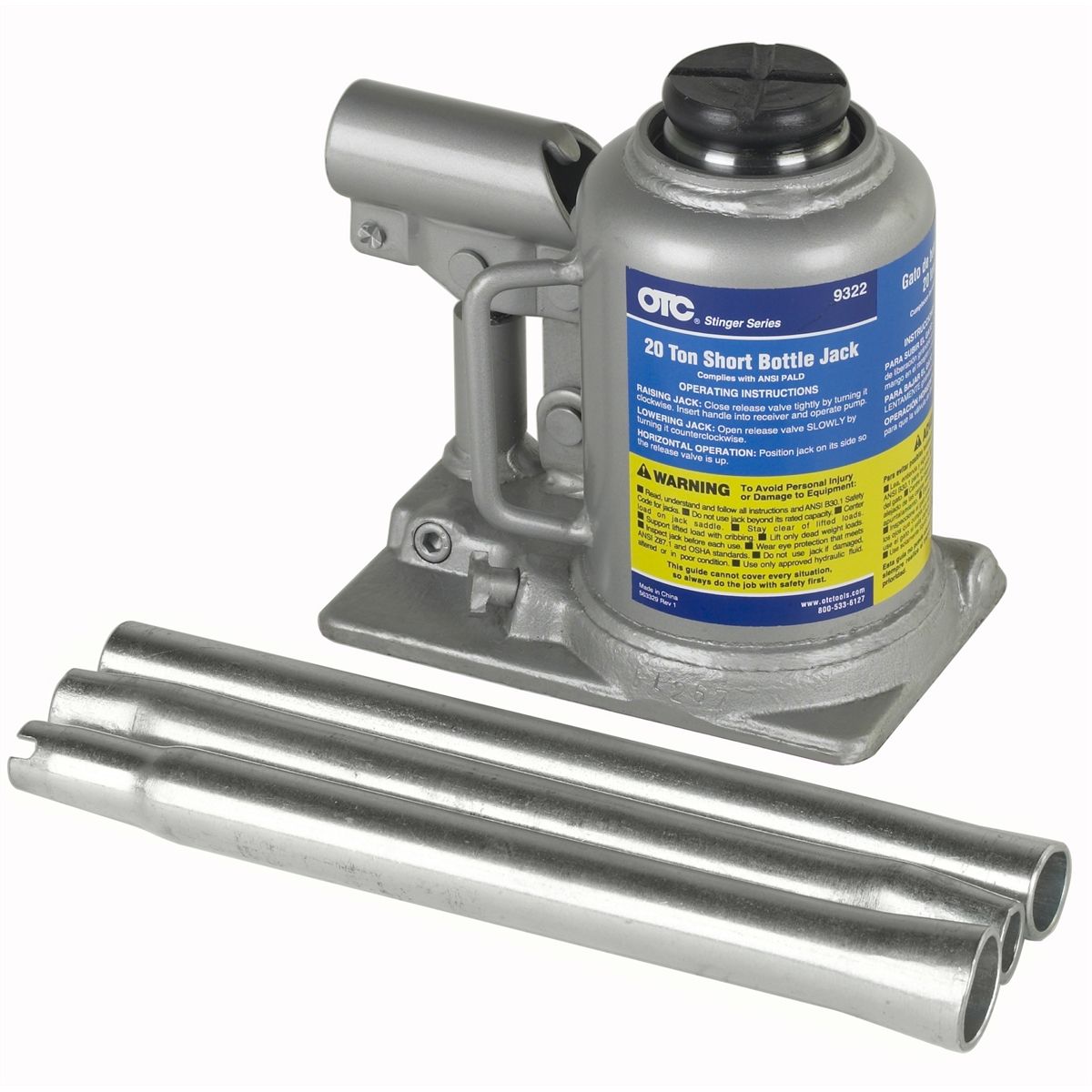

20-Ton Short Bottle Jack

Features and Benefits:

• Forged base and cylinder to ensure strength and eliminate leaks
• Chromed pump piston and ram for additional rust resistance
• In-line design for increased ease of use in positioning and operation
• Includes free seal kit with each unit to extend product life
• ANSI/PALD compliant

Bottle jacks are used for a wide range of lifting applications, both in the shop and for roadside service. They provide a high level of lifting capacity in a very compact and portable unit.

Stroke - 3-7/16"
Retracted Height min. - 7-3/16"
Length of Screw Extension - 1-11/16"
Height with Screw Extension - 12-5/16"
Pump Strokes to Extend Piston One Inch - 25
Saddle Dia. - 2-1/8"
Base Size - 7" x 4-11/16"
Carry Handle - Yes
Weight - 20.9 lbs.
