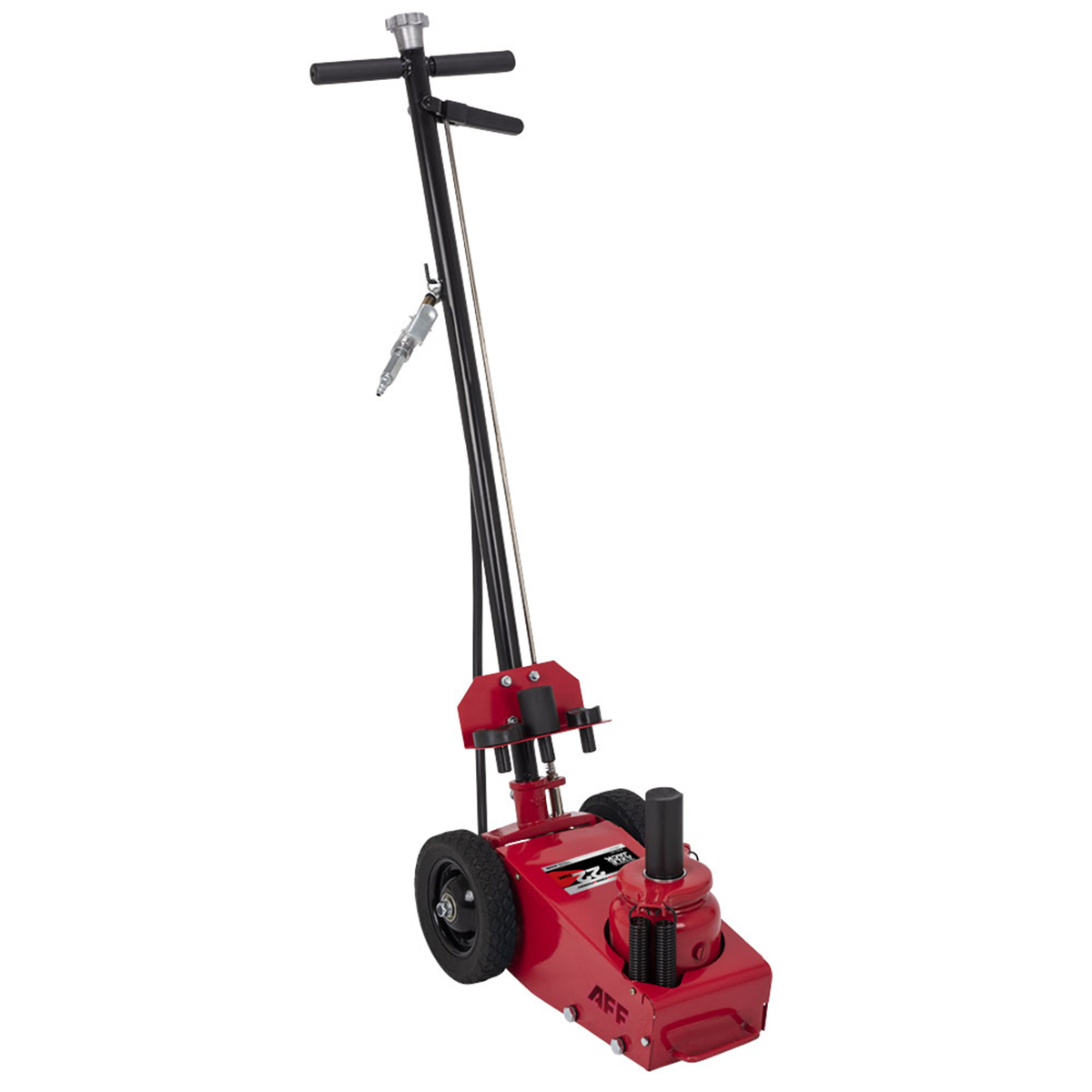

There isn't much that you won't be able to lift with this SUPER DUTY 2 Stage Air Hydraulic Jack, Heavy Duty Trucking, Agricultural, Construction, Military, even Aircraft - this does it all!
- The piston head seal design is borrowed from Industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions
- The extra long 138cm (54") handle can be locked in 3 positions for easy positioning of this jack in hard to reach places. Integral Descent Metering maintains a controlled and safe lowering of the load
- Single piece base construction provides superior strength for increased load stability
- Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring
- Air assisted lowering speeds up ram retraction
- Built in overload safety valve prevents damage to unit due to excessive load
- Comes with 2 extensions (75mm/3" + 45 mm1.75") and saddle adapter
- Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under even the harshest conditions
Specifications:
- Capacity: 80 / 50 Tons
- Ram Lift: 3.03" / 5.79"
- Low Height: 9.06"
- High Height: 13.39" / 17.32"
- High Height w/ Ext.: 19.14" / 23.07"
- Working Air Pressure: 116 to 174 psi
- Ship Weight: 240 lbs.
FREE FREIGHT* Applies to direct shipping points within the 48 continental US states. Rural Area Surcharge may apply.
- *An additional $40.00 will apply to all residential deliveries of heavy-equipment.
- *For lift-gate service, add $135.00.
Manufacturer drop ship
American Forge & Foundry AFF 549SD 80 / 50 Tons 2 Stage Air / Hydraulic Axle Jack
